9 . Remove the CODER DISK and 2 GEAR WHEELS.
10 . Remove the 4 SCREWS.
11 . Remove the CENTER HOUSING.
12 . Remove the 2 SCREWS and the MOTOR.
13 . Remove the SCREW and the LATCH
DRIVE RING
SHAFT ROLLERS (3)
BEARING ROLLERS (3)
RETAINERS (8)
ROLLERS (8)
ZERO
LEVER
SPRING

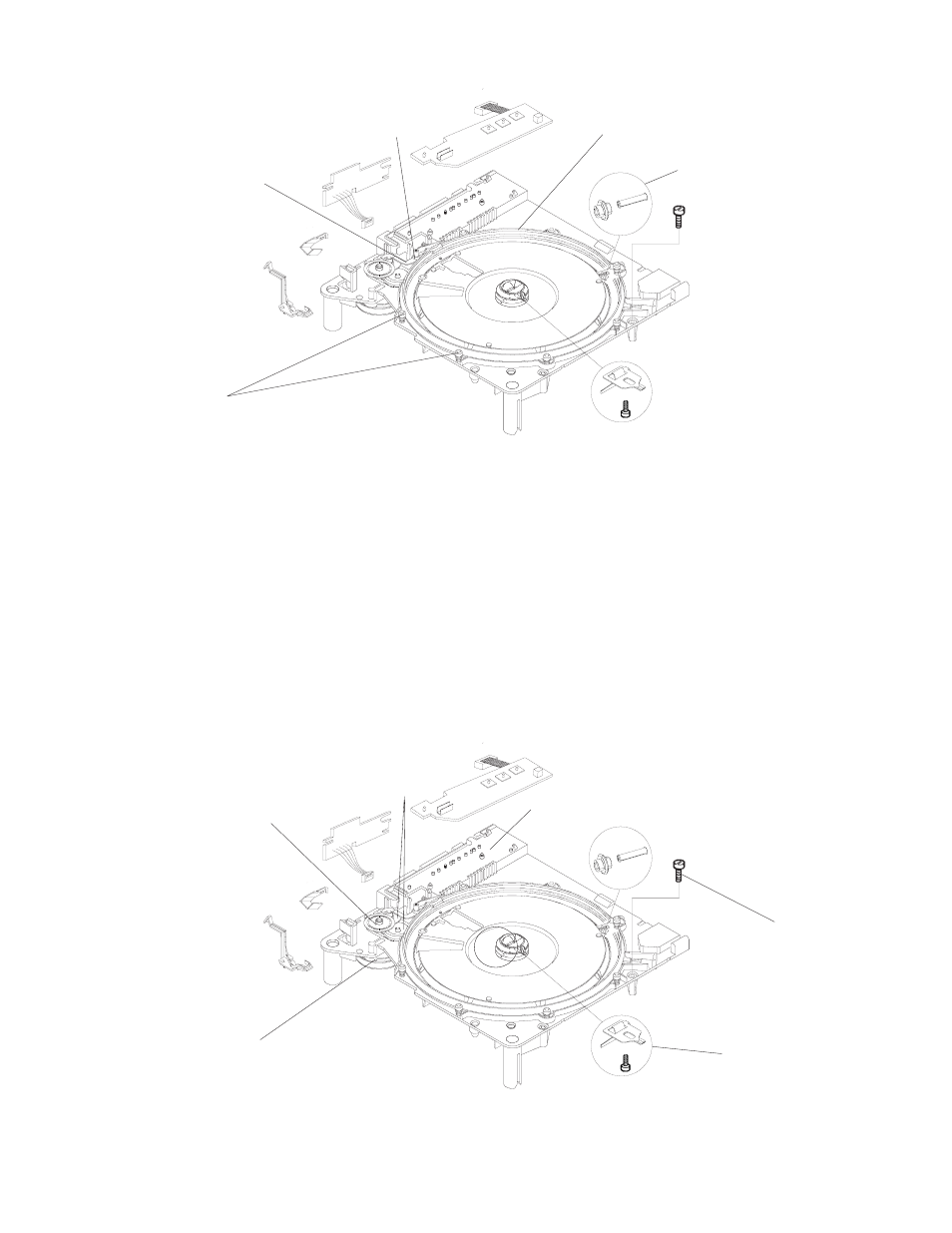

figure 4-7
CODER DISK
GEAR
WHEELS
(2)
SCREWS (4)
LATCH/SCREW
MOTOR
SCREWS (2)
CENTER HOUSING
figure 4-8
SM2547-1 Service Manual
