FAN, KEYBOARD PCB and TRAY MOTION PCB
1 . Remove the UPPER HOUSING. See page 4-1.
2 . Remove the CENTER HOUSING. See page 4-4.
3 . Disconnect the FAN MOTORS.
4 . Remove the FAN.
5 . Disconnect the KEYBOARD PCB.
6 . Disconnect the TRAY MOTION PCB.
NOTE:
Do not clean the FAN with compressed air because the rotary wings would be demaged!

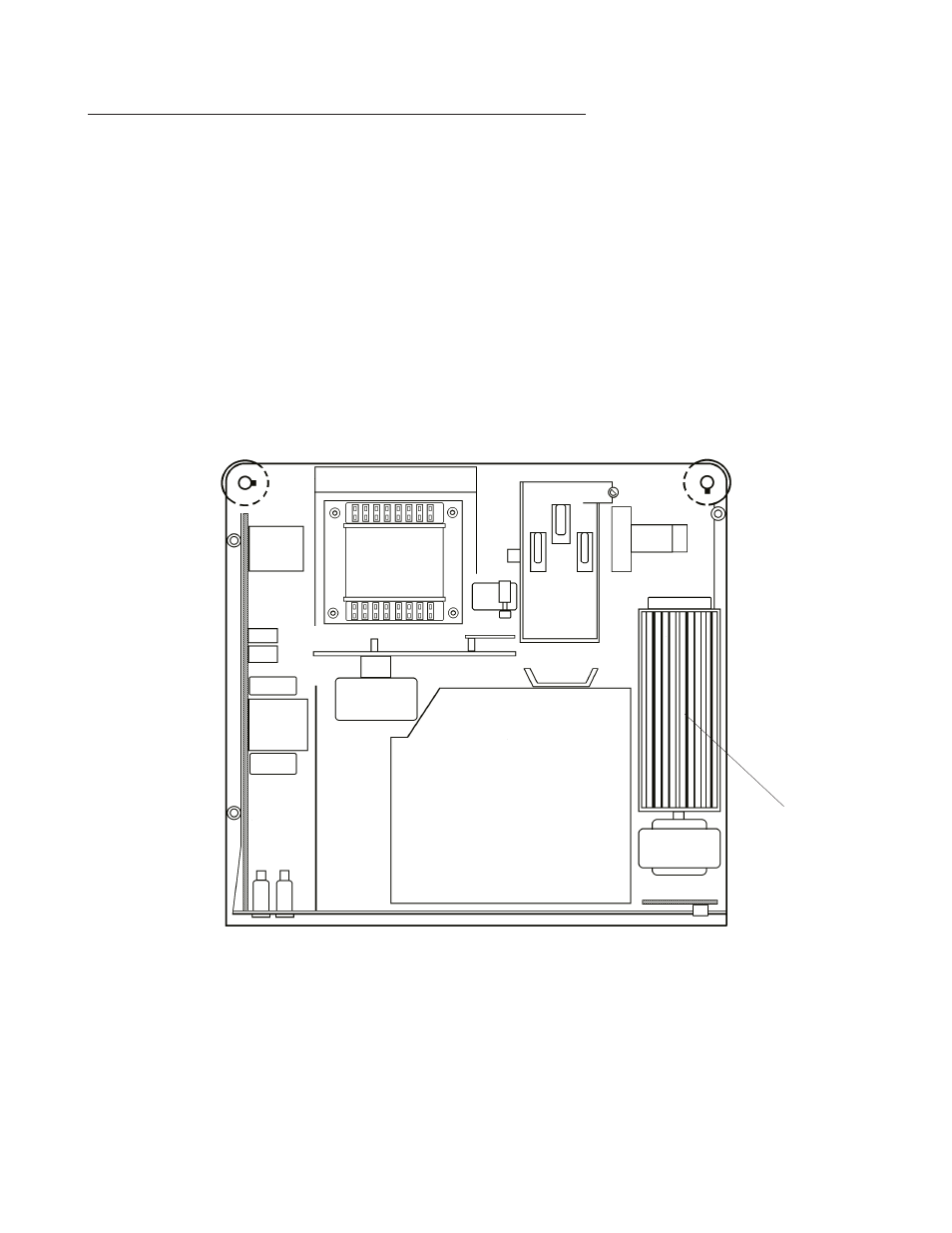

FAN
figure 4-12
