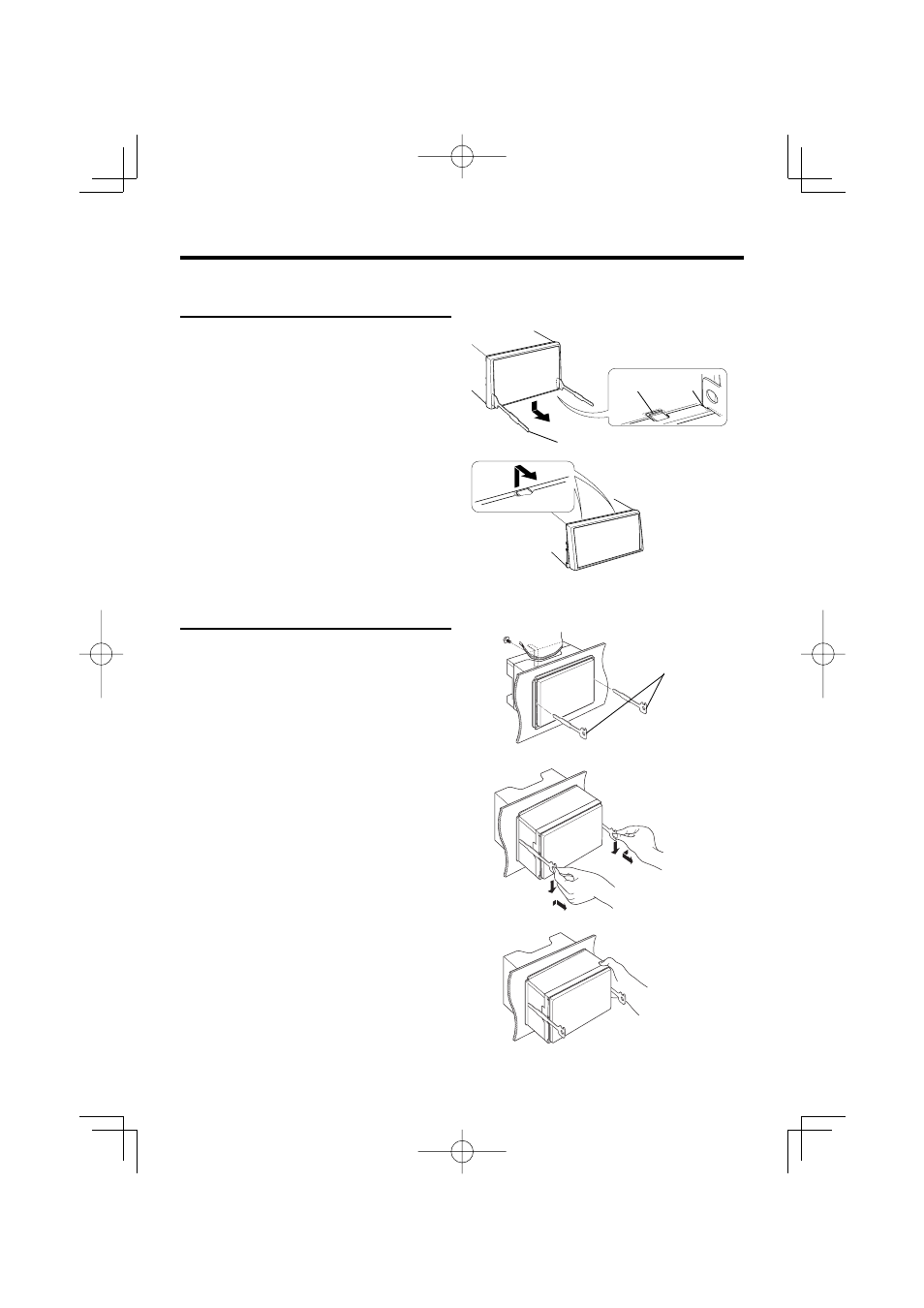

Removing the Hard Rubber Frame
(escutcheon)
1 Engage the catch pins on the removal tool 7 and
remove the two locks on the lower level.
Lower the frame and pull it forward as shown in
the figure.
2 When the lower level is removed, remove the
upper two locations.
⁄
• The frame can be removed from the top side in the same
manner.
Removing the Unit
1 Refer to the section Frame> and then remove the hard rubber frame.
2 Remove the Hex-head screw with integral washer
(M4X8) on the back panel.
3 Insert the two removal tools 7 deeply into the
slots on each side, as shown.
4 Lower the removal tool towards the bottom, and
pull out the unit halfway while pressing towards
the inside.
¤
• Be careful to avoid injury from the catch pins on the
removal tool.
5 Pull the unit all the way out with your hands,
carefully not to drop it.
Accessory7
Accessory7
Lock Catch
Removing the Unit
