English
-3
CHANGER 2 TO CHANGER 1 CHANGER 1 TO CONTROLLER TO H/U TO
SWITCH AUX
OFF ON
SWITCH PROTOCOL
O N
IN AUX

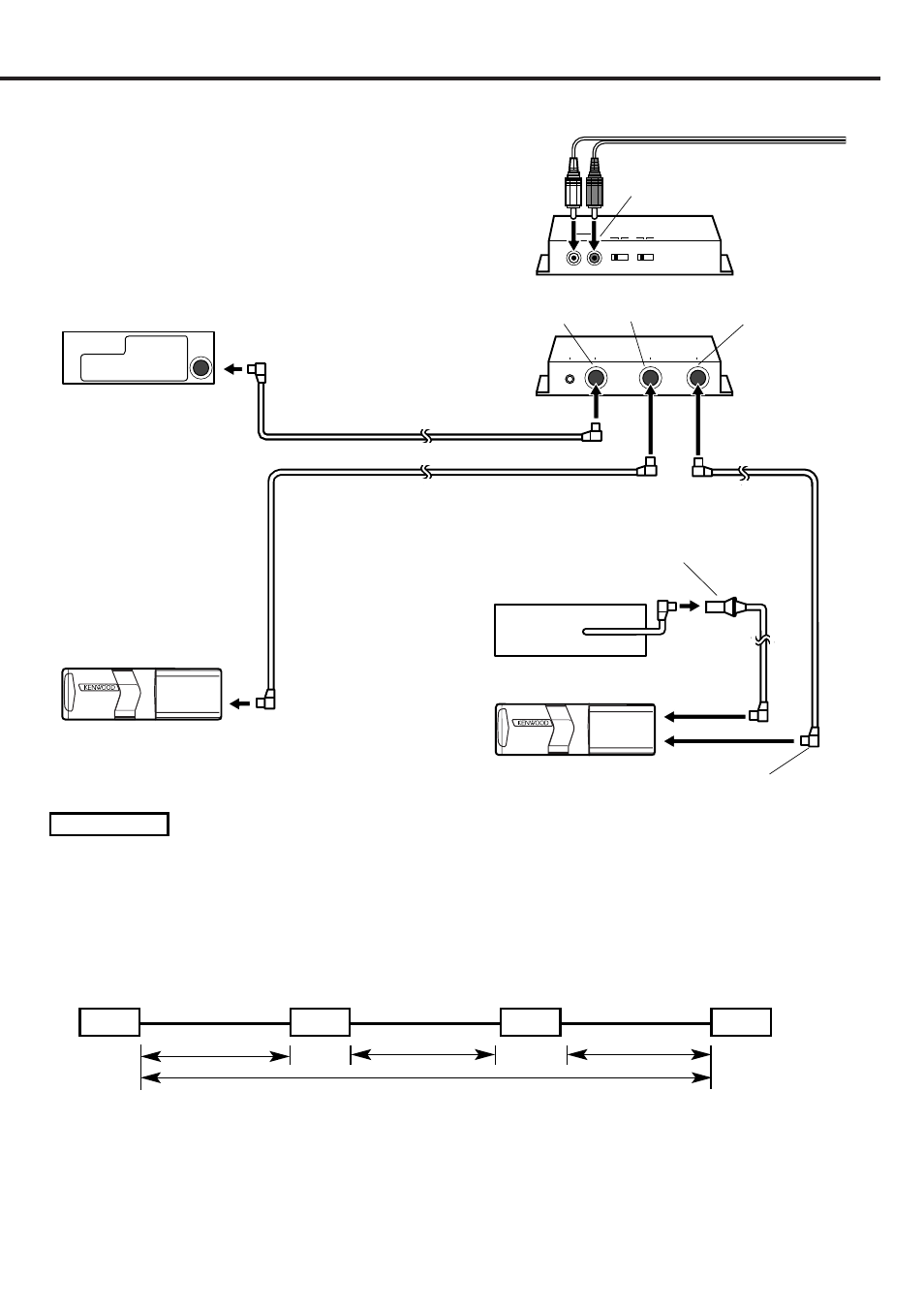

If you want to connect a stack CD changer
Connection cable (supplied with the stack CD changer)
Disc player
Stack CD changer
Extension cable (CA-C2E:Optional)
• Connect it to a centre unit belonging to Group C or Group D.
• Connect the stack CD changer to the terminal labelled TO CHANGER 2.
• The KDC-C810 cannot be connected.
• Up to two disc changers can be connected.
• The O-N switch on the disc changer and the disc player should be set to “N“. If you set it to “O“, the
equipment will not function correctly.
• The total length of the cable between the units should not be more than 13m.
• If the voltage is low and the internal temperature of the switching unit is low, switching may fail to work
properly in some cases.
• The AUX switch on the stack CD changer should be switched “OFF“ before using the equipment. The
AUX terminal on the KCA-S210A switching unit is the one that should be used.
2CAUTION
TO
H/U
TO
CHANGER 1
TO
CHANGER 2
Connection cable (supplied with the Disc changer)
Connection cable3
Centre unit
Disc changer
Switching unit1
(Front side)
Switching unit1
(Rear side)
To the external units
Not more than 13m
Centre unit KCA-S210A Stack CD Changer Disc Player
AV
IN
