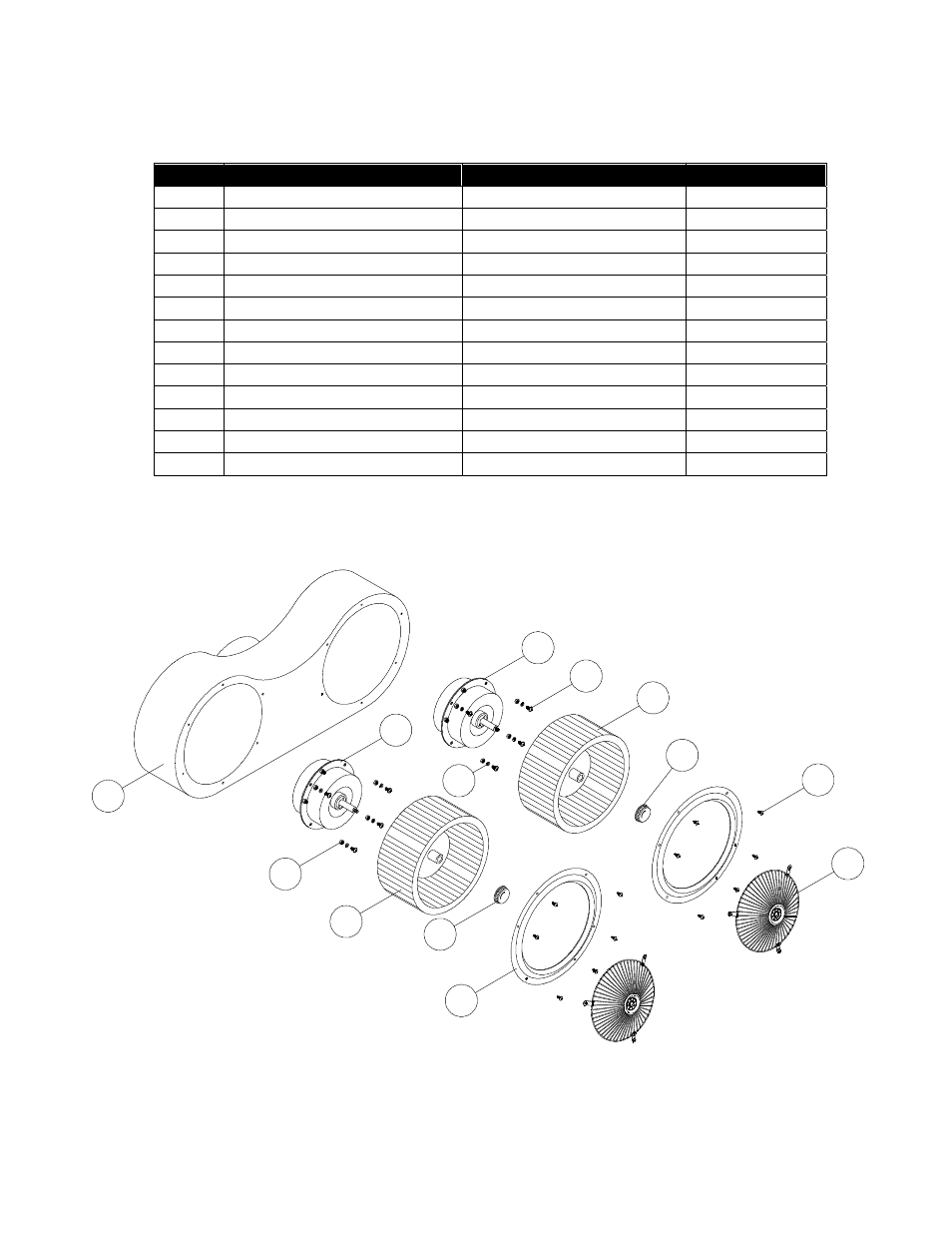

Ensamblado del Ventilador
NO.
DESCRIPCIÓN
MODELO/TAMAÑO
PIEZA NO.
1 Cámara
de
Aire
CH176-6.1
2 Tapa
del
Tornillo
CH176-6.2
3
Jaula de Ardilla Izquierda
CH176-6.3
4 Tuerca
Izquierda
CH176-6.4
5
Rejilla de Flujo de Aire
CH176-6.5
6
Tornillos (3/16" x 3/8")
CH176-6.6
7 Tuerca
Derecha
CH176-6.7
8
Jaula de Ardilla Derecha
CH176-6.8
9 Empaque
CH176-6.9
10
Tornillos (3/16" x 3/8")
CH176-6.10
11 Motor
Izquierdo
CH176-6.11
12 Motor
Derecho
CH176-6.12
13
Pantalla de Seguridad
CH176-6.13
10
11
2
9
8
3
4
7
5
6
1
12
13
