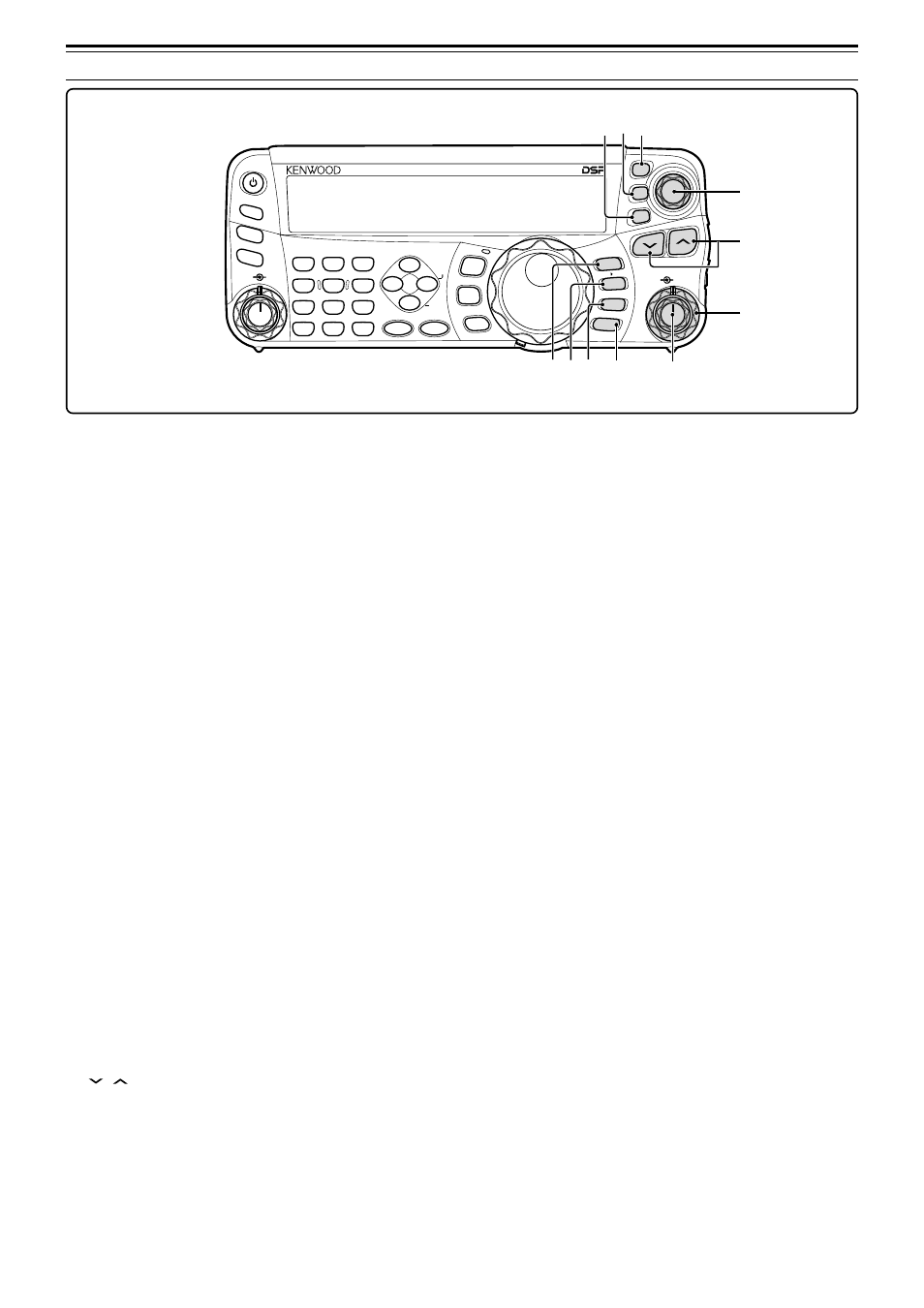

3 GETTING ACQUAINTED
@9 QMI/ M.IN key
Press to store data to the Quick Memory. Press and
hold to store the current operating frequencies and
other data to the Memory channel.
#0 QMR/ M
s s s s s VFO key
Press to recall data from the Quick Memory
{page 55}. Press and hold to transfer the Memory
Channel frequencies and other data to the VFO.
#1 A/B / M/V key
Press to select either VFO A or VFO B {page 18}.
Press and hold to toggle between Memory and VFO
modes.
#2 A=B/ SPLIT key
Press to duplicate the data in the currently selected
VFO to the other VFO {page 35}. Press and hold to
enter split-frequency operation which allows you to
use different transmission and reception frequencies
{page 30}.
#3 MULTI control
In VFO mode, rotate to step the operating frequency
up or down {page 34}. In Memory Channel mode,
rotate to select a Memory Channel {page 51}.
Also, used for selecting Menu numbers when
accessing the Menu mode {page 22} and as a
selector to choose settings for various functions
activated by Remote Control panel keys.
#4 IF SHIFT control
Rotate to shift the center frequency of the IF passband
either lower or higher, to remove interference {page
45}.
#5
/ key
Normally, press to step through all the Amateur radio
bands consecutively {page 19}. Also used to make
selections from the Menu {page 22} and to check the
Start and End frequencies of the Scan function
{page 53}. When both the split-frequency and the
frequency lock function are actived, press and hold to
perform the TF-SET function {page 30}.
#6 CL key
Press to clear the RIT/ XIT frequency to zero
{pages 35, 37}.
#7 XIT key
Press to turn the XIT (Transmit Incremental Tuning)
function ON or OFF {page 37}. When the XIT
function is ON, the XIT icon appears.
#8 RIT key
Press to turn the RIT (Receive Incremental Tuning)
function ON or OFF {page 35}. When the RIT
function is ON, the RIT icon appears.
#9 RIT/ XIT control
When the RIT/ XIT function is ON, turn to adjust the
offset frequency. The RIT/ XIT offset frequency
appears on the sub-display {pages 35, 37}.
