Using the Long Roll Accessory
D-32 August 2001
6. If the marked frame is not aligned with the right edge of the aperture plate,

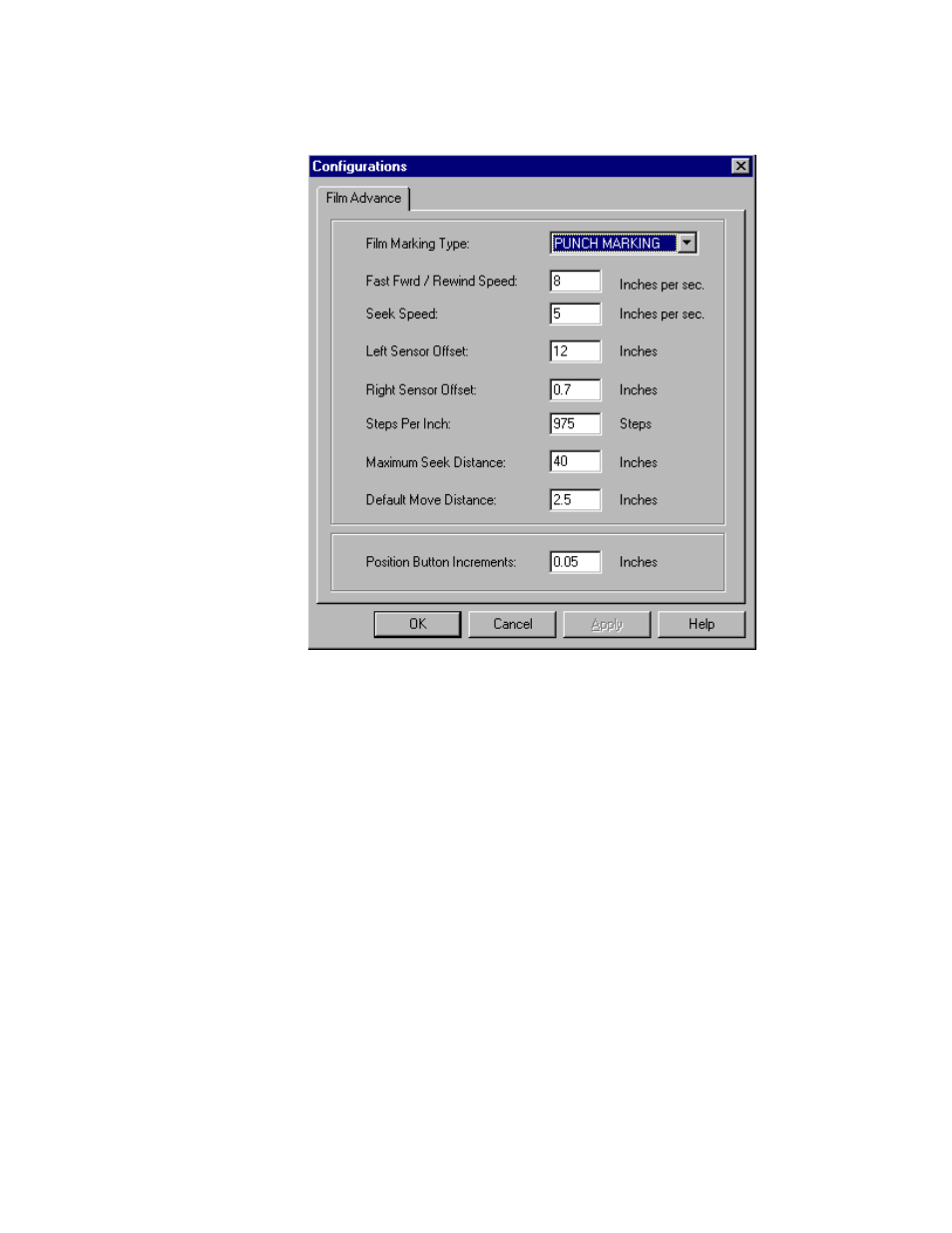

select View>Configurations.
a. If the film is moving from left to right, change the Left Sensor Offset:
If the center of the frame is beyond the right edge of the aperture plate,
decrease the Left Sensor Offset.
If the center of the frame has not reached the right edge of the aperture
plate, increase the Left Sensor Offset.
b. If the film is moving from right to left, change the Right Sensor Offset:
If the center of the frame is beyond the left edge of the aperture plate,
decrease the Right Sensor Offset.
If the center of the frame has not reached the left edge of the aperture
plate, increase the Right Sensor Offset.
