Installing the aperture plate – Kodak HR 500 User Manual
Page 78
Using the Long Roll Accessory
D-12
August 2001
Installing the Aperture Plate
IMPORTANT: To power on the scanner without error, an aperture plate must be
installed, latched, and locked.
1. Choose the aperture plate corresponding to the film format you will be
scanning.

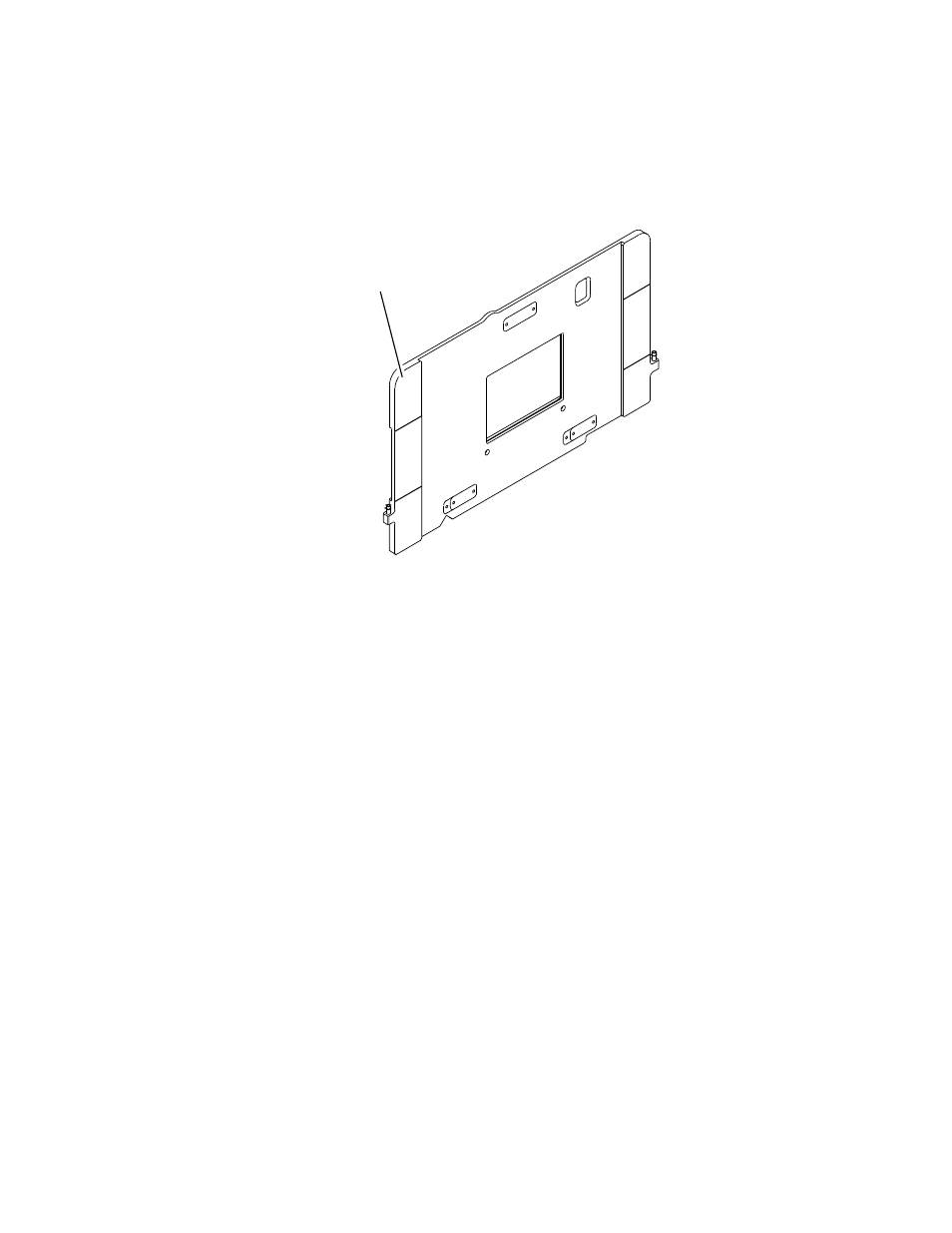

2. Position the aperture plate with the lettering (example: 120/220) visible on the
left side.
CAUTION: Installing an aperture plate backwards may result in a
damaged light bar.
3. Make sure the gate actuator is unlatched for film loading.
P192_1544AC
120/220
P192_1544ACA
lettering on left side
