Page 11

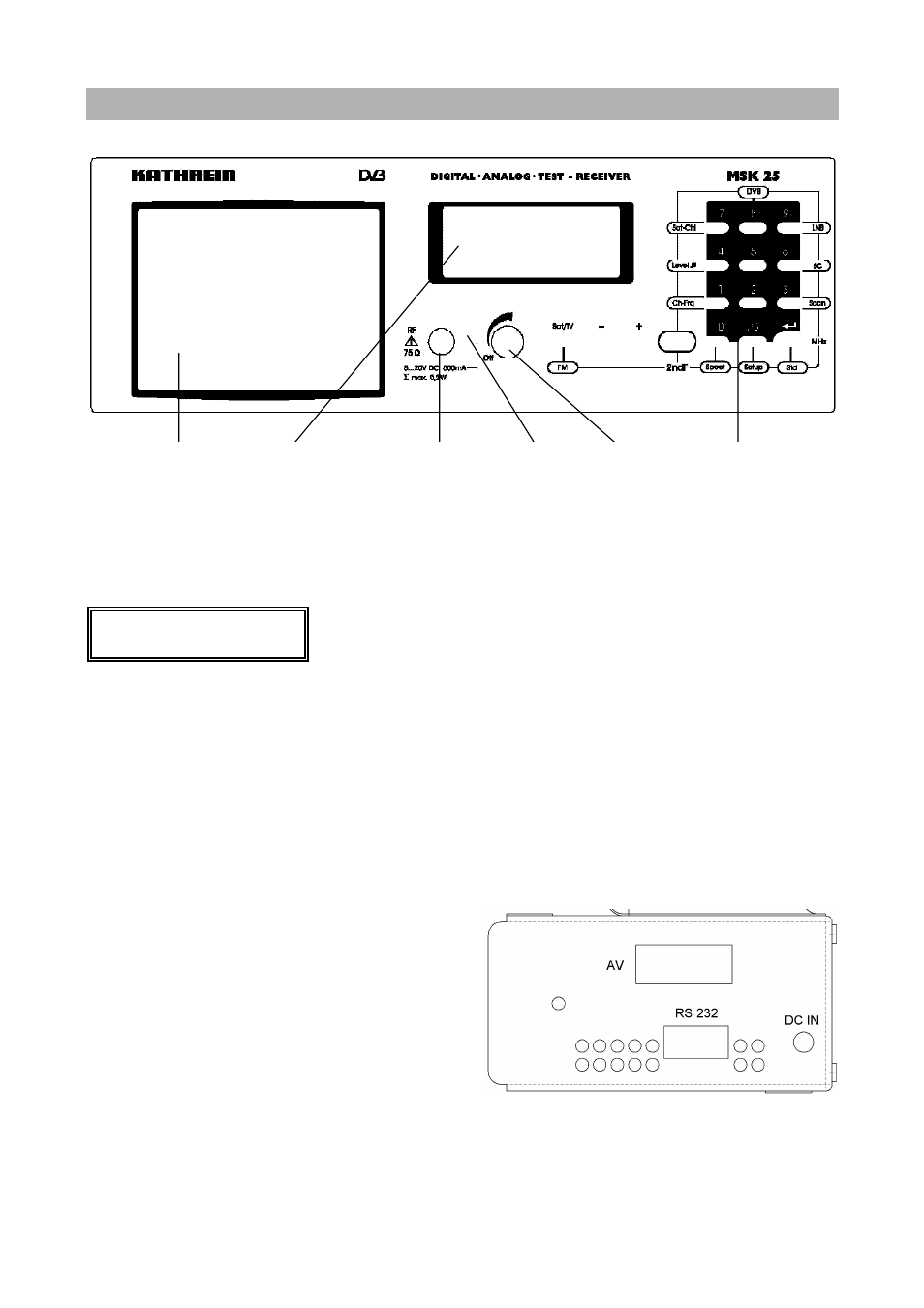

Control Elements and Indicators

Control Elements

The following is displayed on the two-row 16 digit LC display, depending
on the mode:

• the channel set,
• the frequency set,
• the function called up,
• the mode,
• the measured level
• the measured value

TFT Colour Screen

The colour screen has a diagonal of 4“, a resolution of 238 x 480 pixel,
and a luminance of 250 cd/m².

Connections (right hand side)

(AV) Scart connections without inputs, RS 232 interface,,
supply voltage DC – for the power supply unit delivered only

FR: 954.0 MHz

SAT

LEV: 40.0 dBuV D

TFT colour screen

LC display

HF input socket

LED volume control

Keyboard
