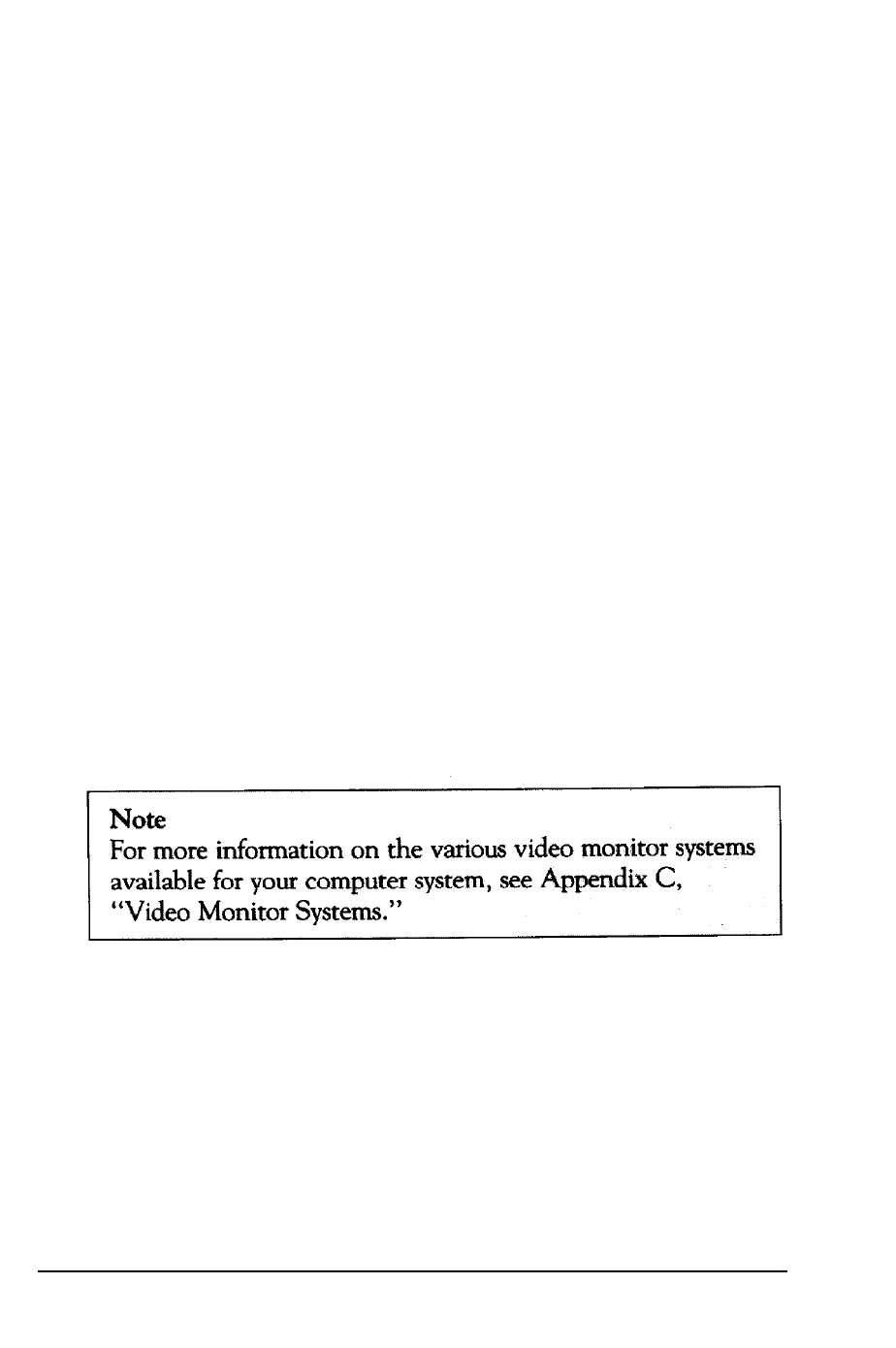

background image

3

Connecting a Monitor

The video display monitor is the device used by the computer

to communicate with you. Your software will use the screen to

display information, such as prompts, text, graphics (charts and
pictures), etc.

Several types of monitor are available as options. A typical

video display system provides a high resolution monochrome
(green or amber screen) screen display. Your computer can be

used with either monochrome, color video monitors, EGA or

VGA monitors.

In addition to the display monitor itself, the video system

includes a video controller board. This board generates the

letters, numbers, and graphics symbols displayed on the
monitor screen.

Connectors are provided for the display type that is supported
by the board (monochrome, RGB color, high resolution EGA,
VGA etc.). Certain boards support more than one type of
display, and may provide a switch to select either color or

monochrome modes.

The procedure you use to connect your monitor to the

computer depends on the type of monitor you have. See your
monitor manual for detailed instructions, or follow these
general guidelines:

1.

Place your monitor on top of or near the computer. It is

easiest to connect the monitor cable if you are facing the

back panels of both the monitor and the computer.

1-4

Setting Up Your System
