Connections – Kenwood KDV-412 User Manual
Page 74
–
+
–
+
–
+
–
+
PRK SW
FRONT L
FRONT R
REAR L
REAR R
VIDEO
OUT
74 KDV-412
Connections

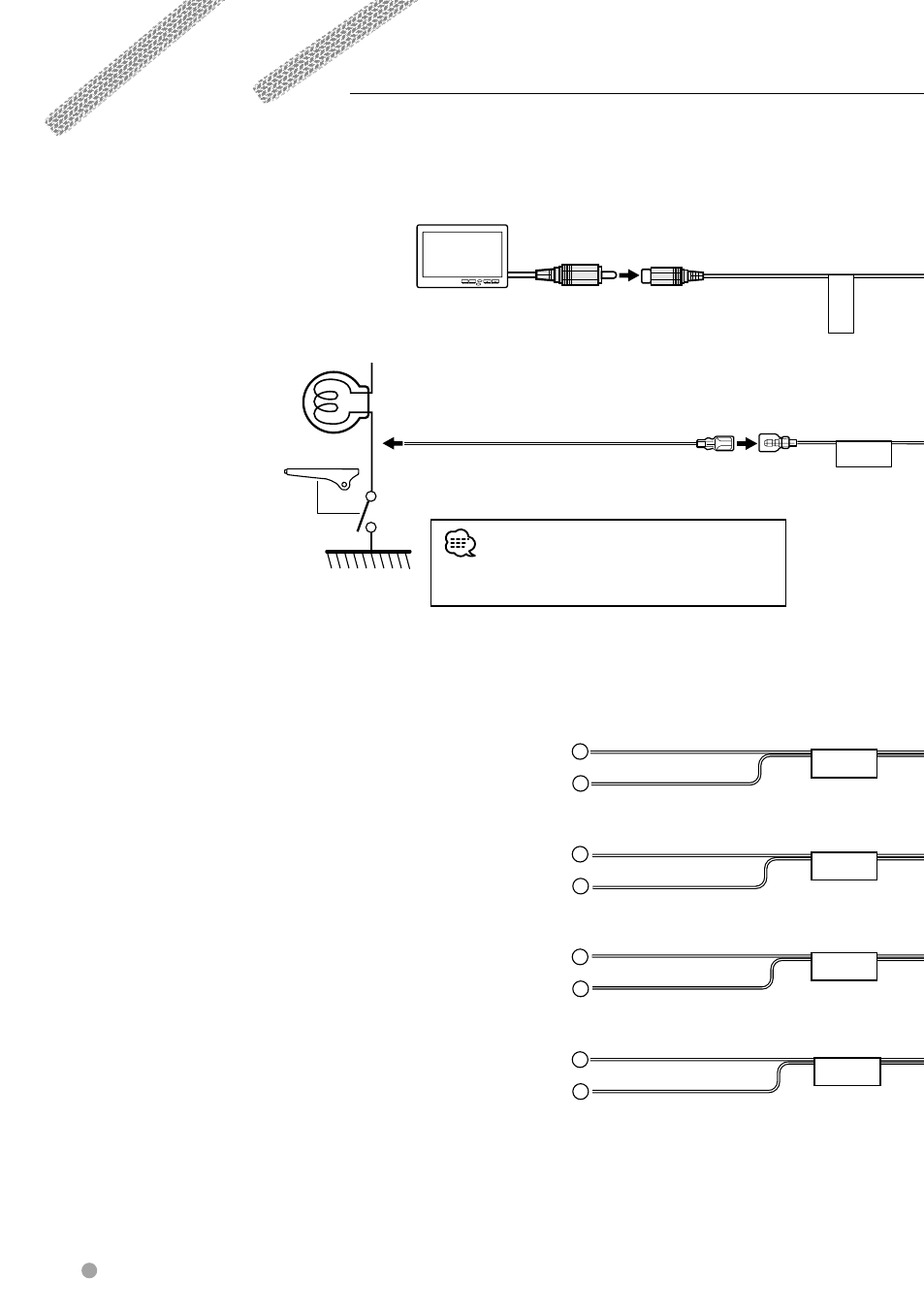

To front left
speaker
To front right
speaker
To rear left
speaker
To rear right
speaker
White/Black
White
Gray/Black
Green/Black
Purple/Black
Gray
Green
Purple
Television monitor, etc
(optional accessory)
Parking sensor wire
Junction cable
(Light Green)
(Accessory
8)
For the sake of safety,
be sure to connect the
parking sensor.
• Connect to the vehicle's parking brake detection
switch harness using the supplied relay connector.
Visual output
(Yellow)
Parking sensor wire
Detection cable
(Light Green)
