Kyocera DP-3600 User Manual
Page 157
Cleaning
4-13
2.

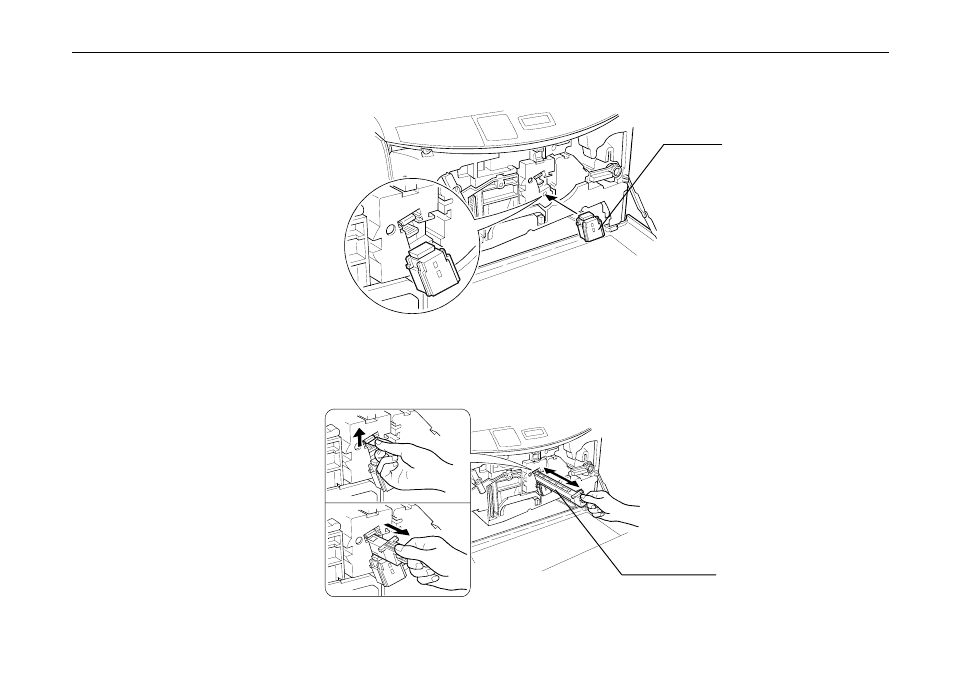

Attach the grid cleaner to the printer with the pad facing up as shown in the figure.
3.
After attaching the grid cleaner, slightly lift the main charger unit and repeat the action of slowly
pulling the cleaning knob in and out at least five times. This will clean the grid inside the main
charger unit.
Grid Cleaner
(3) Pull in and out
at least five times
(1) Lift slightly
(2) Pull as far as
possible
Main Charger Unit
