23 EN
No Surround Back speaker With Surround Back speaker
L Front Left speaker
SW Subwoofer
C Center speaker
R Front Right speaker
LS Surround Left speaker
RS Surround Right speaker
BS Surround Back speaker
LB Surround Back Left speaker
RB Surround Back Right speaker
Ambience effects
This model is equipped with listening modes that allow you to enjoy an enhanced sonic ambience with a variety of video
sources.
In order to obtain the optimum effect from the surround modes, make sure to input the proper speaker settings beforehand.
^
Surround modes
Manufactured under license from Dolby Laboratories. “Dolby”, “Pro
Logic” and the double-D symbol are trademarks of Dolby Laboratories.
“ D T S ” , “ D T S - E S E x t e n d e d
Surround” and “Neo:6” are
trademarks of Digital Theater
Systems, Inc.
RS LS
C
L
R
SW
TV / SCREEN

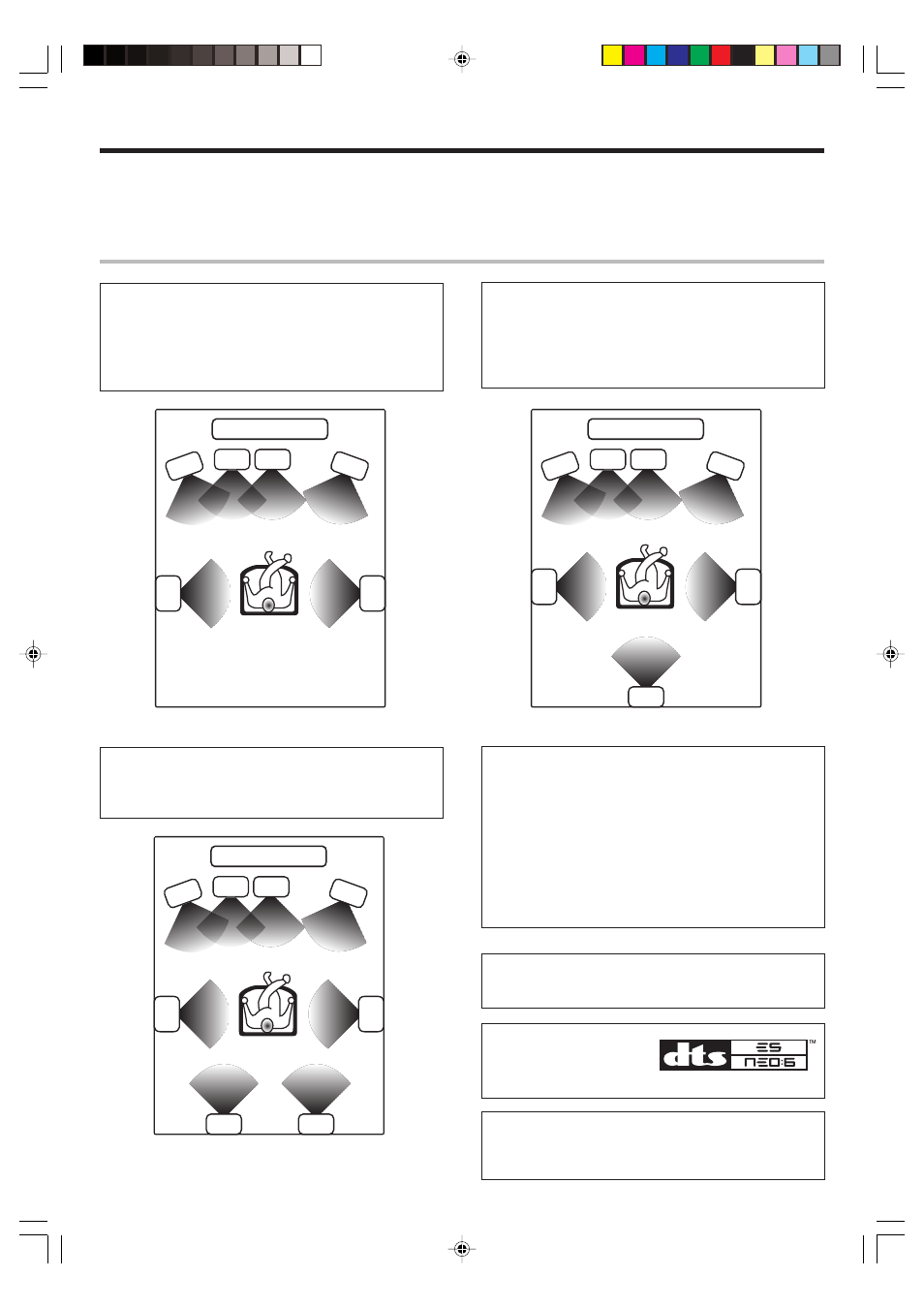

The below speaker placements are for 5.1 channel surround sound
system which are;
• Dolby Digital
• Dolby Pro Logic II
• DTS
• DSP
• DVD 6-channel (KRF-V5080D only)
BS
RS LS
C
L
R
SW
TV / SCREEN
Note
LFE = Low Frequency Effects. This channel delivers separate non-
directional bass signals to the subwoofer for more dynamic deep
bass sound effects.
The below speaker placements are for 7.1 channel surround sound
system which is;
• Dolby Pro Logic IIx
The below speaker placements are for 6.1 channel surround sound
system which are;
• Dolby Digital EX
• DTS - ES
• Neo:6
RB LB
RS LS
C
L
R
SW
TV / SCREEN
With Surround Back Left and Right speakers
