Cleaning the feed module – Kodak A-61514 User Manual
Page 26
A-61514 September 2004
23
7. Inspect the rollers.
If the separator roller tires show signs of wear or damage, replace the tires
or the separator module.
8. Insert the separator module and align the shaft ends.
9. Press until the separator module clicks into place.
10. Go to the next section to clean the feed module.
Cleaning the feed module

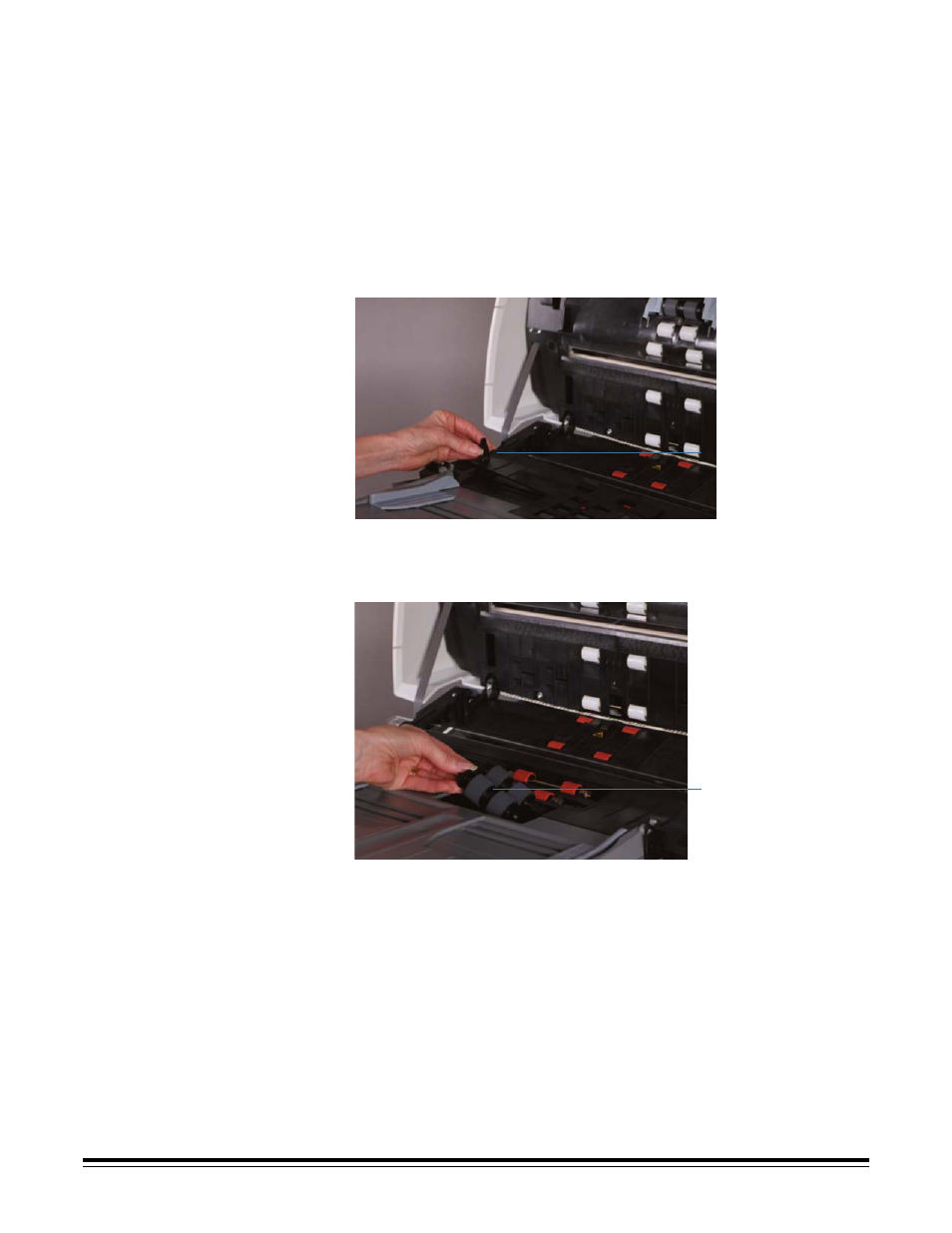

1. Push against the raised edge on the left side of the front drive roller cover
to the side and pull the cover up and out to remove it.
NOTE: You may need to lift the input tray slightly to remove the front
roller cover.
2. Remove the feed module by pushing it to the right and lifting it out.
Front roller cover
Feed module
