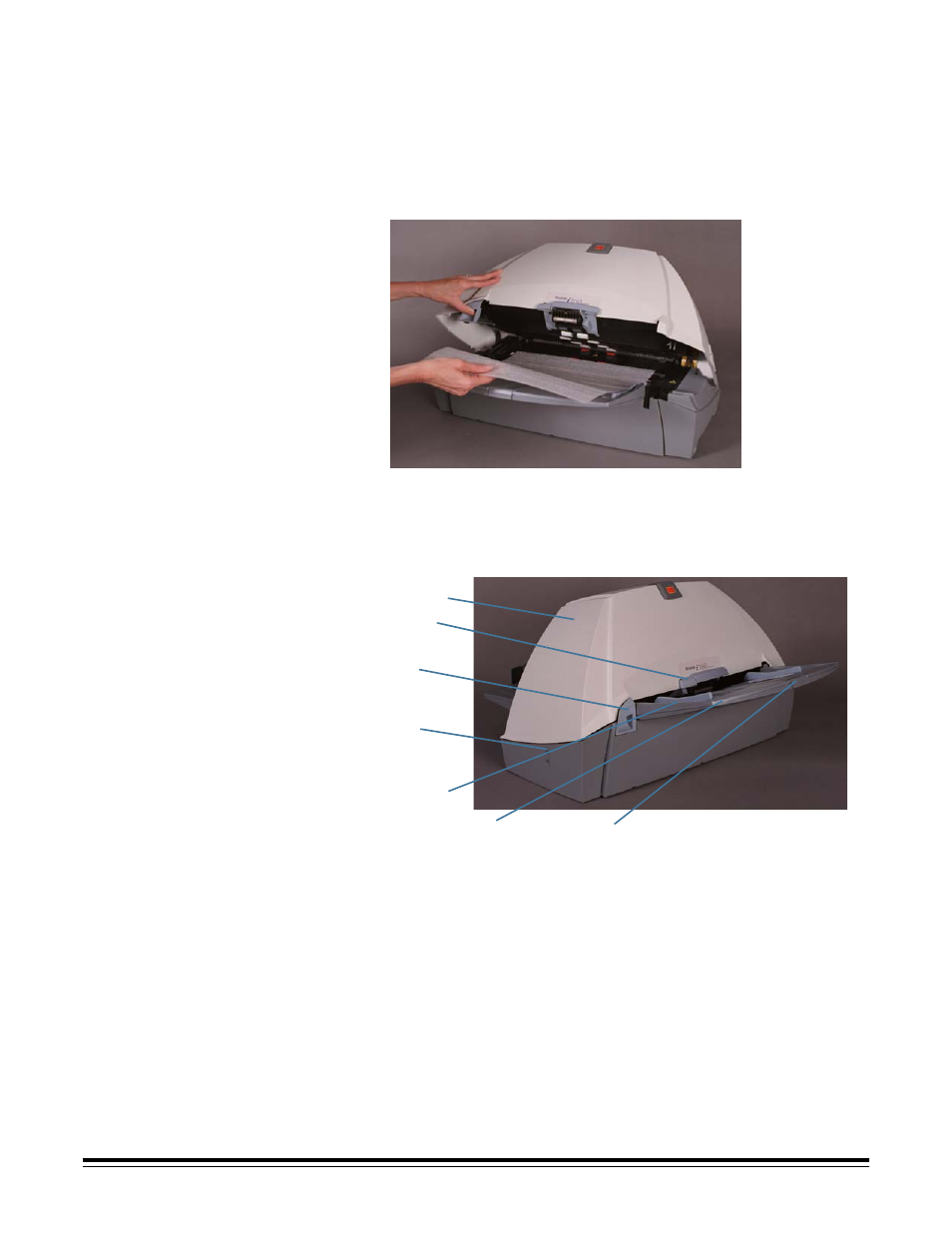

Removing the
foam sheet
The scanner is packed with a foam sheet inside to protect the rollers during
shipping. This foam sheet must be removed before you can begin scanning.
1. Lift the scanner out of the box and place it on a stable, level work surface
that is capable of supporting it.
2. Lift up the scanner door release to unlatch and open the scanner door.
3. Remove the foam sheet.
4. Lower the scanner door and press it down firmly until it latches into place.
Scanner components
Front
1 Scanner door
2 Gap release lever
3 Scanner door release
4 LEDs
5 Paper guides
6 Input tray
7 Input tray extender
1
2
3
4
5
6 7
