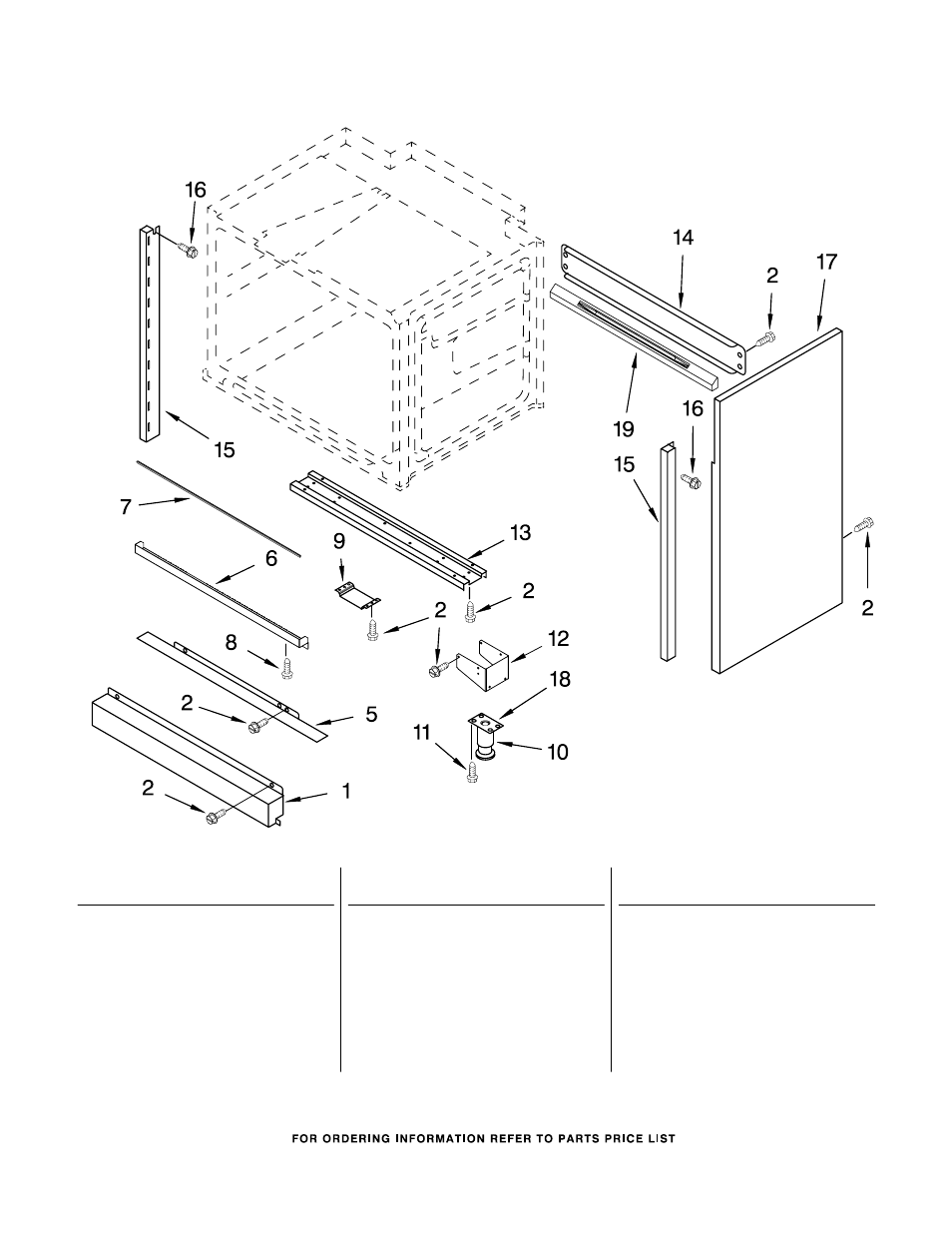

CHASSIS PARTS
For Model: KDRP767RSS00
(Stainless Steel)
8186354
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1
4452803 Vent, Bottom
Lower
2
4449809 Screw, 8−18 x 3/8
5
4452801 Deflector, Center
6
9761914 Vent, Center
7
4453327 Gasket
8
3196537 Screw, 8−18 x 3/8
9
9759092 Bracket, Mounting
Regulator
10
9759117 Foot
11
3400518 Screw,
5/16−12 x 5/8
12
4455644 Gusset
13
4455648 Support, Channel
14
9760673 Brace, Rear
15
Trim, Front
4452804 Right Side
4453205 Left Side
16
3400837 Screw, 8−18 x 3/8
17
Side Chassis
9761934 Right Side
9761933 Left Side
18
9759118 Plate
19
9762143 Tray, Drip
