Page 8
8

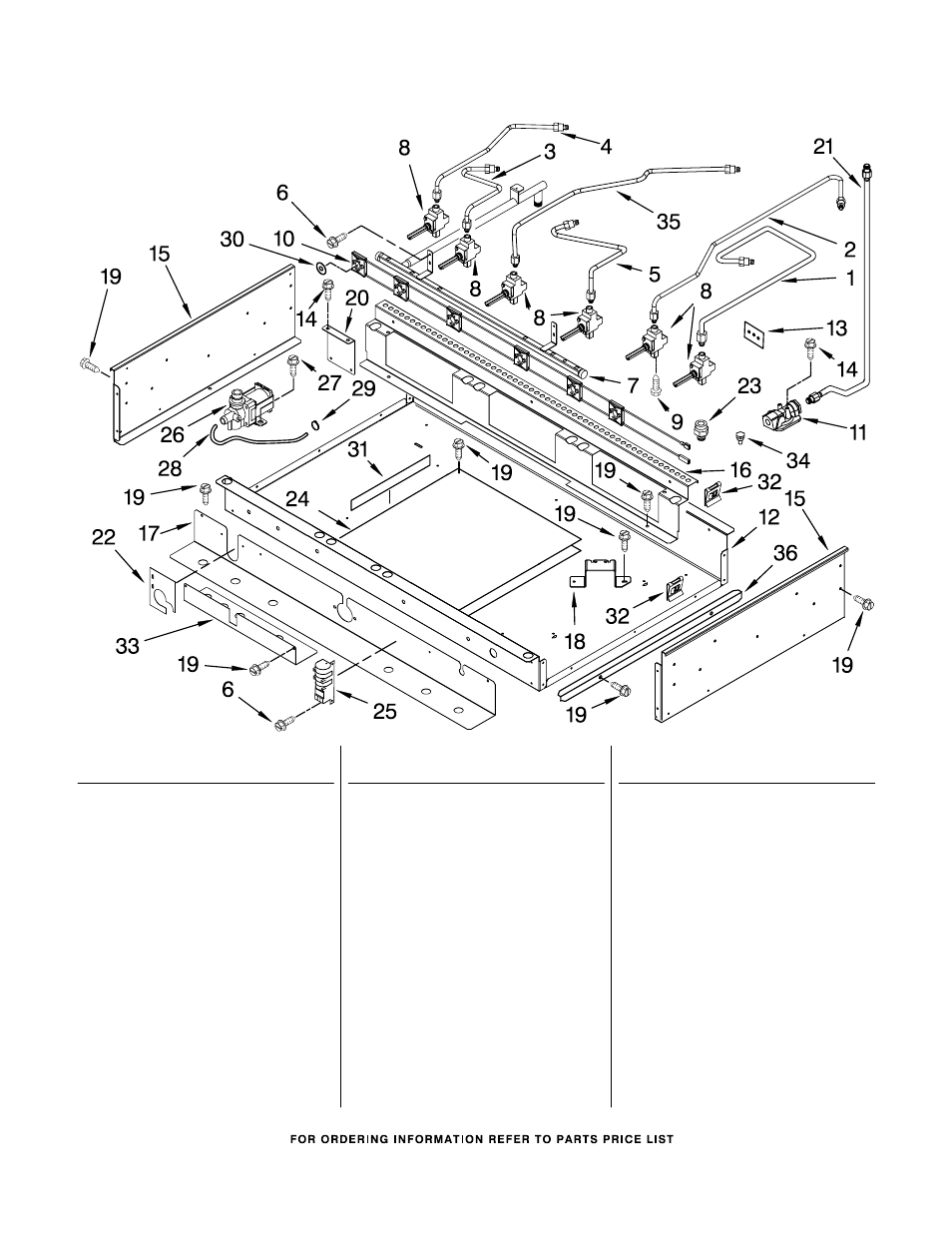

BURNER BOX AND MANIFOLD PARTS
For Model: KDRP767RSS00
(Stainless Steel)
8186354
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1
8300231 Tubing, Gas
Burner − RF
2
8300230 Tubing, Gas
Burner − RR
3
8300187 Tubing, Gas
Burner − LF
4
8300188 Tubing, Gas
Burner − LR
5
8300229 Tubing, Gas
Burner − CF
6
3400843 Screw, 8−18 x 3/8
7
4457248 Manifold
8
Valve, Burner
4456818 Turbi (4)
(Bronze)
4456816 Small (2)
(Red)
9
8523704 Bolt,Gas Valve (6)
10
4456903 Burner Switch &
Harness Assembly
11
9759091 Pressure Regulator
12
9762135 Box, Burner
13
3192439 Seal, Switch
14
4449809 Screw, 8−18 x 3/8
15
Side, Burner Box
8285607 Right Side
8285606 Left Side
16
9759140 Support, Rear
17
9758987 Support, Cooktop
18
3192811 Bracket, Burner
19
3177991 Screw, 8−18 x 1/4
20
9758964 Bracket, Valve
21
8301252 Tube, Manifold
22
9762133 Cover, Manifold
23
Adaptr,Compression
4453116 1/2" Male
4453115 1/2" Female
24
8284964 Cover, Burner
Box
25
8522427 Module, Spark
26
9761102 Valve, Overflow
27
3196184 Screw, 8−32
28
9761150 Hose (White)
(Valve to Resrv’r)
29
9761147 Clamp
30
3191387 Seal, Switch
31
4453191 Seal, Panel
32
4167077 Nut (2)
33
8300216 Bracket,
Panel Support
34
8284796 Plug, Manifold
35
8300232 Tubing, Gas
Burner − CR
36
4454974 Rail, Support
