Cooktop parts

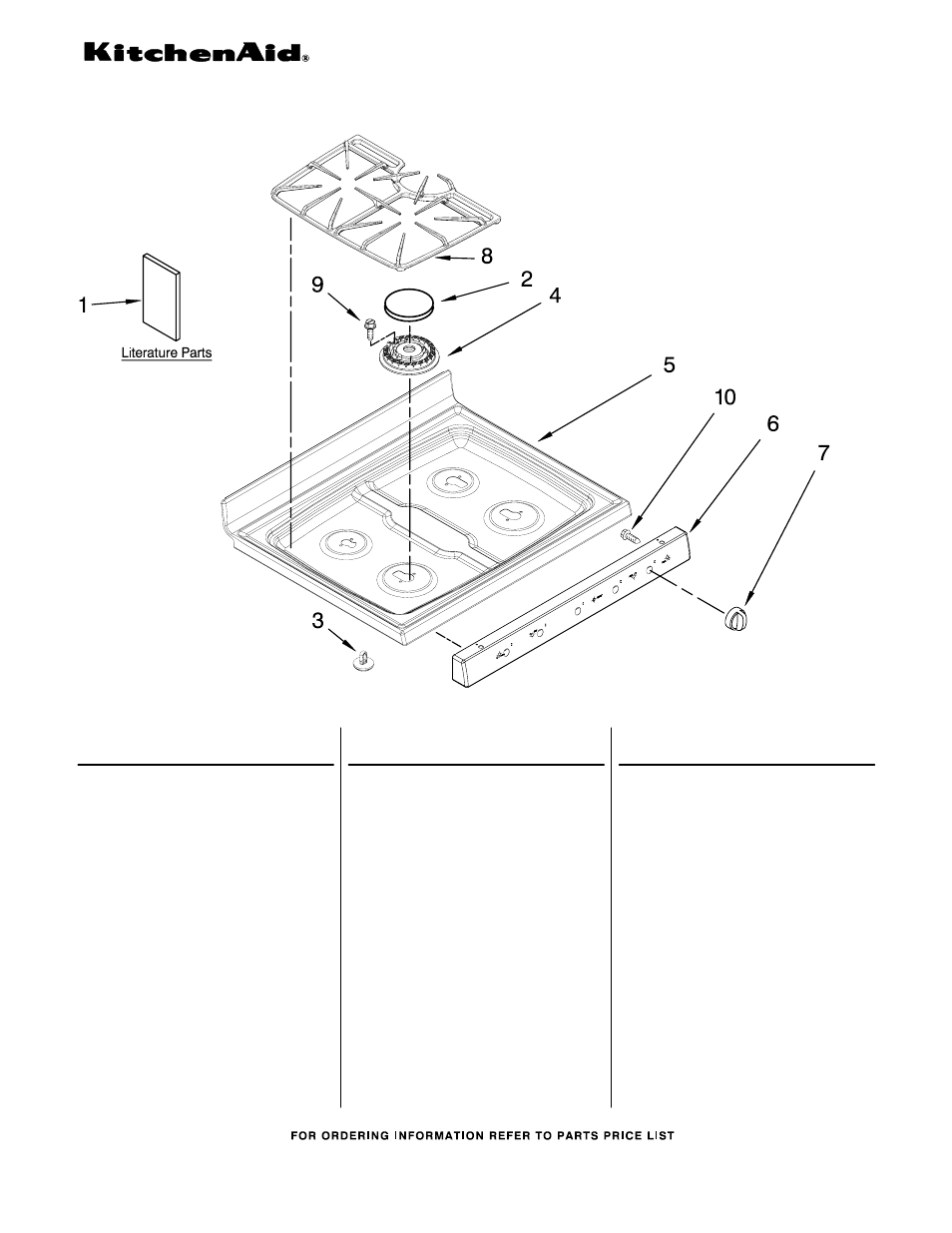

COOKTOP PARTS
1
For Models: KGRS205TWH5, KGRS205TBL5, KGRS205TSS5
(White) (Black) (Stainless Steel)
12−09 Litho In U.S.A. (ll) (psw)
Part No. W10304838 Rev.A
30" GAS FREESTANDING
SELF CLEAN RANGE
SEALED BURNER
CONVECTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1
Literature Parts
W10188242 Installation
Instructions
W10185364 Owners Manual
W10281615 Wiring Diagram
Tips, Safe Cooking
9762761 English
W10065852 French
2
Cap, Burner
(RF)
7504P300−60 Black
7504P296−60 Gray
(LF)
7504P299−60 Black
7504P295−60 Gray
(RR & LR)
W10168355 Black
W10168351 Gray
(CTR)
7504P294−60 Gray
7504P298−60 Black
3
8010P149−60 Spacer, Snap−In
4
Burner
8286181 (CTR)
8286182 (LF)
W10194076 (RR & LR)
8286183 (RF)
5
Cooktop
W10225509 Black
W10225508 White
6
Panel, Manifold
W10168240 Black
W10168241 White
W10168678 Stainless Steel
7
Knob, Control (5)
W10160374 Black
W10160372 White
W10160375 S.Steel
8
Grate, Burner (2)
W10218262 Black
W10168265 Gray
W10218264 Stainless Steel
9
3400701 Screw (8)
10
3196178 Screw
