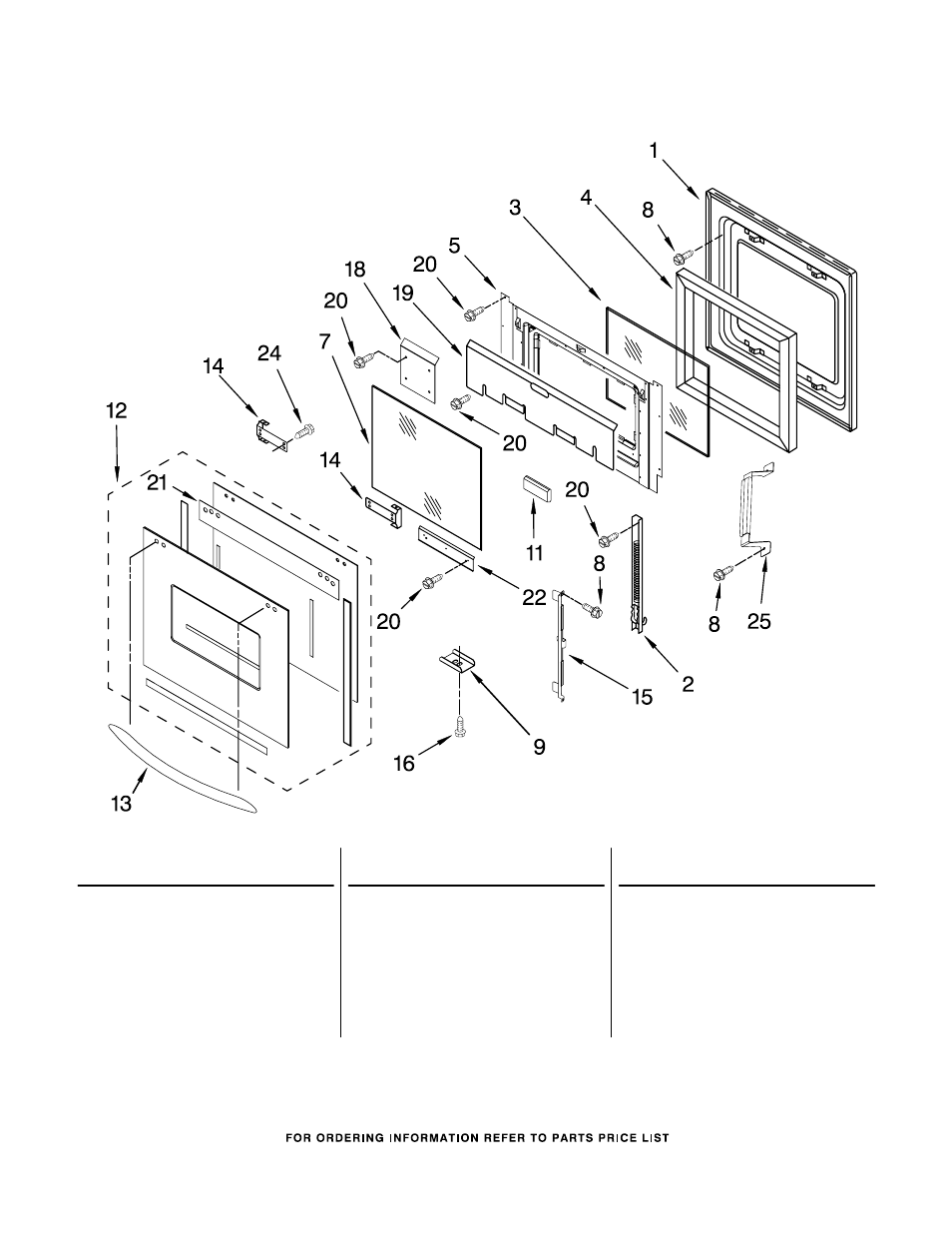

OVEN DOOR PARTS
3
For Model: KDRP767RSS00
(Stainless Steel)
8186354
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1
8300152 Door Liner
2
Hinge, Door
9760579 R.Side
9760580 L.Side
3
4449259 Glass, Inner
4
8300797 Insulation, Door
5
8300190 Retainer, Glass
7
4449263 Glass, Inner
8
4449743 Screw, 8−32 x 3/8
9
9759634 Retainer, Glass
11
9759635 Spacer, Glass
12
8300162 Assy, Door Glass
13
4455852 Door Handle
14
Bracket, Handle
4455803 Right Hand
4455804 Left Hand
15
8302092 Bracket(2nd Glass)
16
3400832 Screw, 8−18 x 3/8
18
8301084 Shield, Top Heat
(Addition) (2)
19
8300971 Shield, Top Heat
20
4449809 Screw, 8−18 x 3/8
21
8300153 Seal, Door Top
22
9762144 Heat Shield (Btm)
24
3196184 Screw, 8−32 x .548
25
8302094 Bracket(3rd Glass)
