Cooktop, Cooktop parts – KITCHENAID KDRP767RSS00 User Manual
Page 7
7

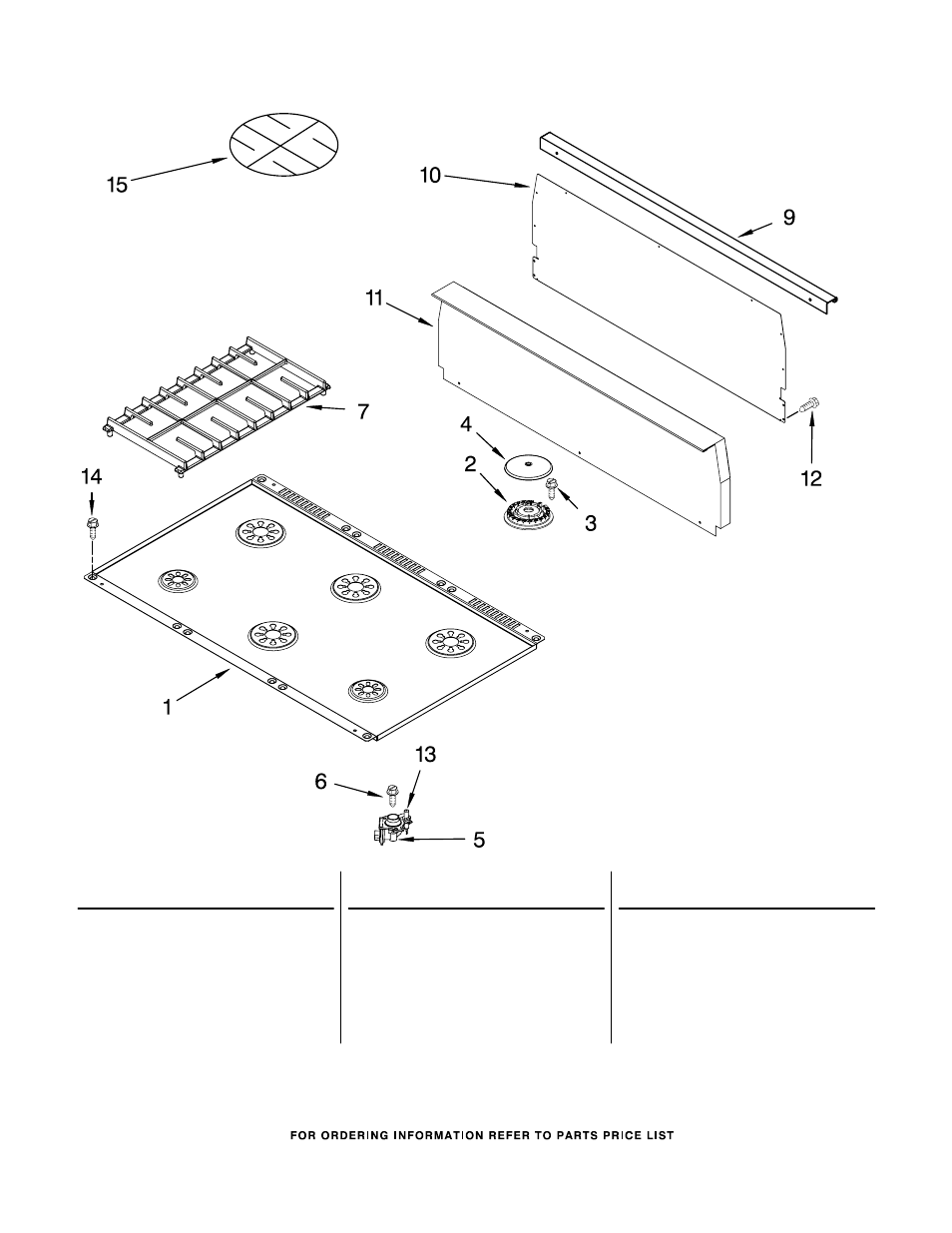

COOKTOP PARTS
For Model: KDRP767RSS00
(Stainless Steel)
8186354
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1
4456865 Cooktop
2
Burner Head
4455849 Turbi (4)
4455979 Auxi (6K) (2)
3
3368921 Screw, 7−18 x 3/4
4
Cap, Burner
4455243 14k (4)
8284669 6K (2)
5
4456622 Orifice Holder (6)
(Incl.Orifice &
Ignitor)
6
3177991 Screw, 8−18 x 1/4
7
4457331 Grate, Burner (3)
9
4454962 Trim, Island
10
9762603 Support,
Backsplash
11
9762605 Trim, Backsplash
12
3400837 Screw, 8−18 x 3/8
13
9782116 Ignitor
14
4449743 Screw
15
4455109 Plate, Simmer
