32 | English

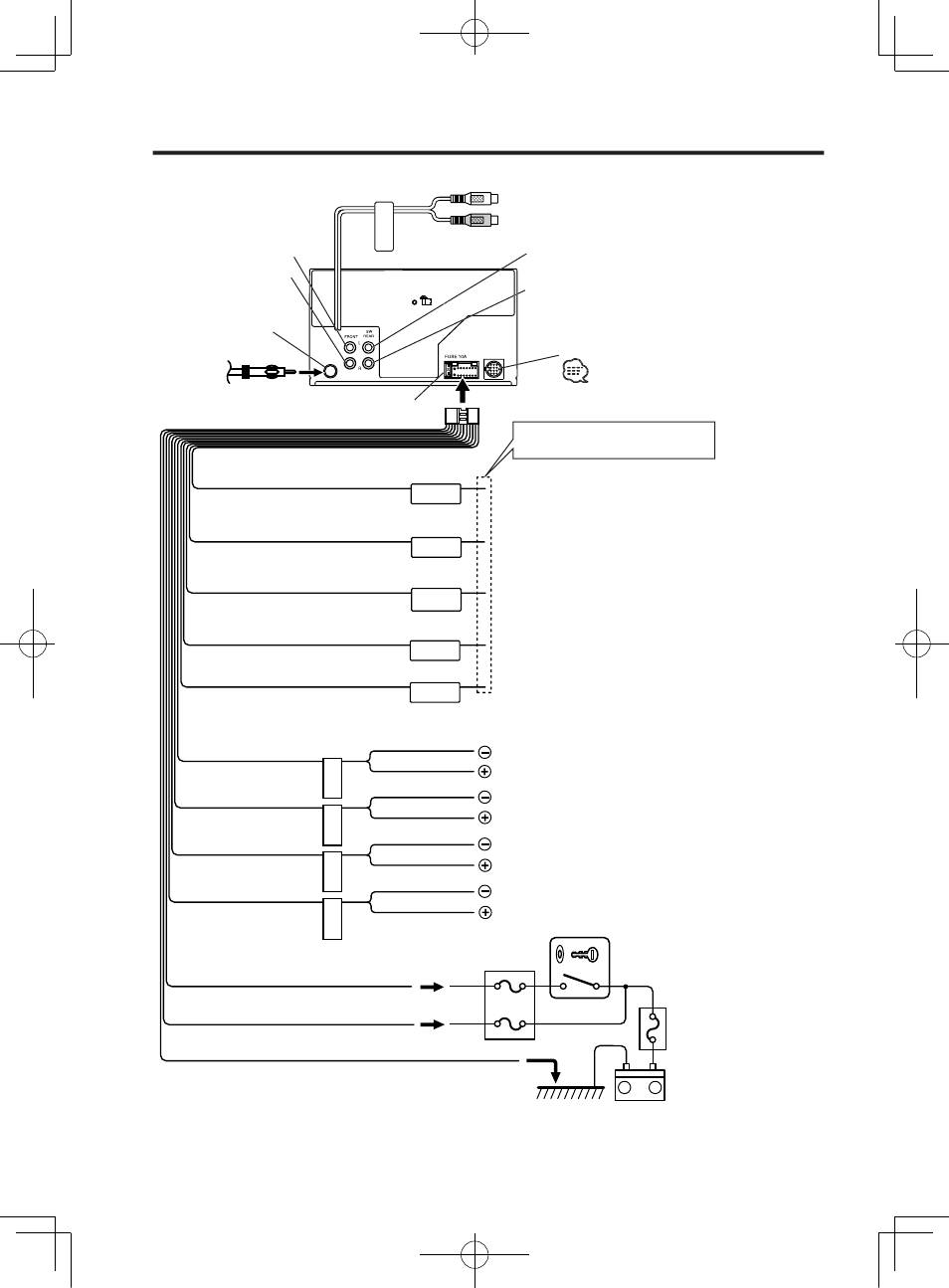

Connecting Wires to Terminals
� �
AU
X
IN
P.CONT
MUTE
ANT. CONT
ILLUMI
EXT.CONT.
FR
O
N
T
L
FR
O
N
T
R
R
EA
R
L
R
EA
R
R
M4�8mmMAX
FM/AM antenna input
Wiring harness
(Accessory1)
Ignition wire (Red)
Battery wire (Yellow)
Ground wire (Black) - (To car chassis)
Ignition key
switch
Car fuse box
(Main fuse)
ACC
Car fuse box
Battery
Dimmer control wire (Orange / White)
To car light control switch
To front left speaker
To front right speaker
To rear left speaker
To rear right speaker
White/Black
White
Gray/Black
Gray
Green/Black
Green
Purple/Black
Purple
Connect to the terminal that is grounded when either the
telephone rings or during conversation. To connect the
KENWOOD navigation system, consult your navigation
manual.
TEL mute wire (Brown)
Power control wire (Blue/White)
Motor antenna control wire (Blue)
When using the optional power amplifier, connect to its
power control terminal.
Depending on what antenna you are using, connect either to
the control terminal of the motor antenna, or to the power
terminal for the booster amplifier of the film-type antenna.
Rear left output (White)/
Subwoofer left output (White)
Rear right output (Red)/
Subwoofer right output (Red)
Front left output (White)
Front right output (Red)
If no connections are made, do not
let the wire come out from the tab.
KENWOOD disc changer control input
To connect the Disc changer, consult
your Disc changer manual.
AUX left input (White)
AUX right input (Red)
8mm
Fuse (10 A)
External amplifier control wire
(Pink / Black)
To "EXT.AMP.CONT." terminal of the amplifier having the
external amp control function.
