NETWORK SETUP 4
Configure your 7700's TCP/IP properties as follows:
Network Type
STATIC
Internet Address
A private IP address such as 192.168.0.200
[Example]
A. You need to assign the 7700 an IP
address, just as you would assign a PC.
B. The IP address you assign must be unique
on your network as assigned by a network
administrator to avoid IP conflicts.
C. The IP address you assign the 7700 must
be a private IP. For information on how to
choose a private IP please read the FAQ.
Subnet Mask
255.255.255.0 [Example]
A. You must use the same subnet mask as
the one you noted under "Current TCP/IP
Settings".
Default Gateway
192.168.0.1 [Example]
A. This IP address must be the IP address of
your router (private or LAN side)
B. Use the same Default Gateway you noted
under "Current TCP/IP Settings"
Primary DNS Server
Use the 1st DNS Server from "Assigned IP
Address from My ISP"
A. If you did not receive any IP addresses
from your ISP, please contact them and
acquire the IP address of their DNS
server.
Web Server Port
80 [default]
A. You may select any number between
1025-30000.
Video Server Port
7777
A. You may select any number between
1025-30000.
Network Video Flex
®
7700 Manual
ADMIN TOOL 6
Network Type
Select a Static or Dynamic address scheme
(static recommended).
Internet Address
Input a value to assign an IP address to the
7700.
Subnet Mask
Input a value to assign a subnet mask to the
7700.
Default Gateway
Input the IP address of the default gateway.
Primary DNS Server
Input the IP address of an ISP's DNS server.
Web Server Port
Input a TCP port number to assign a Web
Interface port number to the 7700.
Video Server Port
Input a TCP port number to assign a Video
Server port number to the 7700.
DDNS Server
Input DDNS server address.
Network Video Flex
®
7700 Manual

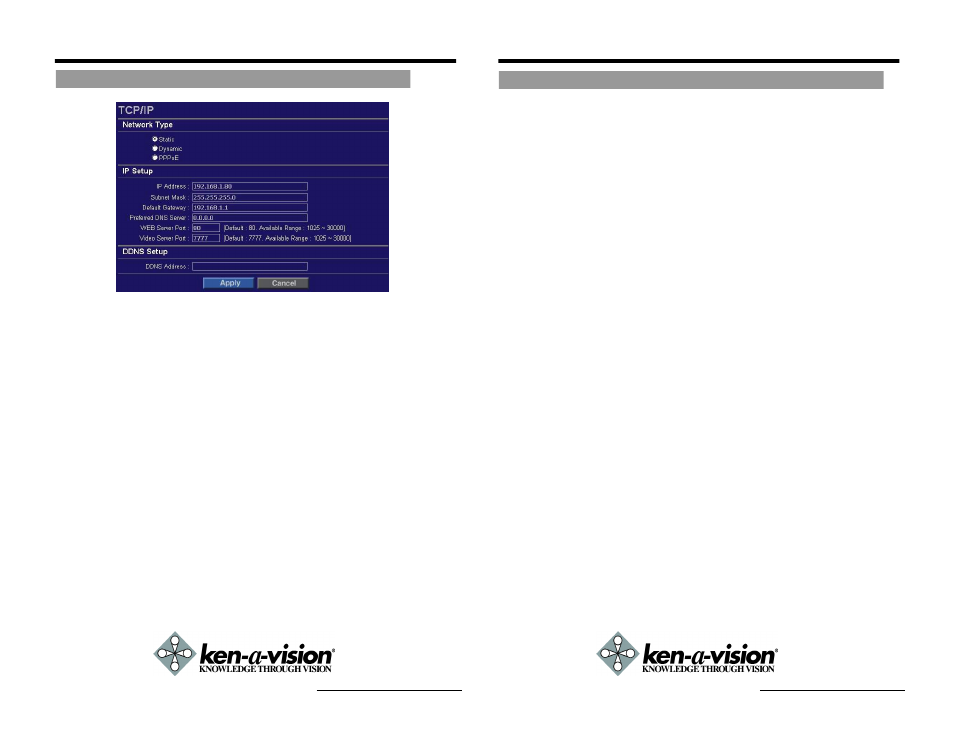

Case A: Static (Fixed) IP on a LAN (Local Area Network)
TCP/IP Tool
