The following table lists the devices to which Port #8 can connect :
Device connected Crossover SW Cable used
Computer 10BASE-T port X setting Cat. 3, 5 straight UTP
10BASE-T hub port (I type) X setting Cat. 3, 5 straight UTP
10BASE-T hub port (X type) I setting Cat. 3, 5 straight UTP
10BASE-T switched port (I type) X setting Cat. 3, 5 straight UTP
10BASE-T switched port (X type) I setting Cat. 3, 5 straight UTP
Straight UTP Cable
The cable is 2-pair Category 3 or 5 UTP and maximum length is 100
meters. The pin assignments are shown as follows:

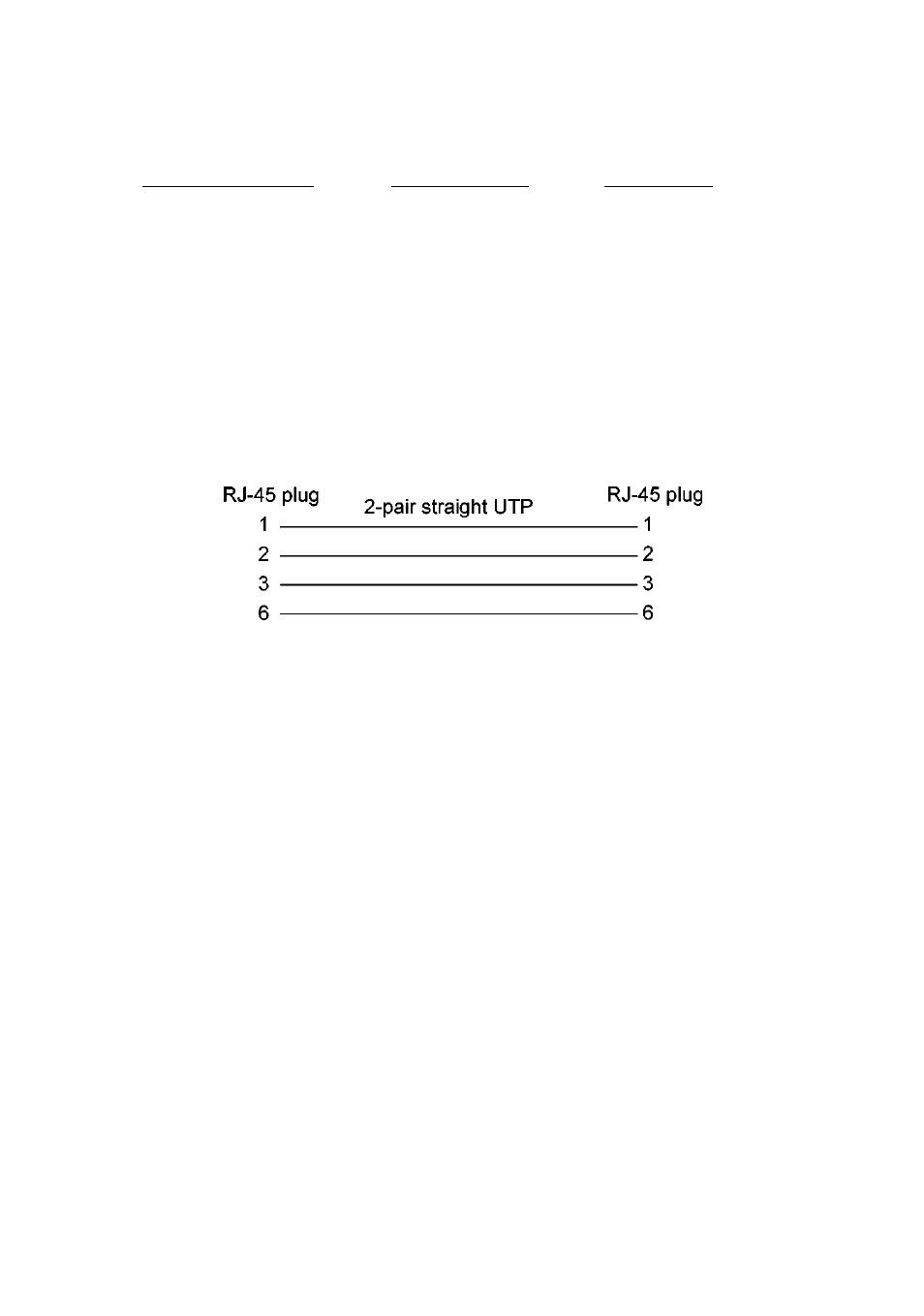

Figure 3-2 2-pair Straight UTP Cable
