2.5 Setting the Configuration Switches
Open the configuration switch cover on the rear of the unit. There are
two switch groups as illustrated below:

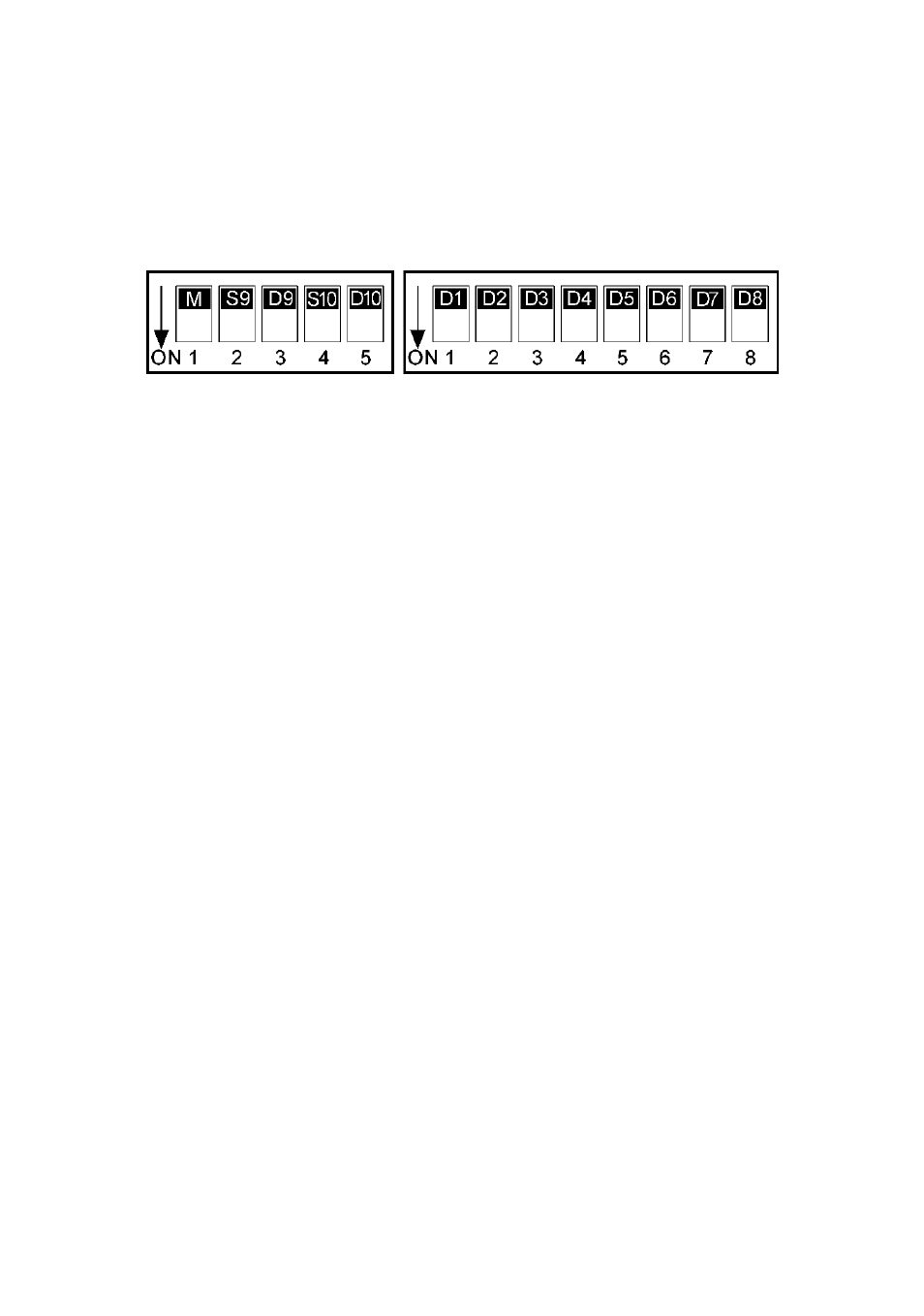

Figure 2-9 Configuration Switches
The following table specifies the definition of each switch:
The M switch only functions for Port #9 and Port #10. Since Port #1 to
Port #8 are fixed 10BASE-T ports, the speed of these ports is fixed at
10Mbps. No speed selection is available. D1-D8 switches are used for
selecting the duplex mode for each 10BASE-T port respectively.
Port #9 and Port #10 can be configured as NWay auto-negotition ports if the M
switch is set to OFF position. This setting applies to both ports at the same time.
The auto-negotiation mode enables the port to negotiate a common op-
eration mode with the device connected at the remote end of the link
cable. The common operation mode is negotiated in the sequence as
follows:
