3. Making Network Connections
3.1 Network Switched Ports
There are ten ports on the switch for connection to ten LAN segments.
Each segment is an independent shared network in one collision-do-
main.

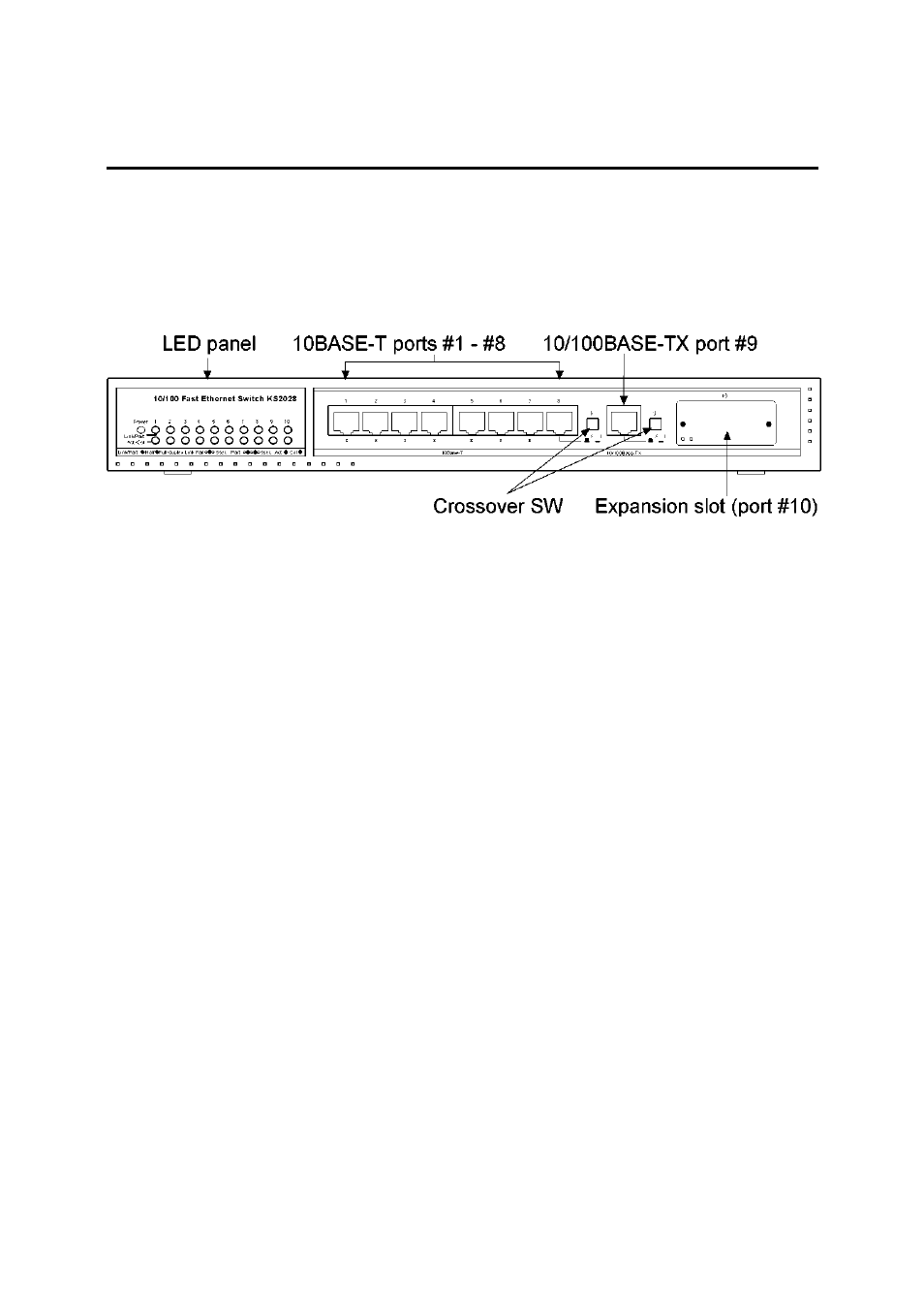

Figure 3-1 Network Ports
Port #1 to Port #8 are 10Mbps-based 10BASE-T switched ports and
dedicated for connecting to eight separate 10Mbps Ethernet segments
through individual 10BASE-T connections.
Port #9 is a 10/100Mbps-based dual-speed switched port. It can support
connection to either one 10Mbps Ethernet segment or one 100Mbps
100BASE-TX fast Ethernet segment. It features the capability of auto-
sensing the speed of the connected segment.
Port #10 is a configurable expansion port slot. The slot can be config-
ured with one optional port module. Once installed, the slot becomes a
network switched port and can be used for connecting to an additional
network segment. Two optional modules are:
• 10/100BASE-TX port module - dual speed 10/100BASE-TX
• 100BASE-FX port module - 100BASE-FX fiber optic
