Maintenance work on chassis and engine – KTM 990 SUPER DUKE User Manual
Page 66

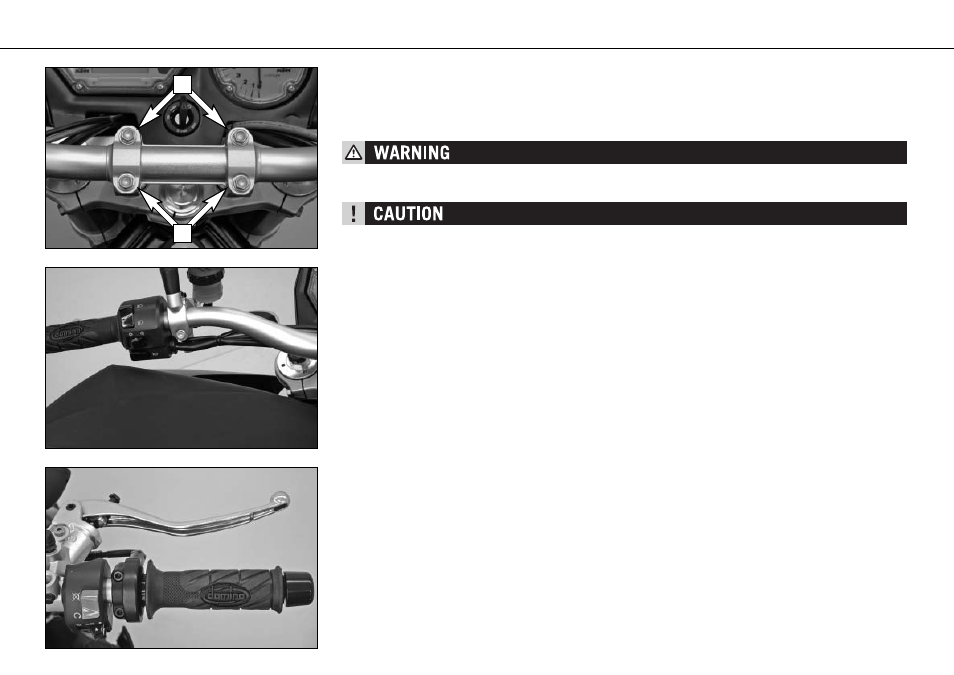

Adjusting the handlebar tilt
Loosen the screws
[1]. Adjust the handlebar and tighten the screws to 20 Nm.
Make sure the handlebar instruments do not touch the fuel tank when the handlebar is com-
pletely turned.
TILTING THE HANDLEBAR TOO FAR BACK WILL REDUCE THE STEERING ANGLE SINCE THE HAN-
DLEBAR INSTRUMENTS WILL TOUCH THE FUEL TANK
IF THE HANDLEBAR IS TILTED TOO FAR BACK, THE HANDLEBAR INSTRUMENTS MAY DAMAGE
THE FUEL TANK
Checking and adjusting the throttle cable play *
This work will require a diagnostics tool. Visit your authorized KTM dealer.
MAINTENANCE WORK ON CHASSIS AND ENGINE
»
65
1
1
