Adjusting the fork and shock absorber
There are a number of ways to adjust the fork and shock absorber to match the chassis to
your driving style and the payload.
We have provided a table with pragmatical values to help you tune up your motorcycle. These
tune-up specifications are reference values only and should serve as a basis for your per-
sonal chassis and suspension tuning. Do not make arbitrary changes to the settings (maxi-
mum ±40%) since this may impair the handling characteristics (particularly in the high-
speed range).
Make sure both fork legs are equally adjusted.

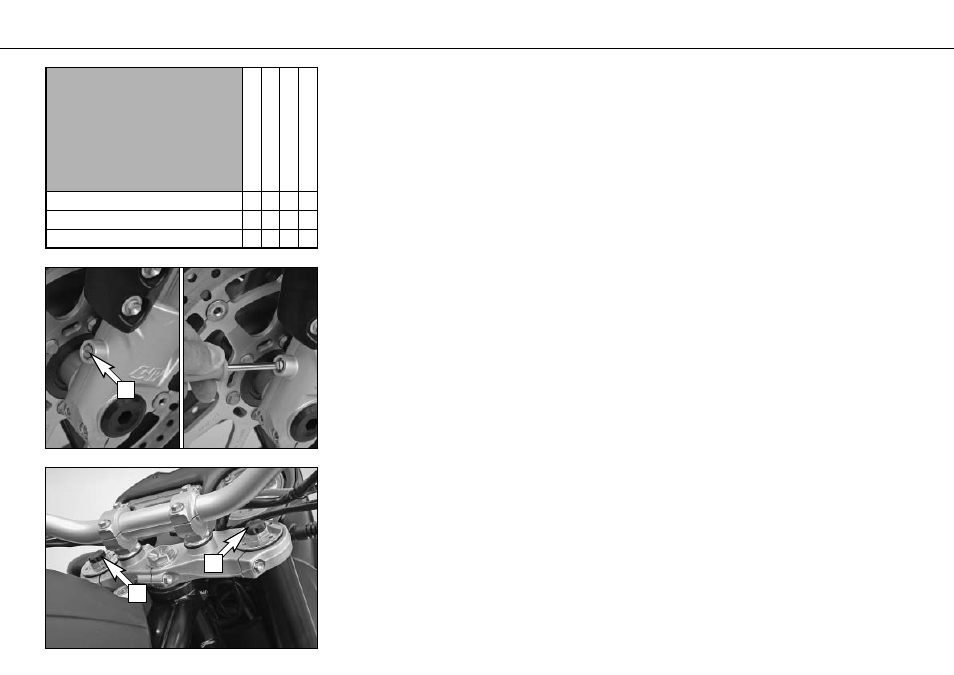

Adjusting rebound damping of fork
Hydraulic rebound damping determines the reaction when the fork is
rebound. By turning the adjusting screw [2] (REB), the degree of damping of the rebound
can be adjusted. Turn the knob clockwise to increase damping, turn it counterclockwise to
reduce damping during rebounding. Make the same damping rate adjustment to both fork
legs.
STANDARD ADJUSTMENT
– Turn adjusting screw clockwise as far as it will go.
– Turn 15 clicks in a counterclockwise direction.
MAINTENANCE WORK ON CHASSIS AND ENGINE
»
37
BASIC SETTING
FORK WP 4860 ROMA
990 SUPER DUKE
Driving Comfort Basic Setting Driving Sport Maximum Payload
Compression adjuster (clicks) 20 15 10 15
Rebound adjuster (clicks) 20 15 10 15
Spring preload (turns) 5 5 5 6
Adjusting compression damping of fork
Hydraulic compression damping determines the reaction when the fork is compressed.
Turn the adjusting screws [1] clockwise to increase damping, turn it counterclockwise to
reduce damping during compression. Make the same damping rate adjustment to both fork
legs.
STANDARD ADJUSTMENT
– Turn adjusting screw clockwise as far as it will go.
– Turn 15 clicks in a counterclockwise direction.
1
2
2
