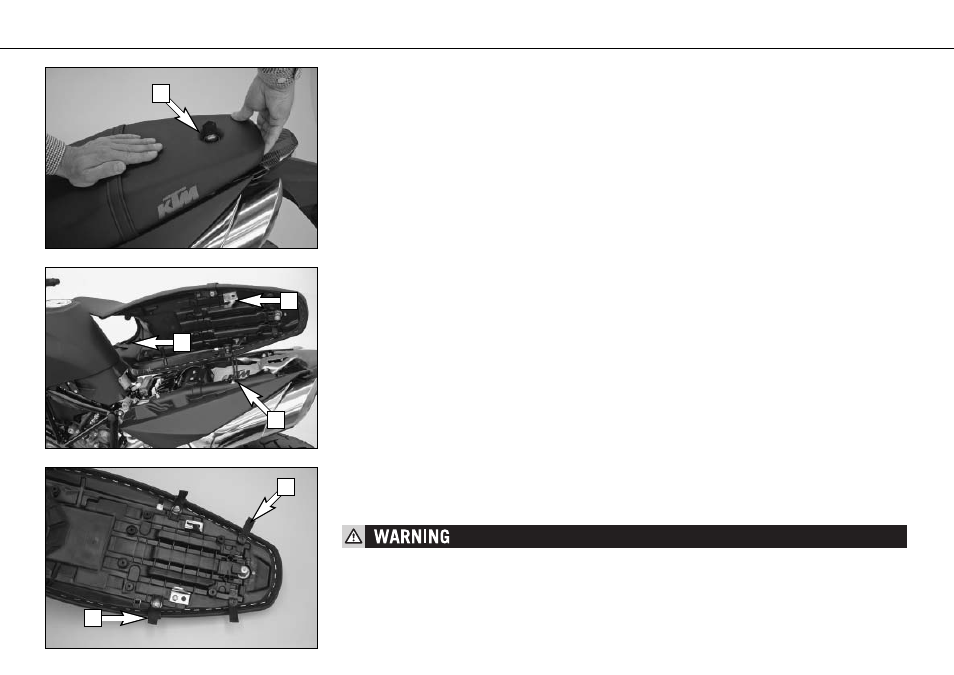

Seat lock, removing the seat

The seat lock

[1] can be locked with the ignition key.

To remove the seat, insert the ignition key and turn 90° in a clockwise direction. Lift the

seat in the back while pressing near the holding strap and pull off towards the back.

To mount the seat, place it on the motorcycle and position the hooks

[2] on the bottom of

the seat behind the dollies

[3] on the subframe. Press down on the seat near the holding

strap while sliding it forwards. The two tabs

[4] must hook onto the tank. Turn the ignition

key in the seat lock 90° in a counterclockwise direction and pull off. Check whether the seat

is mounted correctly.

Baggage loops

4 loops

[5] are mounted on the bottom of the seat to which small pieces of baggage can be

fastened. Fold the loops towards the outside to make them accessible when the seat is mounted.

BAGGAGE WEIGHT: MAX. 5 KG
