Maintenance work on chassis and engine – KTM 990 SUPER DUKE User Manual
Page 57

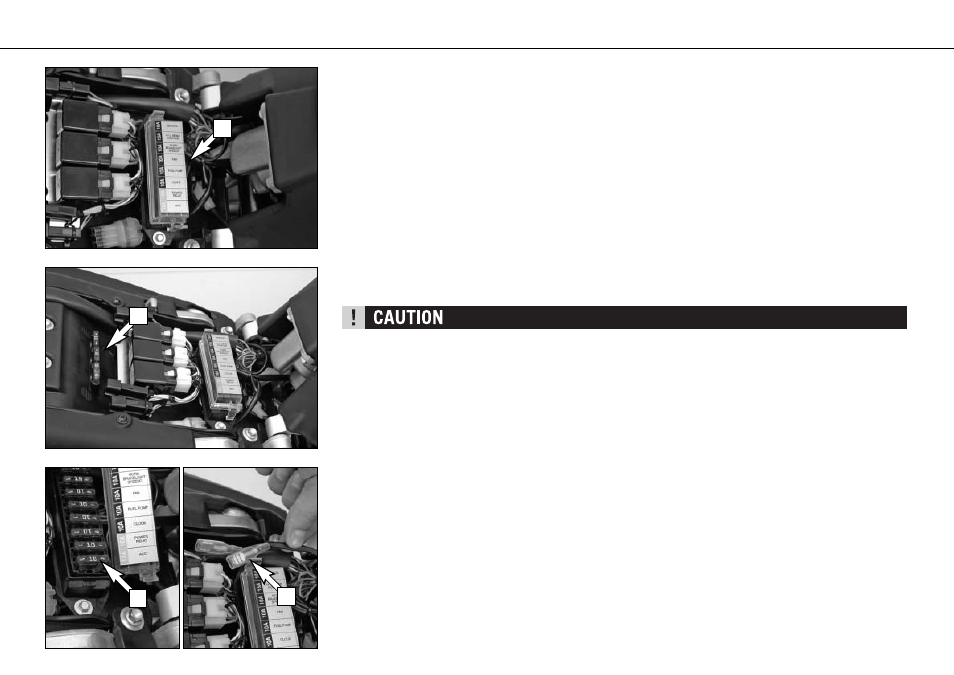

Fuses for individual power consumers
A fuse box is mounted under the seat containing additional fuses that protect the individ-
ual electric power consumers.
The power consumers and the corresponding capacities are listed on the cover of the fuse
box
[1]. Spare fuses [2] of 10 and 15 amperes are located next to the fuse box.
Replace a blown fuse only with an equivalent one. If a new fuse that has just been set in
gets blown again, you are strongly advised to have it inspected by a KTM dealer.
UNDER NO CIRCUMSTANCES IS A STRONGER FUSE ALLOWED TO BE SET IN OR A FUSE ALLOWED
TO BE “REPAIRED”. AN INEXPERT TREATMENT COULD DAMAGE THE WHOLE ELECTRICAL INSTAL-
LATION!
The ACC fuse
[3] is designed for accessories with a maximum power consumption of 10
amperes. A connector
[4] to connect the equipment is provided under the seat. Ask your
authorized KTM workshop for details.
MAINTENANCE WORK ON CHASSIS AND ENGINE
»
56
1
2
3
4
