Operation instruments – KTM 990 SUPER DUKE User Manual
Page 19

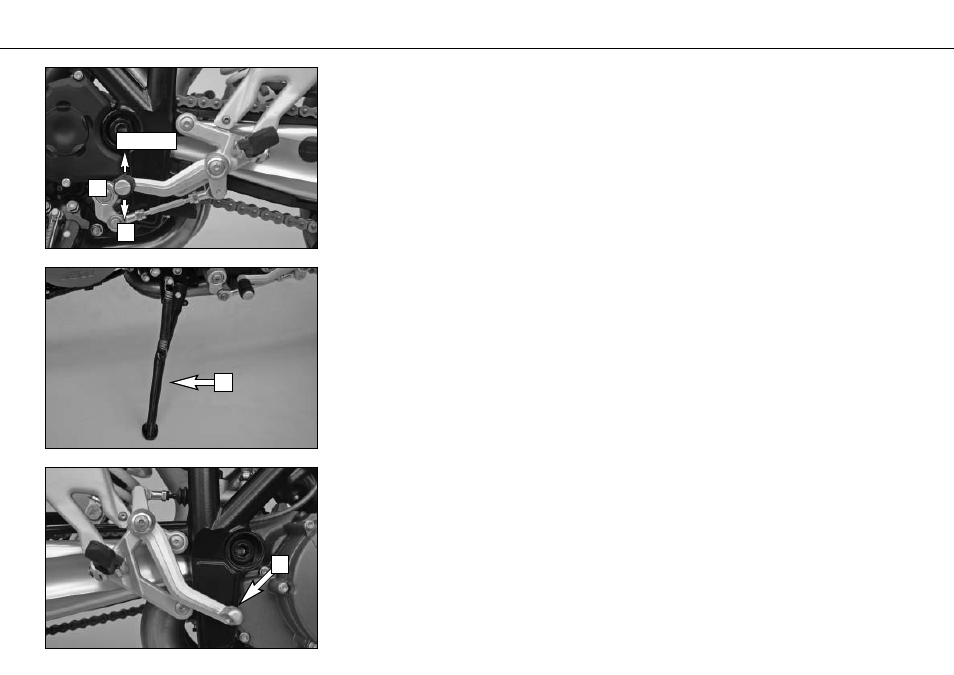

Shift lever
The shift lever is mounted on the left side of the engine. The position of the gears is shown
in the illustration. Neutral, or the idle speed, is located between first and second gear.
The basic position of the shift lever can be adjusted according to your seating position (see
Maintenance work).
Side stand
Fold the side stand
[1] forward to the stop with your foot and put the weight of the motor-
cycle on the stand. Make sure it is standing securely on a firm surface. The side stand is
linked to the safety start system; follow the driving instructions.
Foot brake pedal
The foot brake pedal
[2] is located in front of the right footrest. Its basic position can be
adjusted to your seat position (see maintenance work).
