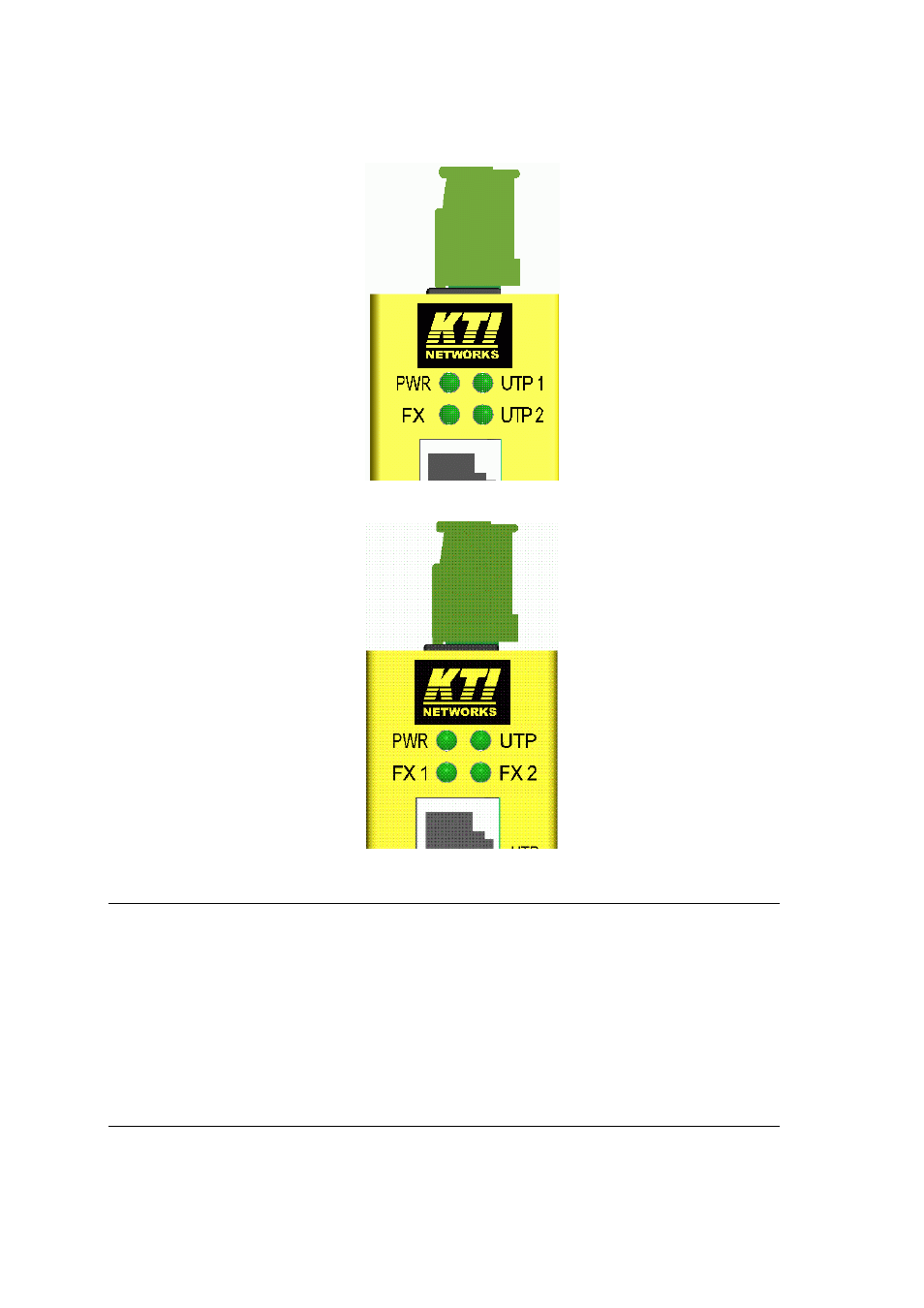

3.3 LED Indication
KSD-103-A
KSD-103-B
LED
Function
State
Interpretation
PWR
Power status
ON
The power is supplied to the device.
OFF
The
power
is
not
supplied
to
the
device.
UTPx
Copper port link status
ON
Port link is established. (No traffic)
BLINK
Port link is up and there is traffic.
OFF
Port
link
is
down.
FXx
Fiber port link status
ON
Port link is established. (No traffic)
BLINK
Port link is up and there is traffic.
OFF
Port
link
is
down.
Note: UTPx = UTP UTP1 UTP, FXx = FX FX1 FX2
