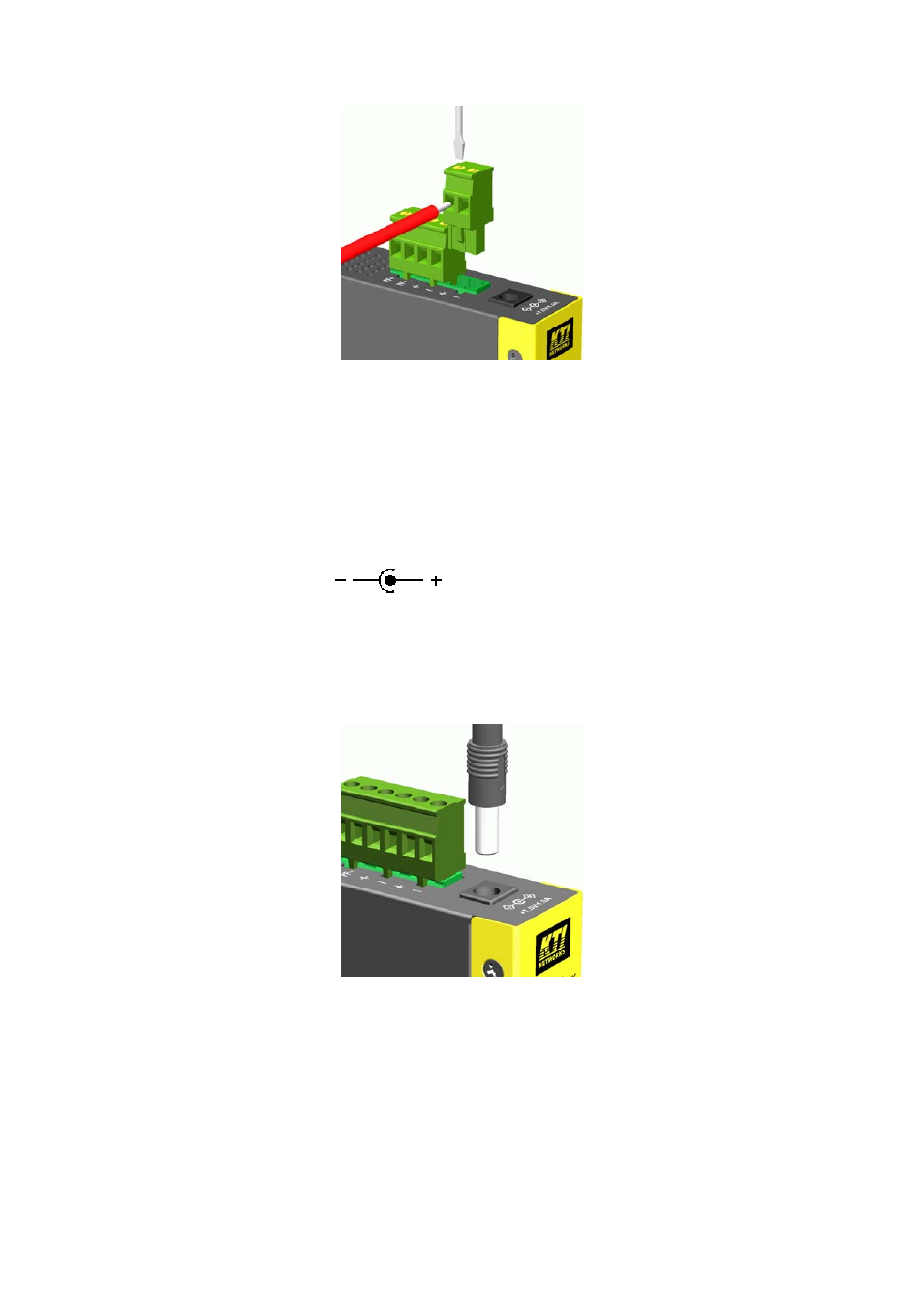

If cascading the power to next device is needed, install the power wires and plug for another switch.

Then, use DC2 contacts.

Note: Only up to four device units can be cascaded to receive power from one main power input

source.

Using DC Power Jack

DC Jack Connector: D 6.3mm

D 2.0mm

AC Power Adapters: Optional power adapters are available for purchasing.

Connect power adapter DC plug to the DC power jack of the converter before connecting to the AC

outlet. Connect the power adapter to the AC outlet.

Note: Before you begin the installation, check the AC voltage of your area. The AC power adapter that

is used to supply the DC power for the unit should have the AC voltage matching the

commercial power voltage in your area.

2.6 Failure Alarm Relay Output

The device provides a relay output to report failure events to a remote alarm monitoring system. The

replay output is provided with two contacts labeled PF+ and PF- in the terminal block interface.

14/20
