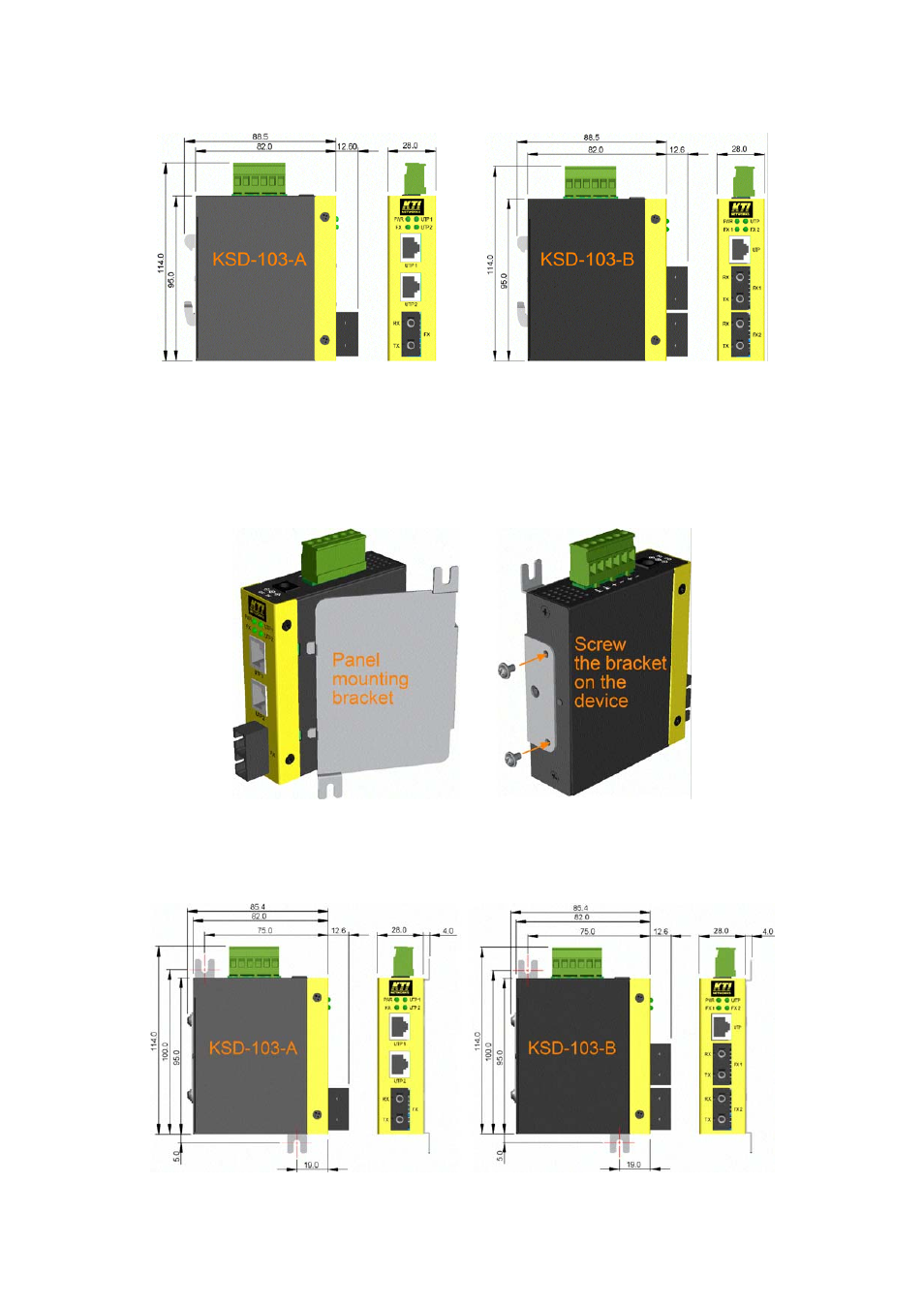

The final mechanical dimensions after installing DIN rail mounting bracket are:
2.4 Panel Mounting
The product is provided with an optional bracket for panel mounting. The bracket supports mounting
the device on a plane surface securely. The mounting steps are:
1. Install the mounting bracket on the device unit. Screw the bracket on the device unit.
2. Screw the device unit on a panel. Make sure that there are proper heat dissipation from and
adequate ventilation around the device. Do not place heavy objects on the device.
The screw locations and final dimension are shown below:
