18
Preparations and Settings
2

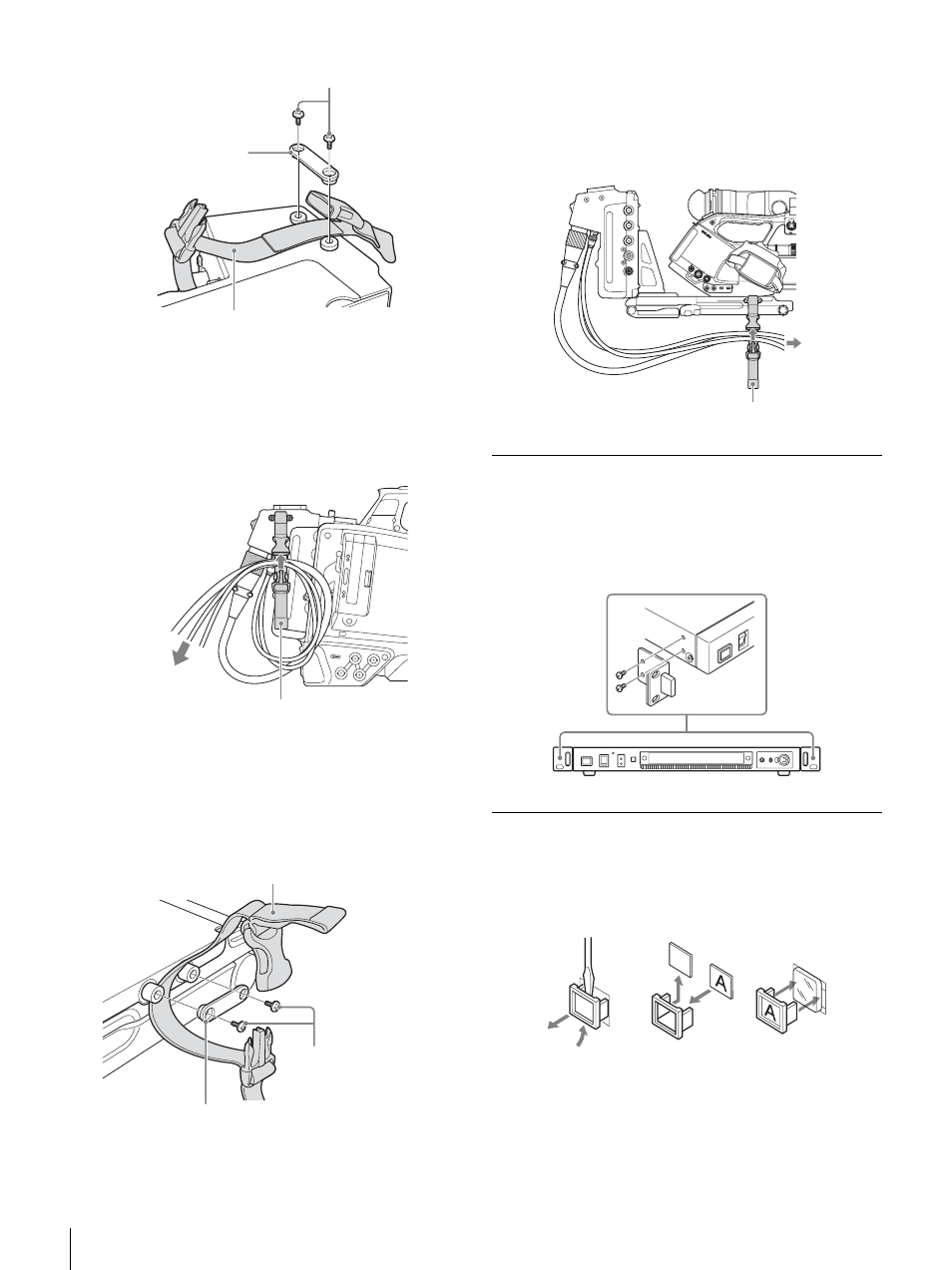

Bundle the three connection cables with the cable
clamp belt. Pass the cables so as to make a loop as
illustrated.
3
Adjust the tightening force of the belt to suit the
diameters of the cables.
When the camera adapator is the XDCA-53
1
Attach the cable clamp belt (supplied with the
XDCA-53) to the right side (as viewed from the
XDCA-53) of the plate.
2
Bundle the three connection cables with the cable
clamp belt. Pass the cables as illustrated.
Adjust the tightening force of the belt to suit the
diameters of the cables.
Attaching Rack Mount Brackets
You can attach the supplied rack mount brackets and
mount this unit on a rack. This allows other devices to be
mounted above and below this unit without impeding
adequate heat dissipation.
Exchanging the Number Plate of the
Tally Lamp
Using a flat-blade screwdriver, you can exchange the
TALLY lamp number plate as shown in the figure below.
Belt bracket attachment screws (XDCA-55)
Belt bracket
(supplied with XDCA-55)
Cable clamp belt (supplied with XDCA-55)
To this unit
Cable clamp belt (supplied with XDCA-55)
Cable clamp belt (supplied with XDCA-53)
Belt bracket (supplied
with XDCA-53)
Belt bracket attachment
screws (XDCA-53)
Plate
To this unit
Cable clamp belt (supplied with XDCA-53)
