17
Preparations and Settings
Preparations and Settings

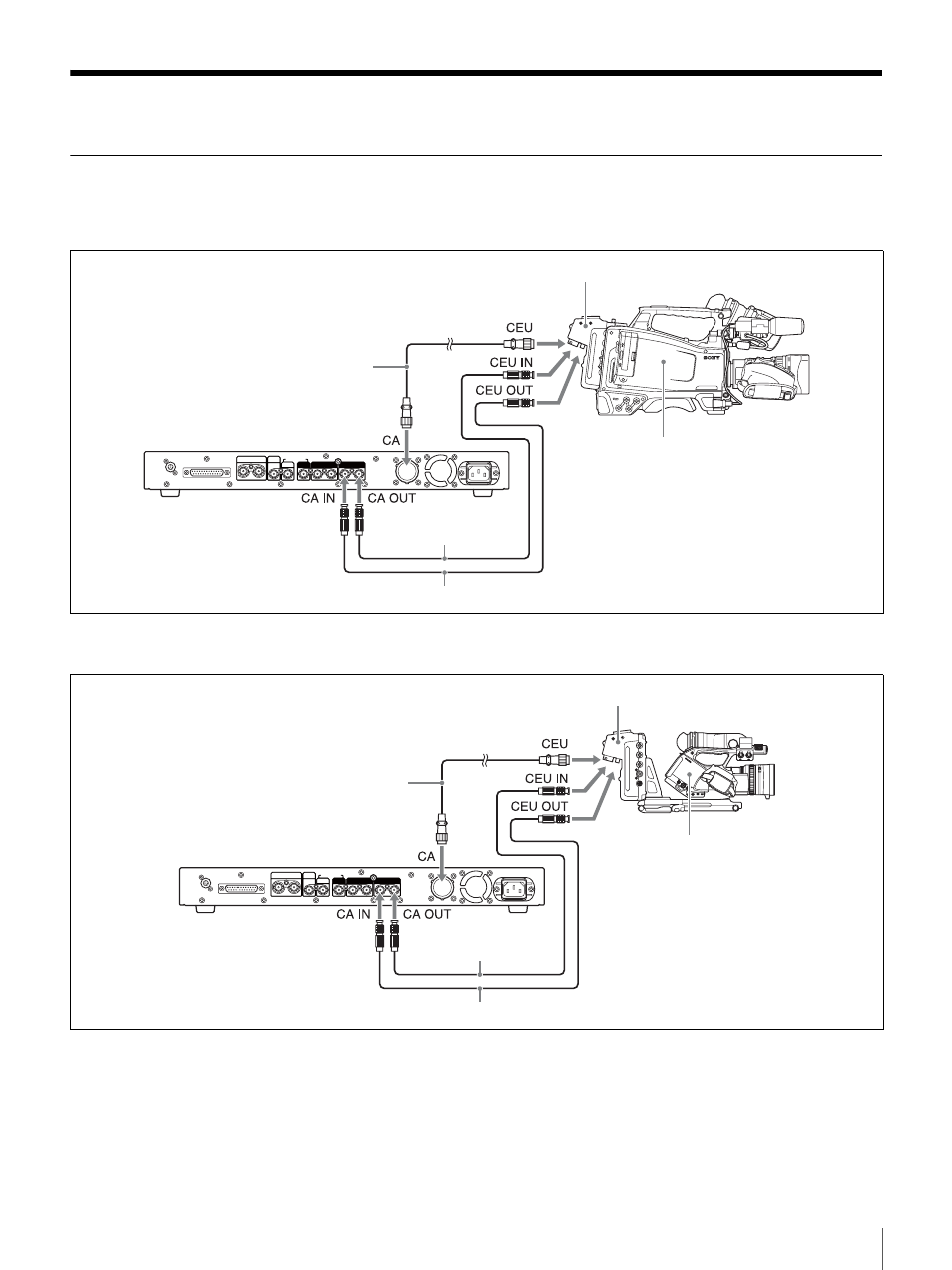

Example Connections
Connecting to the XDCA-55
Connecting to the XDCA-53
To fix the connection cables using the
cable clamp belt
The cables to connect this unit and the camera adaptor can
be fixed to the camera or plate by using the cable clamp
belt supplied with the camera adaptor.
When the camera adaptor is the XDCA-55
1
Attach the cable clamp belt (supplied with the
XDCA-55) to the XDCA-55 using the belt bracket
attachment screw holes at the side of XDCA-55.
XDCA-55
CCZ-A cable (Max. 100 m (328 feet))
BNC cable
PMW-320/350/500
BNC cable
This unit
XDCA-53
CCZ-A cable (Max. 100 m (328 feet))
BNC cable
PMW-EX3
This unit
BNC cable
