Distance between dots: 0.353 mm (H) ✕ 0.353 mm (W)
•
Journal near end sensor: Service route option
•
Print speed: Approx. 3.0 lines/sec.
•
Paper feed speed: Receipt – Approx. 30 lines/sec.
Journal – Approx. 30 lines/sec.
•
Reliability: MCBF – 4 million lines (excluding the
print head)
Head life – 50 million characters
(at 4 dots/1 character/
1 pin)
•
Validation form sensor: Not setup

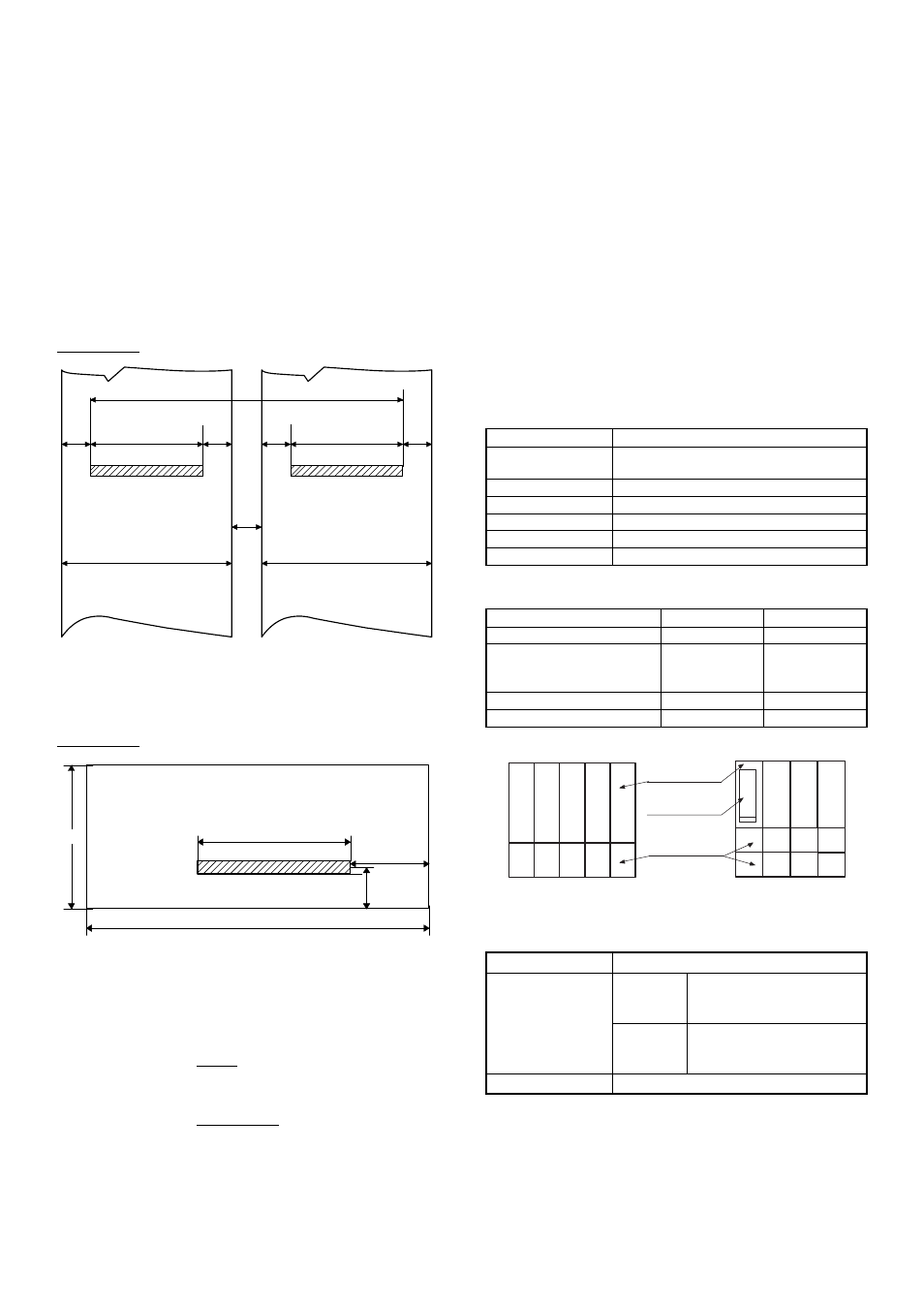

2) Printing area
Receipt/journal
Fig. 5-1
Validation form
Fig. 5-2
3) Paper
•
Paper roll dimensions: 44.5
±
0.5mm in width, 83mm in diameter
•
Paper quality: Journal
Bond paper (paper thickness: 0.06 to
0.09mm, paper weight: 52.3 to 64g/m
2
)
Validation form
Thickness: 0.07 to 0.14mm
Size:
130mm or more
(
W
) ✕
70mm or more
(
H
)
4) Inking
•
Ink supply system: Ink ribbon
•
Form: Cartridge/Endless ribbon
•
Specification: Material – Nylon
•
Ribbon life: Approx. 6 million characters
•
Print color: Purple (single color)
5) Logo stamp: None
6) Cutter
•
Method: Manual
6. Drawer
1) Specification
(1) Drawer box and drawer
Model name SK-423
Size 420 (W) ✕ 427 (L: included lock key)
✕ 112 (H: included rubber leg)
Color GRAY 368
Material Metal
Bell —
Release lever Standard equipment; Situated at the bottom
Drawer open sensor Standard equipment
2) Money case
For "U" version For "A" version
Separation from the drawer Allowed Allowed
Separation of the coin com-
partments from the money
case Disallowed Disallowed
Bill separator — YES
Number of compartments 5B/5C 4B/8C
3) Lock
Location of the lock Front
Method of locking
and unlocking Locking: Insert the drawer lock key into
the lock and turn it 90 degrees
counterclockwise.
Unlocking: Insert the drawer lock key into
the lock and turn it 90 degrees
clockwise.
Key No. SK1-1
87.08
44.5± 0.5
RECEIPT JOURNAL
Unit : mm
37.87
44.5± 0.5
3.56 3.56 3.56 37.87
4.2
3.56
70
130 ~ 210
87.08 (PRINT AREA)
20
22
Unit : mm
5B/8C
Bill compartments
Coin compartments
Bill separator
5B/5C
For "U" Version For "A" Version
