ASSEMBLY INSTRUCTIONS

9

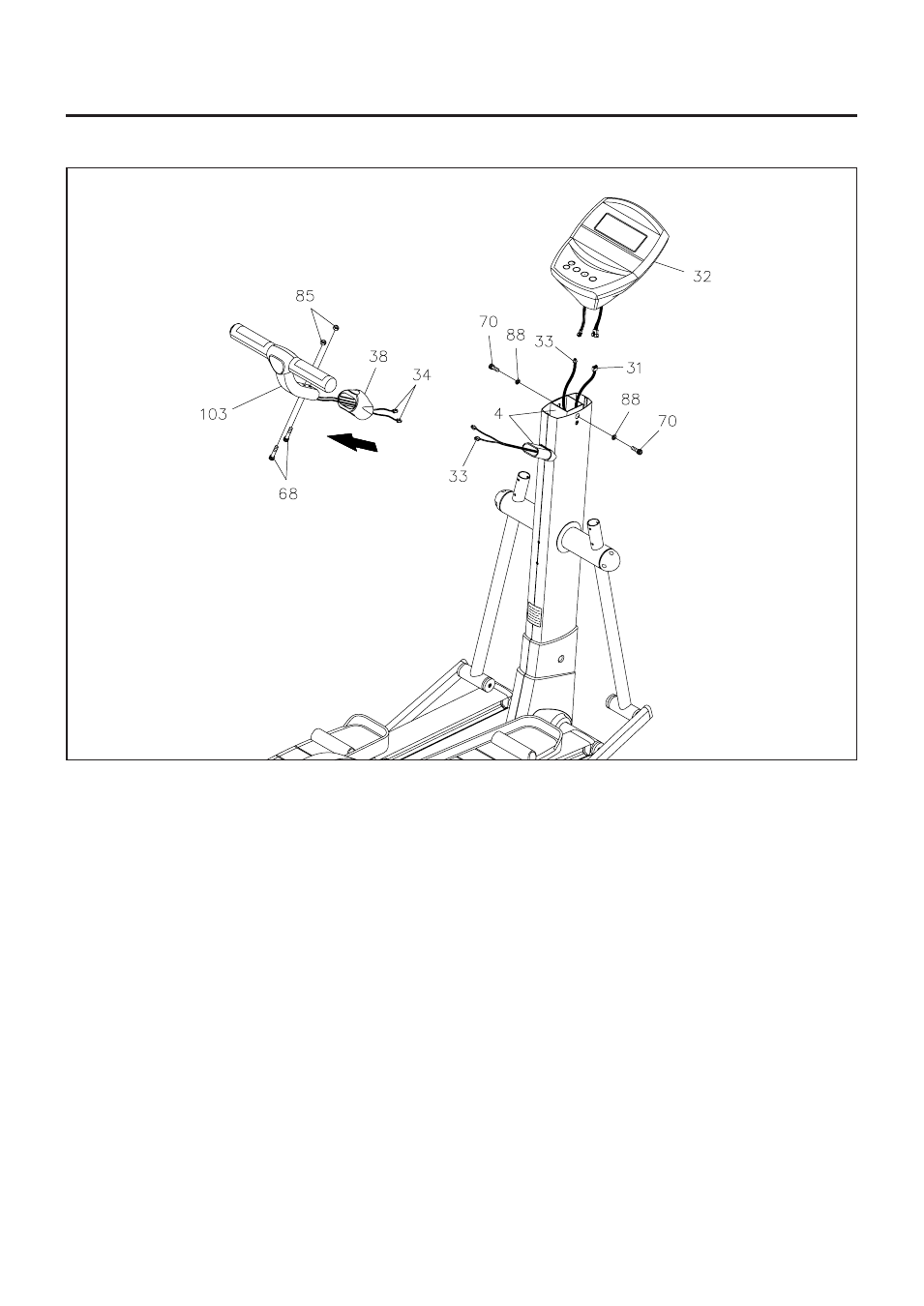

STEP 7

Slide the

STATIONARY HANDLEBAR SLEEVE(38)

onto the

STATIONARY HANDLEBAR(103).

Connect the

PULSE SENSOR WIRES(34)

to the

PULSE WIRE(33).

Insert the

STATIONARY

HANDLEBAR(103)

onto the

UPRIGHT(4)

and secure with

SOCKET HEAD BOLTS(M8 x 35mm)(68)

and

NYLOCK NUTS(M8)(85).

Slide the

STATIONARY HANDLEBAR SLEEVE(38)

down to cover

the bolts on the

STATIONARY HANDLEBAR(103).

STEP 8

Connect the

UPPER CONNECTION WIRE(31)

and the

PULSE WIRE(33)

to the

COMPUTER(32).

Attach the

COMPUTER(32)

onto the

UPRIGHT(4)

by inserting the

BRACKET

in the

COMPUTER(32)

into the

UPRIGHT(4)

and secure with

SOCKET HEAD BOLTS(M8 x 25mm)(70)

and

LOCK

WASHERS(M8)(88).
