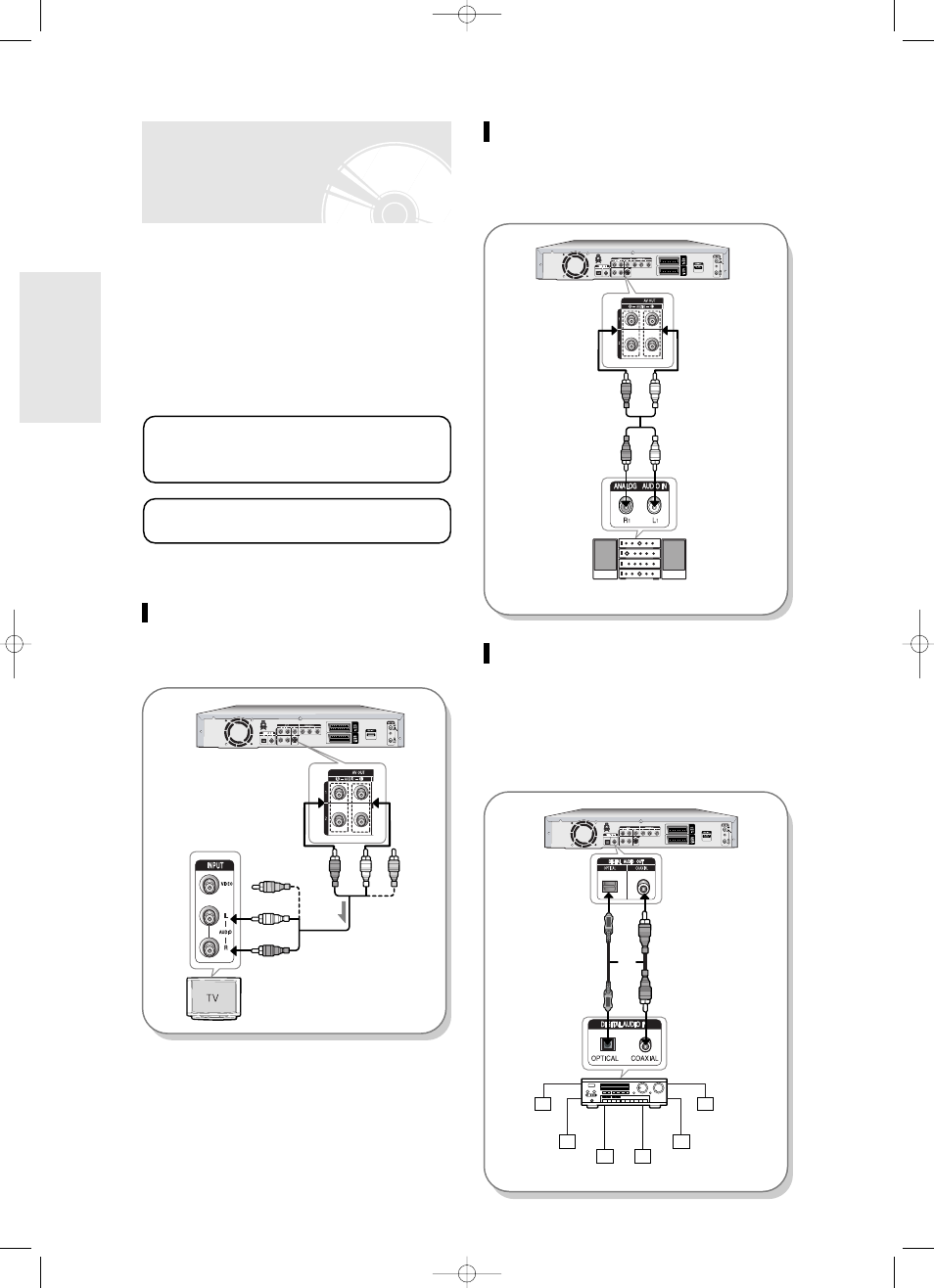

Case 3: Connecting to an AV
amplifier with a digital output jack
If your AV amplifier has a Dolby Digital, MPEG2 or
DTS decoder and a digital input jack, use this
connection. To enjoy Dolby Digital, MPEG2 or DT S
sound, you will need to set up the audio settings.
(See page 33)
There are several ways to output audio signal not using
scart cables. Select the audio connection that best suits
you below.
● Case 1 : Connecting to your TV
● Case 2 : Connecting to a stereo amplifier with AV
output jacks
● Case 3 : Connecting to an AV amplifier with a
digital output jack
Case 1 : Connecting to your TV
If your TV has audio input jacks, use this connection.
Other type of connecting
the Audio output cable
Manufactured under license from Dolby
Laboratories. “Dolby” and the double-D symbol
are trademarks of Dolby Laboratories.
“DTS” and “DTS Digital Out” are trademarks of
Digital Theatre Systems, Inc.
yellow
white
red
yellow white red
Case 2 : Connecting to a stereo
amplifier with AV output jacks
If your stereo amplifier only has AUDIO INPUT
jacks(L and R), use the AUDIO OUTjacks.
white red
white red
Front(L)
speaker Front(R)
speaker
or
Rear(L)
Front(L)
Subwoofer Centre
Front(R)
Rear(R)
