Section 8

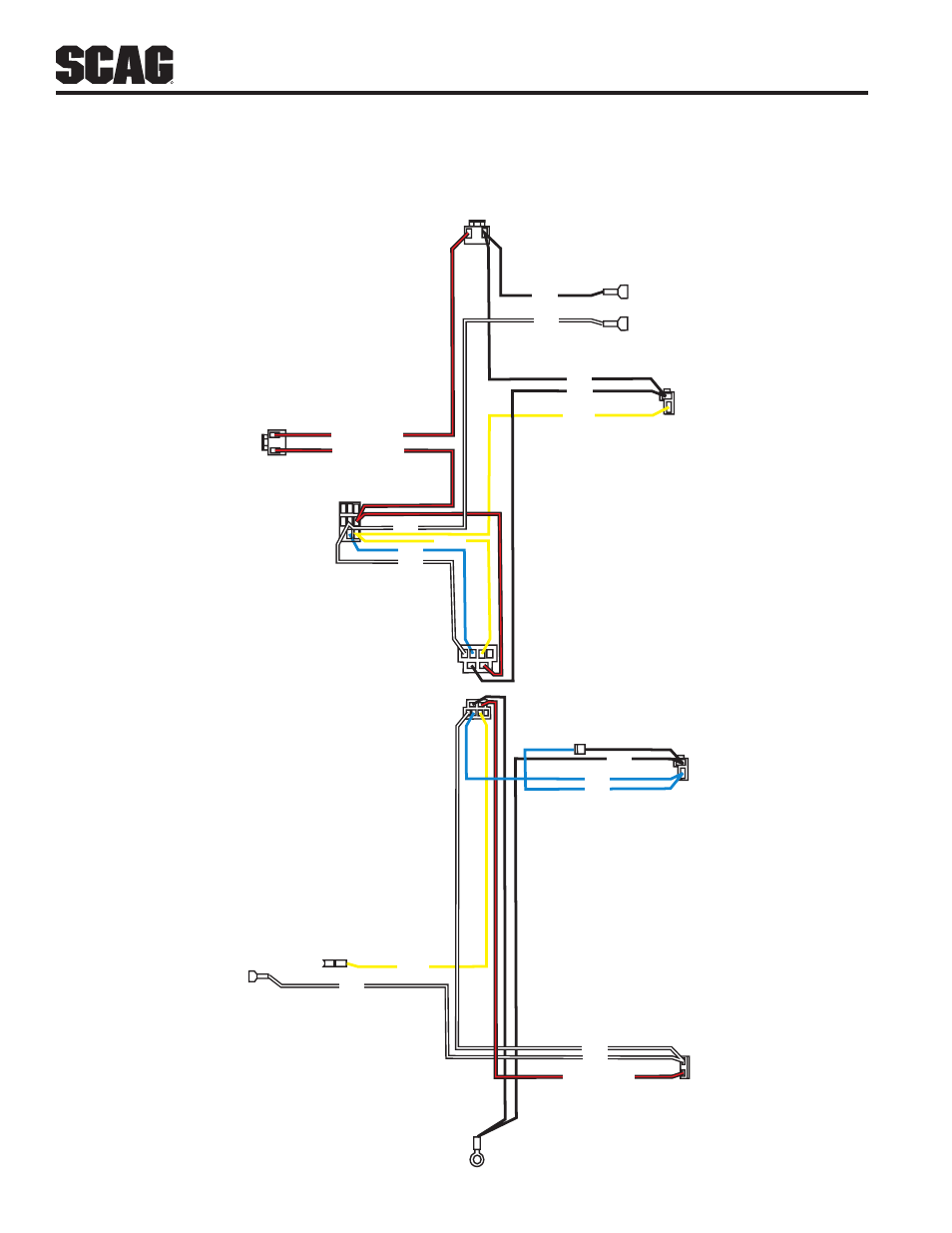

SFW ELECTRICAL SCHEMATIC
Operator
Presence
Switch
Operator
Presence
Switch
MOWER
ENGAGE
TO ENGINE DECK
WIRE HARNESS
HOURMETER
KEY SWITCH
ENGINE MAG KILL
ENGINE CHARGE
GROUND
NEUTRAL
SWITCH
CLUTCH
TO HANDLE BAR
WIRE HARNESS
YELLOW
WHITE
BLUE
BLACK
BLK W/RED STRIPE
BLK W/RED STRIPE
BLACK
BLACK
WHITE
WHITE
YELLOW
YELLOW
WHITE
WHITE
WHITE
BLUE
BLUE
BLACK
BLK W/RED STRIPE
