S I T E P R E P A R A T I O N
Make sure that the finished rough opening
where the Wine Storage unit is to be installed
is properly prepared. Refer to the Installation
Specifications illustration for rough opening
dimensions, door swing clearance and electri-
cal placement for Models ICB427 and ICB427R.
IMPORTANT NOTE: To operate properly, the
door must open a minimum of 90 degrees.
Use a minimum 51 mm filler in corner installa-
tions to assure a 90-degree door opening.
Allow enough clearance in front of the unit for
full door swing.
IMPORTANT NOTE: Make sure the floor under
the unit is level with the surrounding finished
floor.

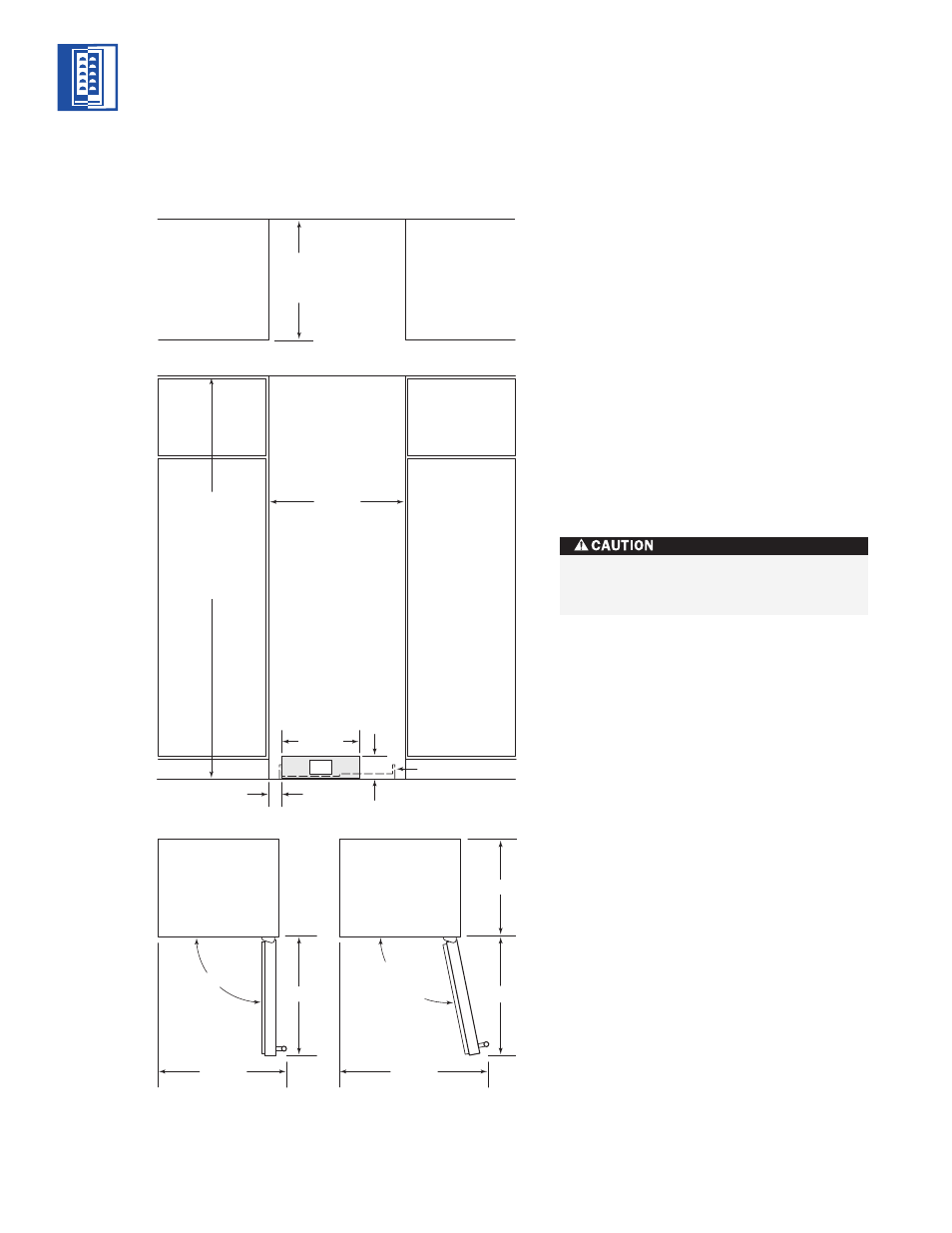

M O D E L S I C B 4 2 7
A N D
I C B 4 2 7 R
I N S T A L L A T I O N
686 mm
ROUGH OPENING WIDTH
635 mm
ROUGH
OPENING
DEPTH
606 mm
90˚
105˚
MAXIMUM
DOOR SWING
889 mm
DOOR CLEARANCE
711 mm
DOOR CLEARANCE
648 mm
648 mm
394 mm
LOCATE ELECTRICAL
WITHIN SHADED AREA
E
114
mm
64 mm
ANTI-TIP BRACKET
FRONT VIEW
TOP VIEW
2032 mm
ROUGH OPENING
HEIGHT
TO FINISHED
FLOORING
2019 mm
MIN HEIGHT
REQUIRED
Do not load wine into the Wine Storage
unit until the installation is complete.
M O D E L S I C B 4 2 7
A N D
I C B 4 2 7 R
I N S T A L L A T I O N S P E C I F I C A T I O N S
NOTE: Door swing clearances are based on stainless
steel door and handle dimensions.
M O D E L S
I C B 4 2 7
I C B 4 2 7 R
