3.3.3.8 Audio in/out connections
There are 4 RCA audio in and 12 D-SUB audio in.
All 16 audio sources can be monitored through a single output.

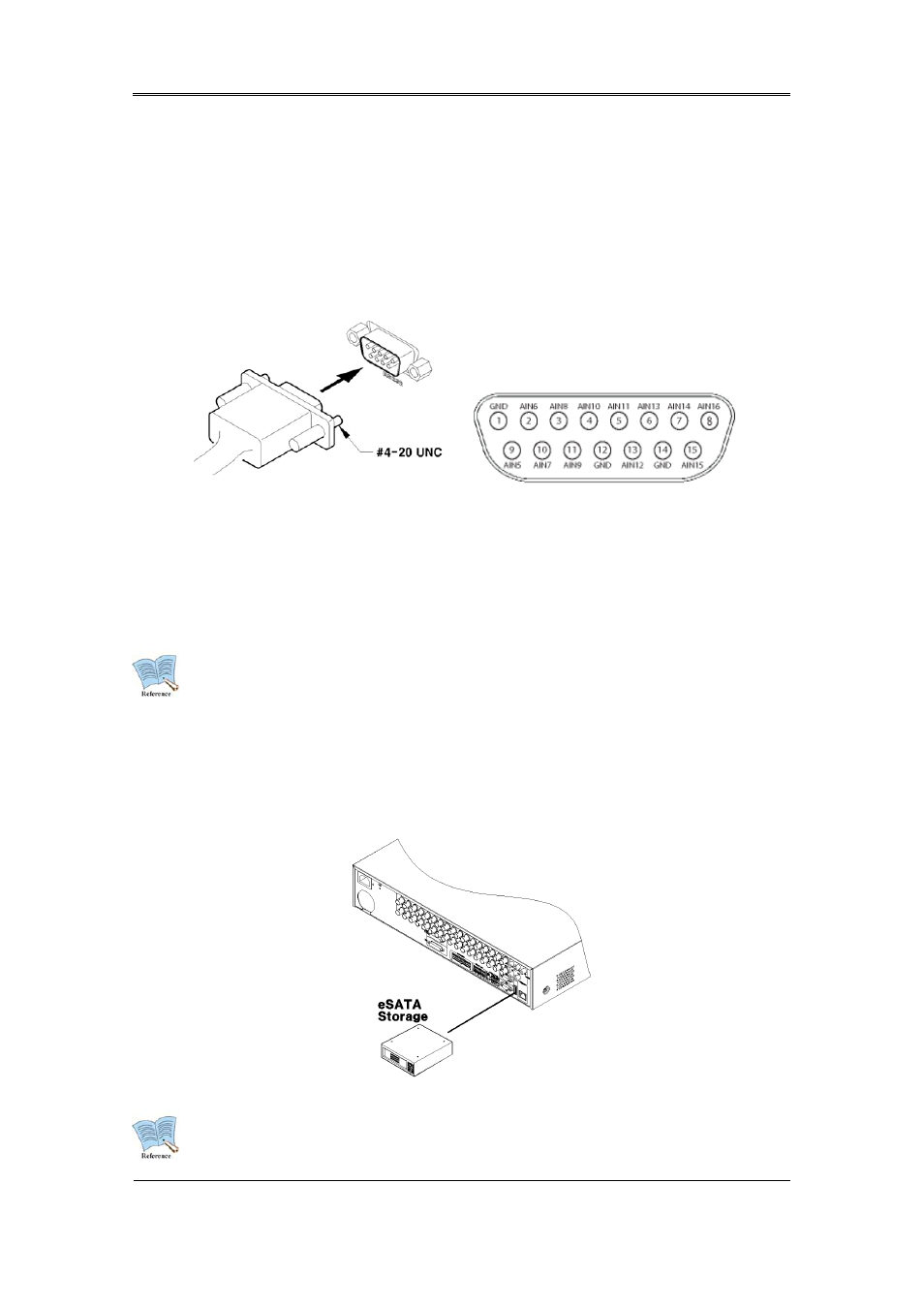

The 12 D-SUB audio inputs use terminals 5 ~ 16 and are connected as shown in the following
figure.
3.3.4 External Storage connections
3.3.4.1 eSATA Port
One eSATA external storage device can be connected through the eSATA port in the back of the
DVR unit for a maximum of 8TB of storage space.
The eSATA port only supports the “SVS-5E” eSATA external HDD from Samsung
Techwin.
3.3.4.2 eSATA device connection
Use the eSATA port in the back of the DVR unit to connect your SVS-5E external HDD. External
storage requires its own power source as the DVR unit does not supply power to it.
Since some external devices may not be recognized if connected with the DVR
unit on, the following procedure should be followed.
