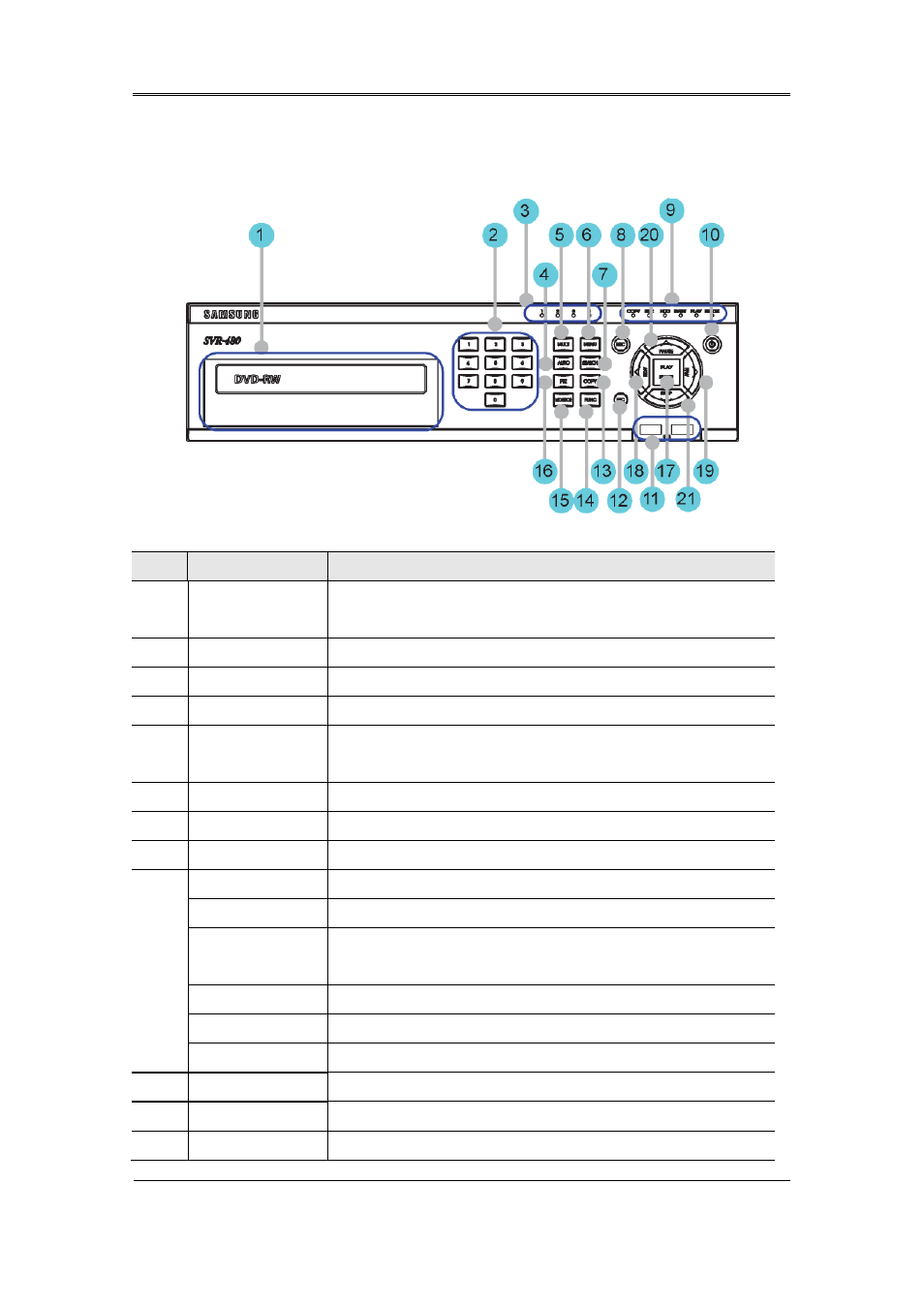

2.2.1.5 SVR-480
No Classification Function
1
DVD-Multi for
copying
For copying recorded video and images to DVD/CD optical
media.
2 Channel button Selects channel in live feed or playback
3 Channel LED Shows the data input and event operation status
4 AUTO Starts or stops user defined sequences.
5 MULTI Changes split-screen sections for live video feeds or
playback.
6 MENU Navigates into the Menu.
7 SEARCH Starts Search mode.
8 REC button Starts or stops manual recording
9
REC lamp Lit when recording.
HDD lamp Lit when HDD is working.
NETWORK
lamp
Lit when network is connected.
EVENT lamp Lit when an event is detected.
COPY lamp Indicates copying operation.
PLAY lamp Lit when copying.
10 Power button Turns on or off the device.
11 USB1, USB2 USB ports for external devices (mouse, USB memory stick).
12 ESC button The Escape button navigates up the menu tree and closes
