Shark VAC-THEN-STEAM MV2010 - Manual (Page 6)

2 TOLL FREE: 1-800-798-7398

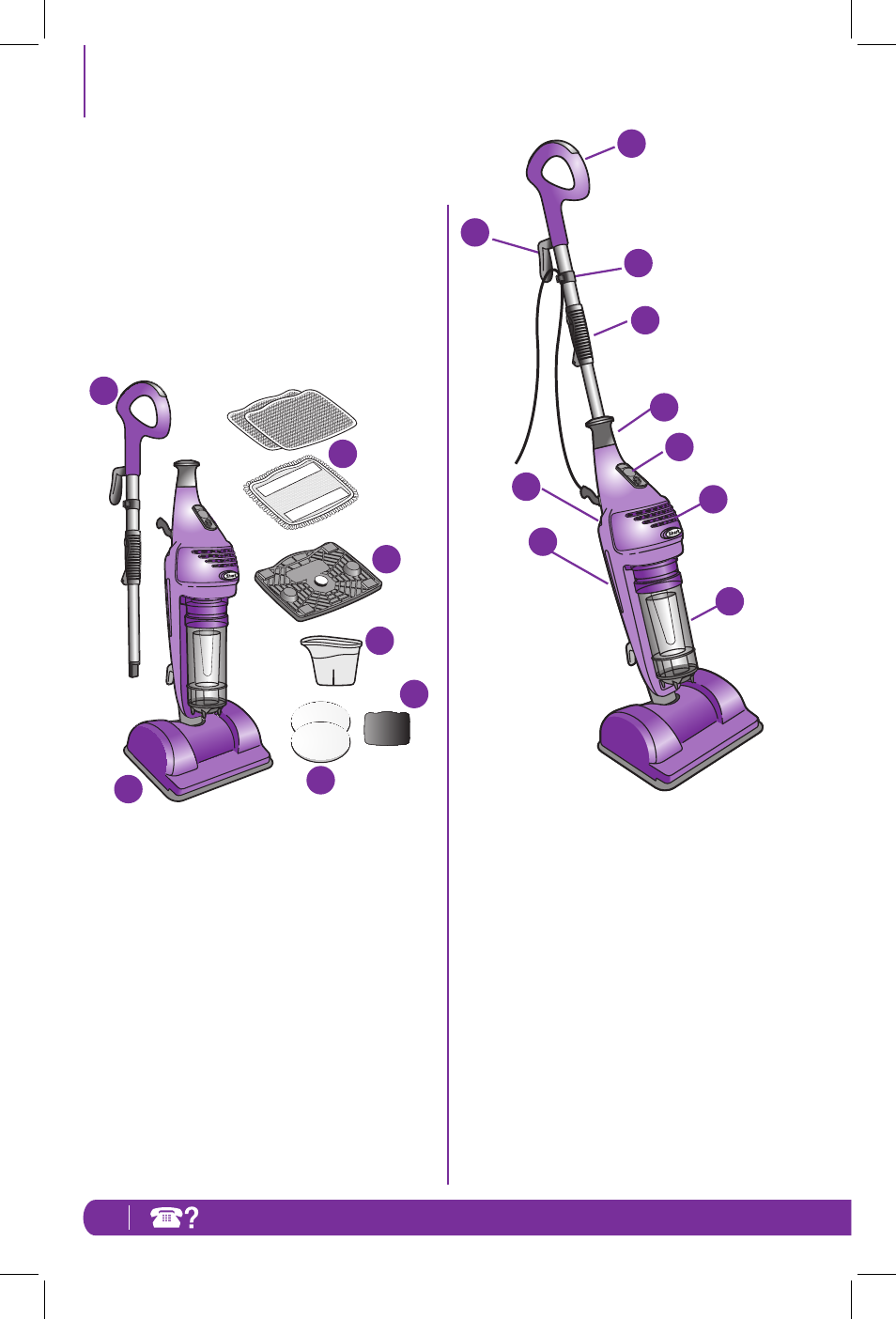

Getting Started: Assembly
When assembling your Vac-Then-Steam™
there may be a little water in or around
the water tank. This is because we
quality test all our Shark products before
distributing them, so you get a quality
Shark
® Vac-Then-Steam™.
h Mop Handle
i Quick Release Swivel Cord Wrap
j Cord Clip
k Telescopic Handle Latch
l Carry Grip
m Vacuum and Steam Mode Panel
n Water Tank Cap
o Water Tank Viewing Window
p Post-Motor Filter Access
q Dust Cup
a Telescopic Handle
b Cleaning Unit with Dust Cup
c 2 All-Purpose Cleaning Pads and
1 Heavy Duty Cleaning Pads
d Steam Frame
e Filling Flask
f 1 Replacement Post-Motor Filter
g 1 Replacement Dust Cup Filters Set
b
a
d
g
f
e
i
h
k
l
m
q
p
o
n
j
c
