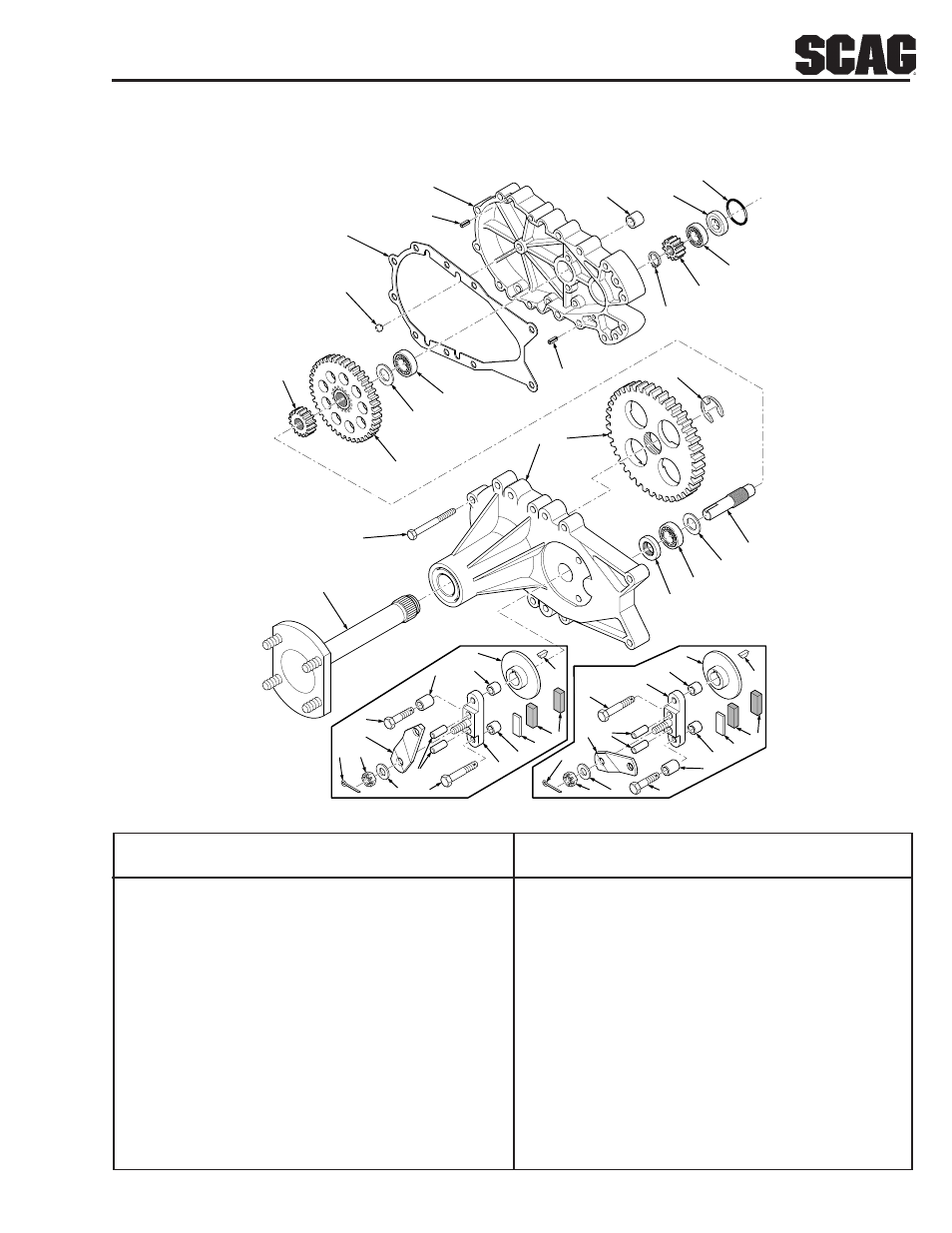

AXLE ASSEMBLY
SC225G
11
13
8
15
18
19
22
21
20
6 16
3 1
12
2
7
8
9
10
5
4
17
16
14
31
26
35
30
33
34
29 28
32
27
26
25
24
36
23
25
24
26
35
34 29 30
31
32 33
28
27
26
36
23
BRAKE ASS'Y.
FOR
MODEL # 481097
BRAKE ASS'Y.
FOR
MODEL # 481098
Ref. Part
No. Number
Description
20 HG44232 Ball Bearing, 15mm x 35mm x 11mm
21 HG44353 Input Gear, 11 Tooth
22 HG44354 Retaining Ring
23 HG44143 Key, Hi Pro 3/16 x 5/8
24 HG44132 Puck, Brake
25 HG44134 Plate, Puck
26 HG23770 Brake Spacer
27 HG62589 Brake Yoke Assembly
28 HG44276 Bolt, 1/4-20 x 1-1/2" W/Patch
29 HG44130 Washer, 7/16 x 7/8 OD x .06 HT
30 HG44142 Nut, Castle 5/16-24 PL
31 HG44101 Pin, Cotter
32 HG44127 Pin, Brake Actuating
33 HG44094 Arm, Brake Actuator (LH Assy.)
33 HG44613 Arm, Brake Actuator (RH Assy.)
34 HG44612 Bolt, 1/4-20 x 2-1/2"
35 HG23711 Spacer, Torsion Spring
36 HG44090 Disc, Brake
Ref. Part
No. Number
Description
1 HG62768 Axle Housing Assembly
2 HG44533 Hydro Mount Housing
3 HG44358 Splined 72 Tooth Final Drive Gear
4 HG62681 Axle Shaft Assembly
5 HG44366 Bolt, 1/4-20 x 2-1/2" Hex Head
6 HG44359 E-Ring .875
7 HG50263 Oil Seal, 1.25 x .625
8 HG44147 Ball Bearing, .62 ID x 1.38 x .44
9 HG44371 Washer, HT .62 ID x 1.0 OD x .05 Thick
10 HG44351 Brake Shaft (Splined)
11 HG50419 Splined Reduction Gear, 17 Tooth
12 HG50420 Splined 60 Tooth Gear
13 HG44371 Washer, HT .62 ID x 1.0 OD x .05 Thick
14 HG9001214-3700 Ball, 3/8" Diameter
15 HG50223 Gasket, Housing
16 HG44269 Pin, Spring 3/16" x 1/2" x 12" Long
17 HG23747 Mounting Spacer
18 HG44355 Bearing, Spacer
19 HG50267 O-Ring
