22

R

Section 6

1

2

3 4

A
B

1 2

3 4

A

B

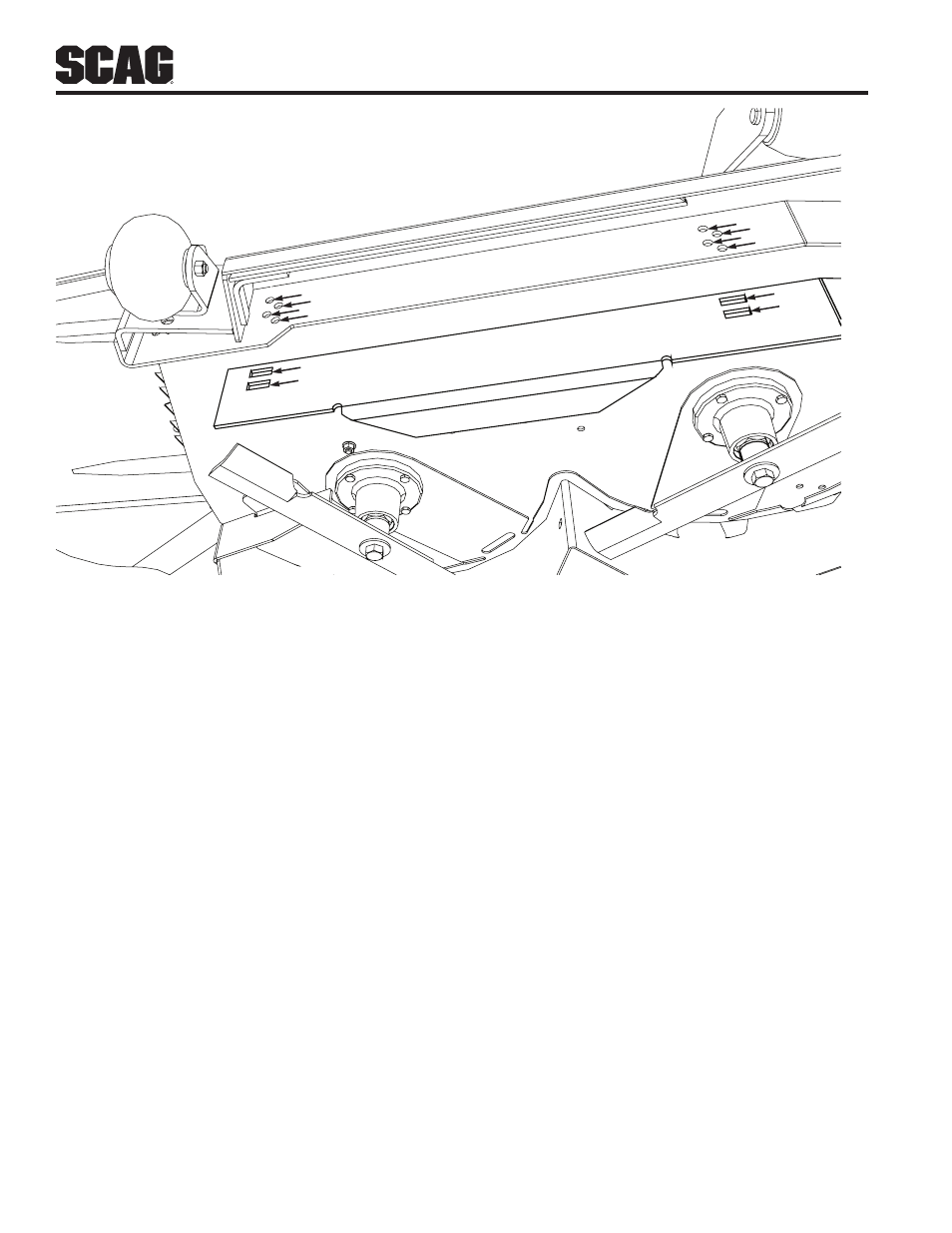

Custom-Cut Baffle Adjustment

Mounting Slot Selected

Mounting Hardware Location

Slot “A”

Hole 1

Hole 2

Hole 3

Hole 4

Height (inches)

3-3/4”

4-1/4”

4-3/4”

5-1/4”

Slot “B”

Hole 2

Hole 3

Hole 4

Height (inches)

3-1/2”

4”

4-1/2”

Custom-Cut Baffle Adjustment

Figure 6-10.
