Swisher ZT2560 - Manual (Page 30)

Item # Description Part #
1 60 ZT Deck Weldment 9901TK
2 5/16-18 x 3/4 Serr flange bolt NB596
3 Belt Cover 6025TK
4 3/8 SAE washer NB272
5 3/8-16 nyloc nut NB182
6 Anti-scalp roller 3/8 ID AS001
7 3/8-16 X 4 Carriage Bolt NB707
8 Deck Hanger 9938TK
9 5/16-18 serrated flange nut NB170
10 Chute mount 6030TK
11 5/16-18 x 8 1/2 HCC GR2 ZP NB136
12 3/8-16 Nyloc Nut ZY NB182
13 Torsion spring- bent leg 9100
14 Discharge Chute 9902TK

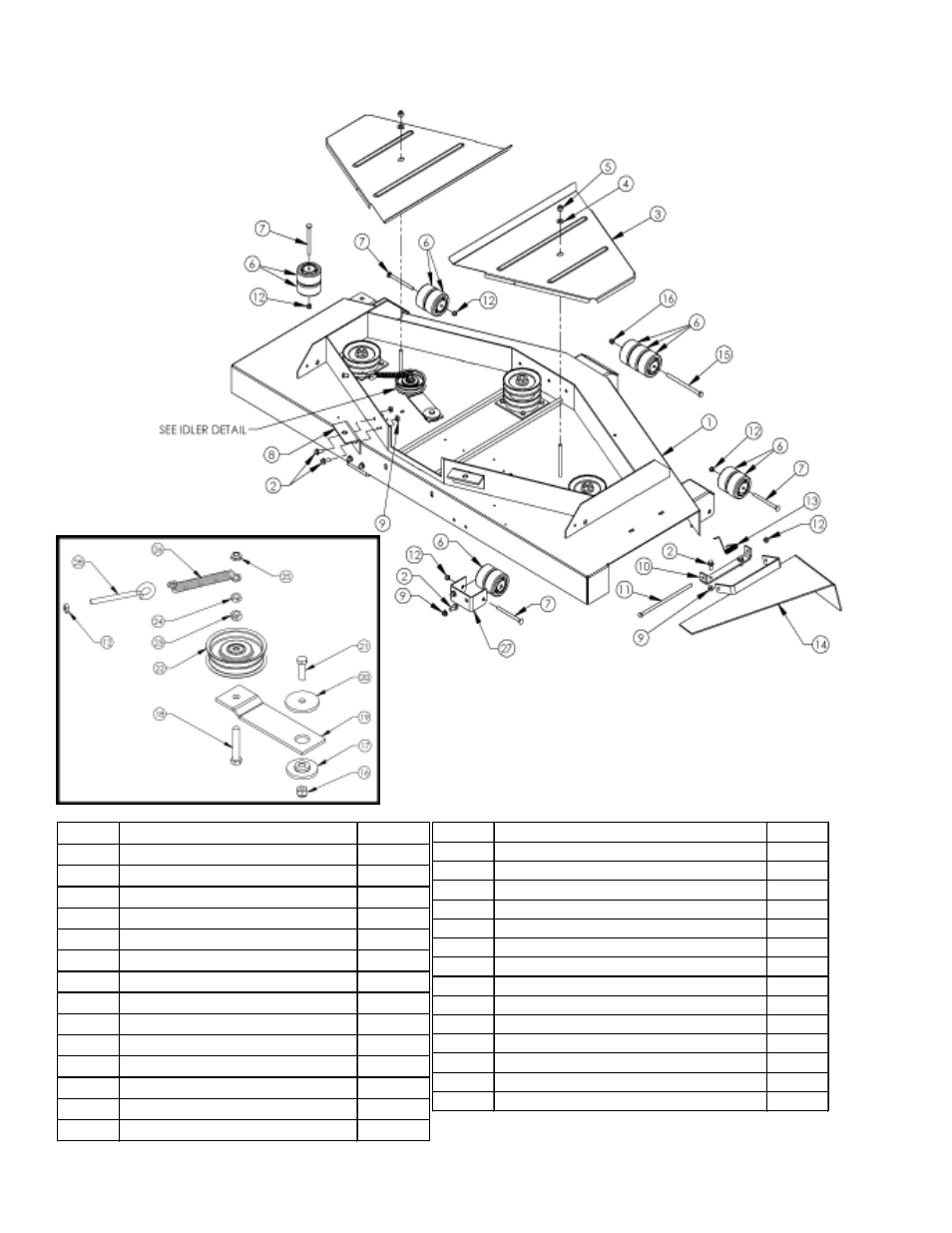

PARTS BREAKDOWN
Item # Description Part #
15 3/8-16 x 5 1/2 GR5 ZP NB575
16 3/8-16 nyloc nut NB182
17 Idler Bushing 6037
18 3/8-16 x 2 1/4 HTC GR5 ZP NB693
19 Idler Arm -painted 6041TK
20 Idler Spacer 6040
21 3/8-16 x 1 1/2 HCC GR5 ZP NB107
22 Idler Pulley OD 3.25, ID 3/8 B527
23 3/8-16 2-way lock nut NB280
24 3/8-16 Jam nut NB174
25 3/8-16 Nylock nut Jam NB207
26 Two speed spring (A232 1998) TZ2S
27 Rear Roller Bracket 10775
28 5/16-18 x 3 1/2 Center of Eye-5/8 Eye NB315
30 30
IDLER DETAIL
