Swisher ZT2560 - Manual (Page 27)

Item # Description Part #
1 25HP B&S Engine N/A
2 Frame Pan 9999TK
3 Lift Support Plate (right) 9937TK
4 Lift Support Plate (left) 9936TK
5 1/3-13 X 2 GR5 Bolt NB509
6 2 1/2 Cable Pulley 10211
7 1 1/2 Cable Pulley 5542
8 1/2-13 Nut NB213Z
9 1/2-13 Nyloc Nut NB281
10 Lock Plate 9922TK
11 5/16-18 X 3/4 Serrated Flg Bolt NB596
12 5/16-18 Jam Nut NB173
13 5/16-18 X 1 1/4 Serrated Flange Bolt NB253
14 Rear Deck Lift Cable 9947
15 Linkage Tab 9958TK
16 Deck Lift Weldment 9933TK
17 5/16-18 Nyloc Nut NB181
Item # Description Part #
18 Front Deck Lift Cable 9948
19 Height Adjust Handle 9952TK
20 Height Adjust Handle Grip 7826
21 Front Handle Cover 9941TK
22 5/16-18 X 2 1/2 GR5 Bolt NB138
23 5/16-18 X 3 GR2 Bolt NB563
24 5/16 SAE Washer NB275
25 Deck Lift Handle Spring 10535
26 5/16-18 Serrated Flange Nut NB170
27 5/16-18 X 1 1/2 Serrated Flange Bolt NB252
28 Solenoid Bracket Painted 9913TK
1
2
16
19
20
21
23
24
22
25
14
15
18
3
27
28
8
10
13 12 14 17
6
26
4
7 11
9
5

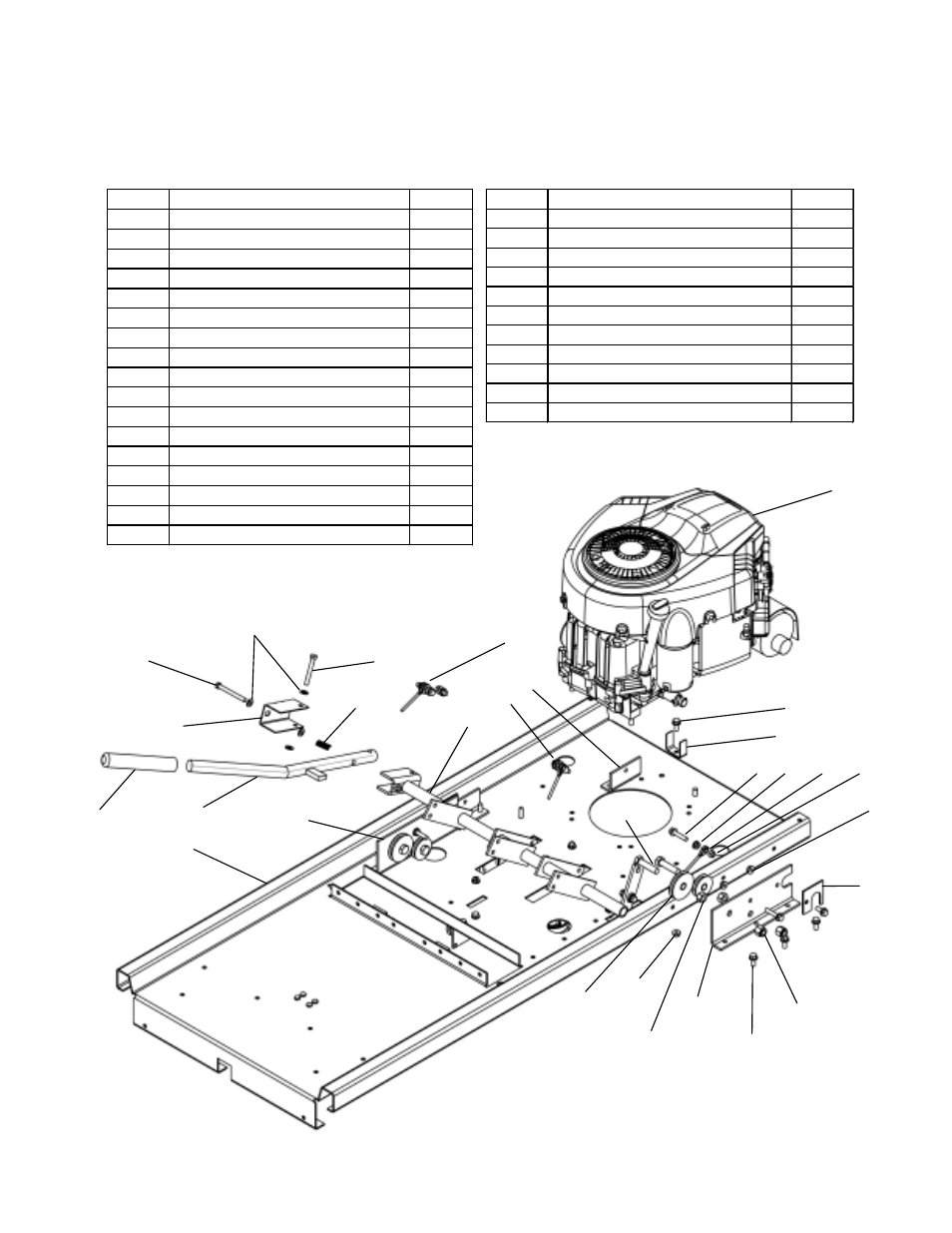

PARTS BREAKDOWN
27 27
