SERVICE & ADJUSTMENTS
Seat Adjustment
Engine to Deck Belt
Apply parking brake
Lower the deck to its lowest position
Disconnect tension idler
Remove belt from the mower deck and the
electric clutch
Removal
Install new belt by placing it around
the electric clutch and route it through
the idler and around the deck pulley.

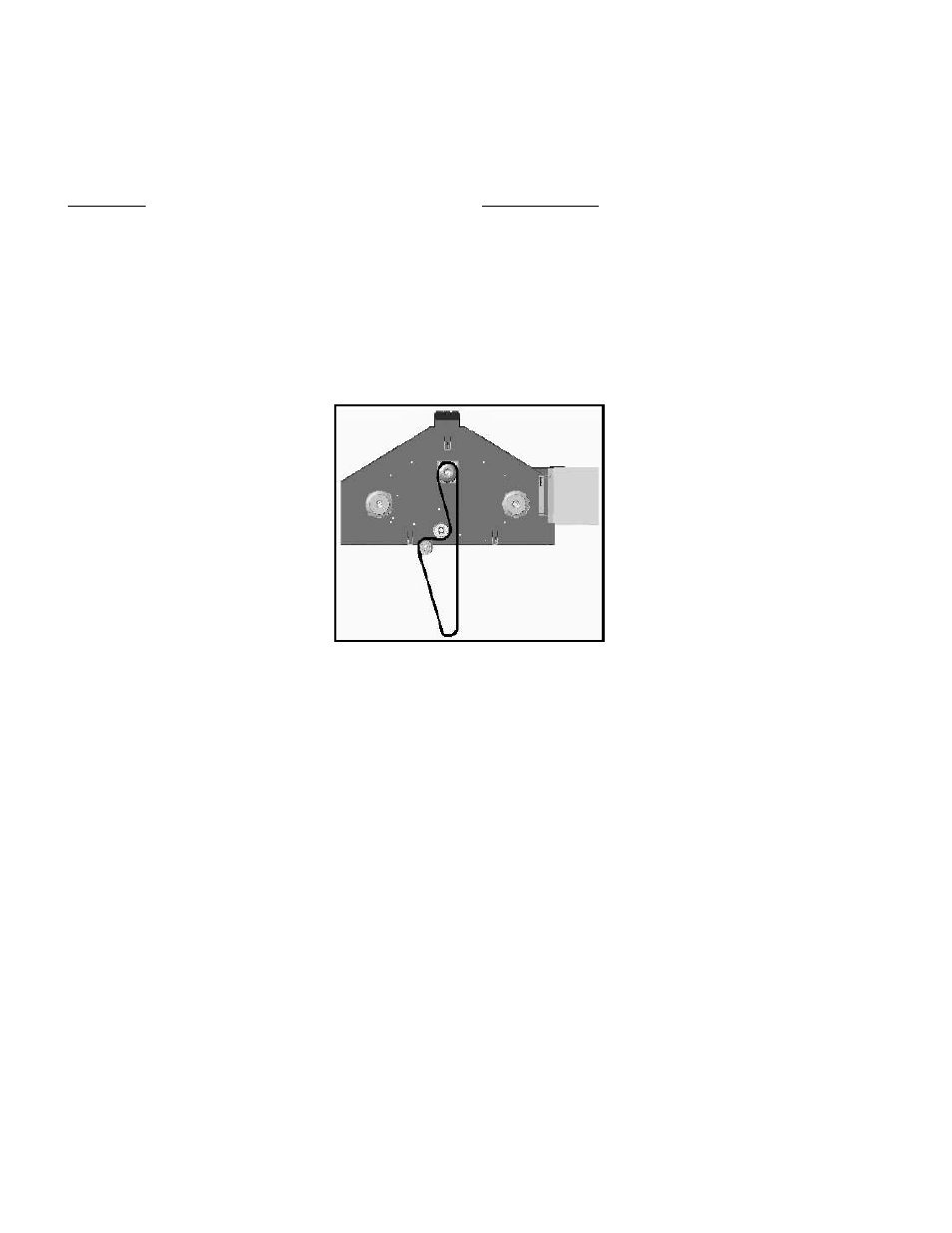

Refer to routing diagram below.
The belt will be loose at this time
Tightly secure the belt tension back
to its original position
Replacement
To improve the tracking of the Swisher ZT2560 the speed of one of the rear wheels needs to
be decreased. If the ZT2560 pulls to the right the left wheel will need to decrease speed and if
pulling to the left the right wheel will need to decrease speed.
To decrease the speed in one of the rear wheels turn the bolt (item 40) counter clockwise.
This will limit travel of the handle. Ensure after the bolt has been moved that the nuts holding
the bolt in place are securely tightened.
The Swisher ZT2560 is equipped with a 6” range sliding seat.
Release the tension on the seat adjustment lever by pushing
the yellow tip lever to the left. See features section in this manual
Using your own weight, slide the seat to the desired position
Release the lever
Travel Reduction Adjustment (Ref. Page 29)
