10 | Sub-Zero Customer Care 800.222.7820
MODEL 424G / 424FSG INSTALLATION
DOOR CLOSED
UNDERCOUNTER
UNIT
ADJACENT
CABINETRY
3 / 4 " (19) DOOR PANEL
1 / 2 "
(13)
1 / 8 " (3)
HINGE DETENT
AT 145° OPENING
(DOOR OPENS PAST 145°)
1 / 4 " (6)
1" (25) 0"
SCALE

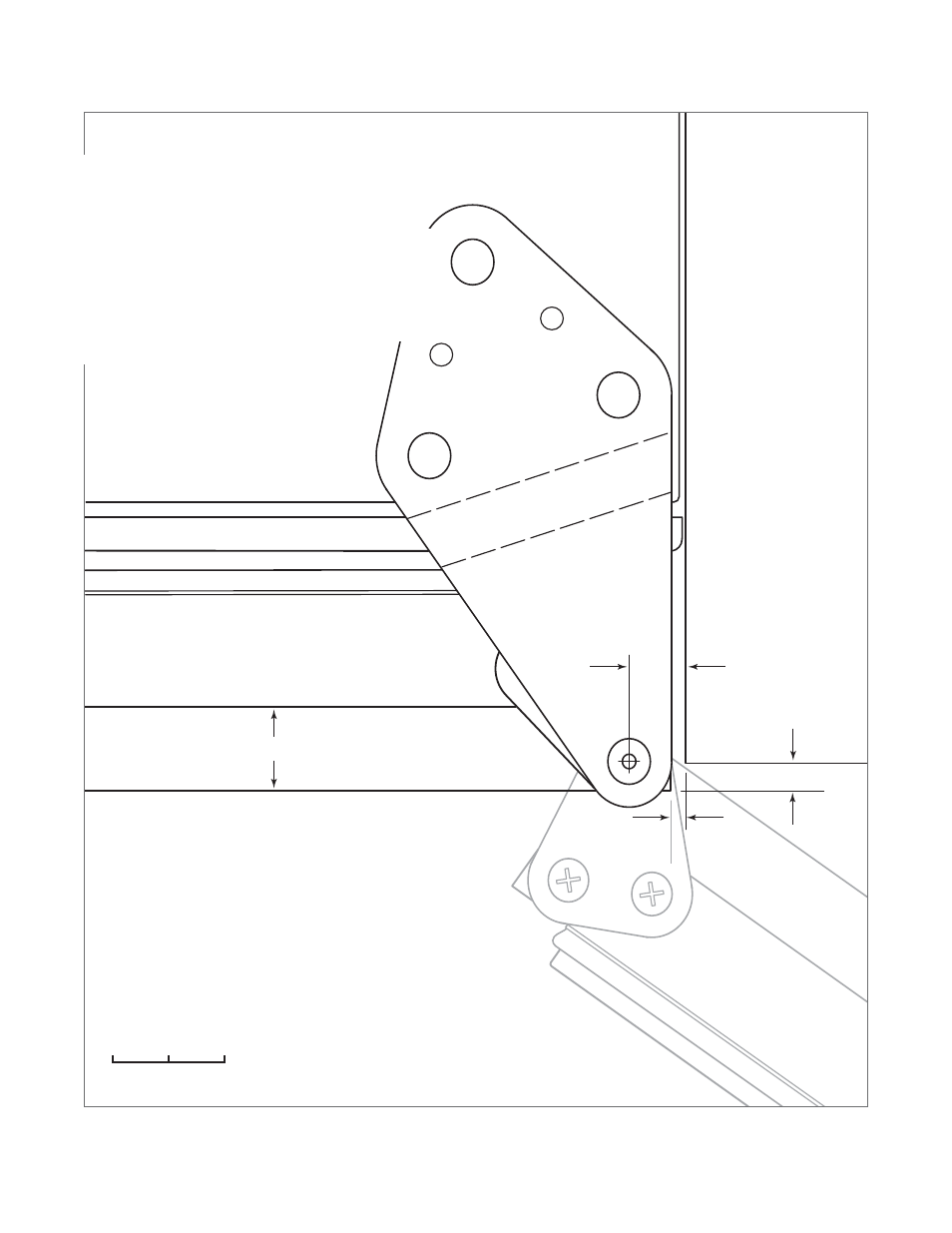

145° door opening (top view).
Door Clearance
FULL-SCALE TEMPLATE
To allow for a 145° door opening, the unit should extend
a minimum of
1 / 4 " (6) beyond the front surface of adja-
cent cabinetry. The unit can be installed flush, however,
there is potential for interference with the panel if the
door is opened past 90°.
