27.1.1999
8udh50gb_fm5.fm
2
Product: UDH-50 (Carbox) / YO0702

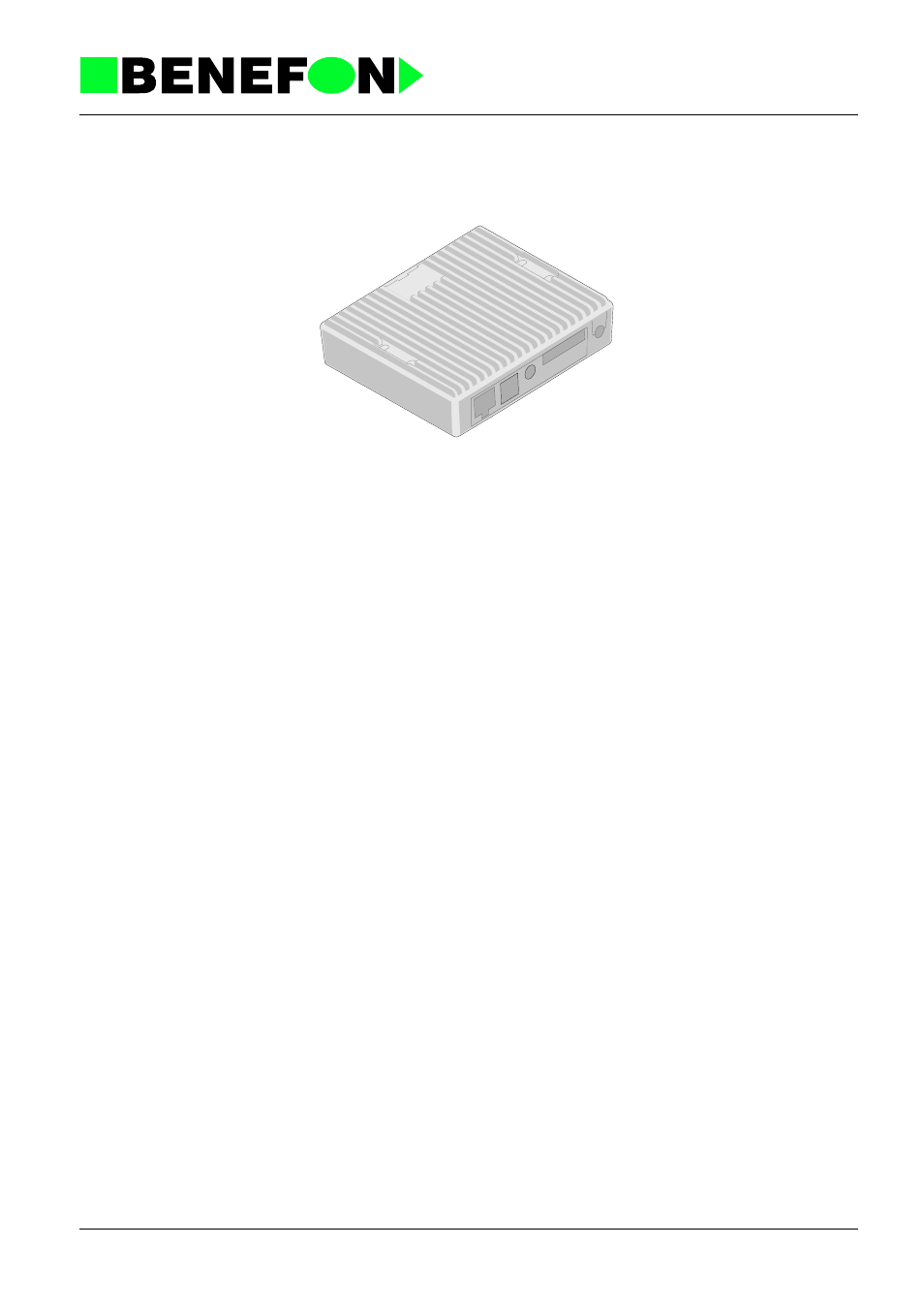

7.1 CARBOX UDH-50
YO0702
7.1.1 Including attached functions
- power supply filter
- voltage regulators
- processor controlled battery charger
- controls for external relays (AL, MUTE)
- handsfree amplifiers
- PC/AUX-connector
- handset connector
- integrated branching unit
7.1.2 Connector descriptions
7.1.2.1 EXTVB V100
1
MUTE
car radio
mute
max. 500 mA
2
GND
speaker
ground
3
GND
ground
4
AL
external
alarm control
max 500 mA
5
HF_SPKR
HF-speaker
4 ohm 1.5 W
6
VBATT
operating
voltage
10.8 - 31 V max 3A
